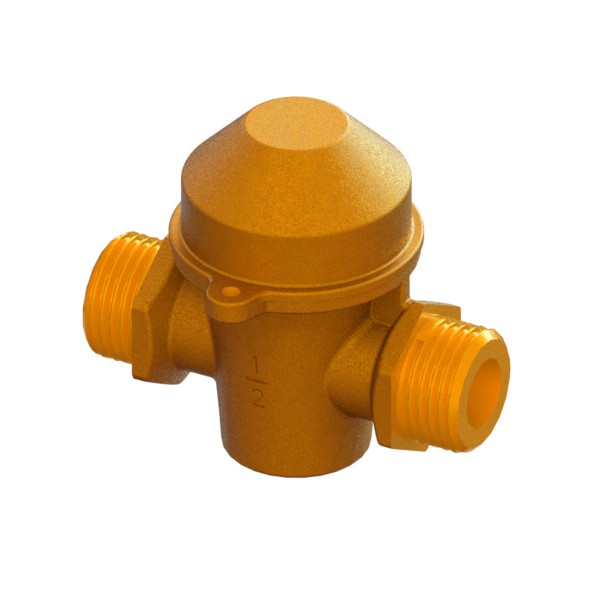

Brass conical plug valve, hydrometric type, with covered sealable square head MALE-MALE
Application WATER
VALVES & COCKS
Conical plug valves
Conical plug valves
| Code | Kg | Box | Master Box | M | F | ØV | L | NA | C | D | Lb | ØB | L1 | Ch1 | Ch2 | Ch3 | Combinazione | L2 | H1 | ØH2 | ØP | H2 | NA | NA | NA | NA | NA | A1 | A2 | Q | PN | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | NA | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 55054100038 | 0,26 | 0,26 | 144 | 0 | 0 | 0 | 77 | 0 | 0 | 0 | 0 | 0 | 13 | 0 | 0 | 0 | M-M | 0 | 43,5 | 0 | 9,5 | 0 | 0 | 0 | 0 | 0 | 0 | G3/8 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | D semplice | 0 | 0 | |
| 55054100050 | 0,27 | 0,27 | 144 | 0 | 0 | 0 | 68 | 0 | 0 | 0 | 0 | 0 | 10,5 | es.24 | 0 | 0 | M-M | 0 | 41 | 19 | 12 | 0 | 0 | 0 | 0 | 0 | 0 | G1/2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | D semplice | 0 | 0 |
