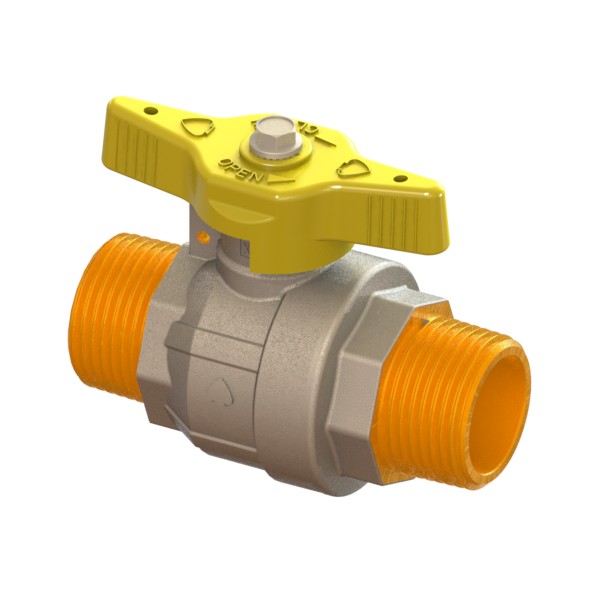

Gas full-bore ball valve, standard series, with yellow sealable T-handle MALE-MALE

Application GAS

VALVES
Full-bore ball valves
Full

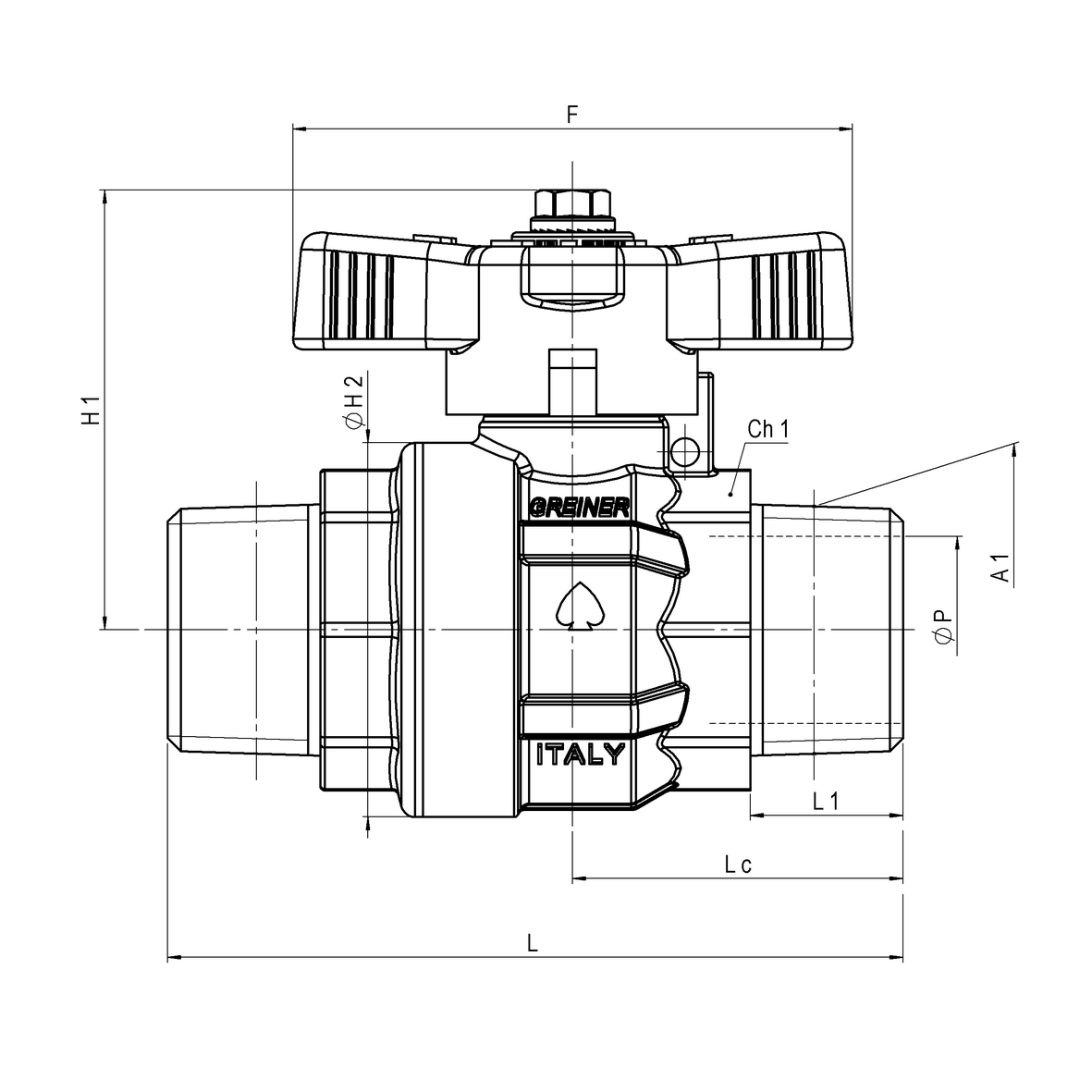

Code	Kg	Box	Master Box	M	F	L	T1	NA	Lb	ØB	L1	L2	Lmax	A1	A2	Combinazione	Q	Lmin	H1	ØH2	ØP	ØDf	i	Ød	nf	Lc	NA	Ch1	Ch2	Ch3	PN-MOP	Kv	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	PCP	cod.	A3	NA	NA
65829400100	0,6	0,6	48	0	80	92,2	0	0	0	0	19,1	0	0	R1	0	M-M	0	0	55	50	25	0	0	0	0	40,6	0	ott.38.5	0	0	--	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	M generico
65829400125	0,88	0,88	40	0	80	104,9	0	0	0	0	21,4	0	0	R1.1/4	0	M-M	0	0	60,5	60	32	0	0	0	0	48	0	ott.47	ott.44	0	--	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	M generico
65829400150	1,33	1,33	24	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
65829400200	2,02	2,02	12	0	110	140,2	0	0	0	0	25,7	0	0	R2	0	M-M	0	0	80	89	50	0	0	0	0	65	0	ott.68	ott.62	0	--	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	M generico

Download scheme
