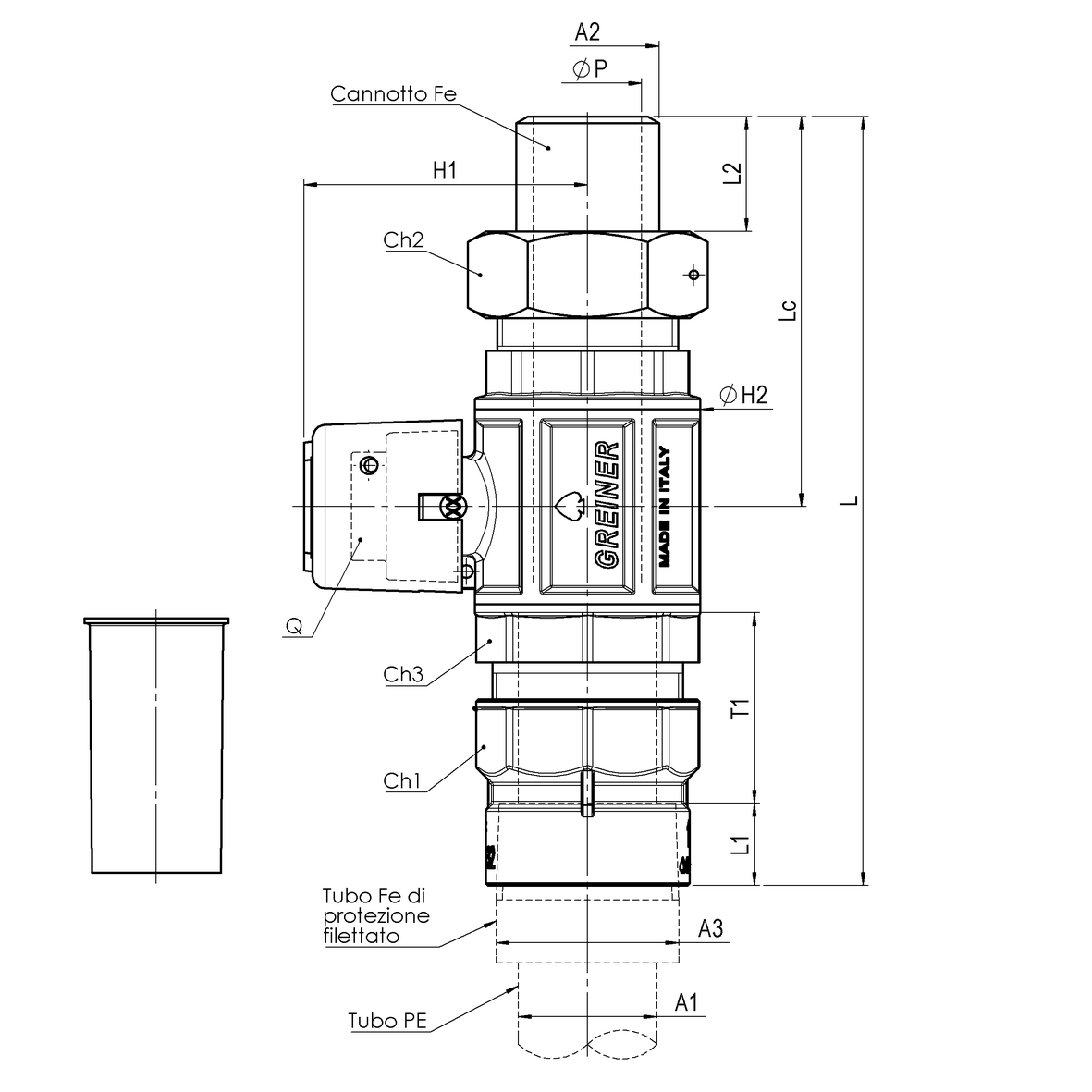

Gas full-bore ball valve, heavy execution, for PE, protected with SDR11 inlet, with yellow sealable cap, PE-FE to be welded
Application GAS
VALVES
Ball valves with compression fitting for PE pipe, with connection for protective pipe FE
Full
Ball valves with compression fitting for PE pipe, with connection for protective pipe FE
Full
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65574900100 | 1,47 | 1,47 | 20 | 0 | 0 | 177,5 | 44 | 0 | 0 | 0 | 19 | 26,5 | 0 | Ø32 | 1 | PE-Fe | 12x25 | 0 | 65,5 | 52 | 25 | 0 | 0 | 0 | 0 | 90 | 0 | ott.48 | es.48 | ott.48 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Rp1.1/4 | 0 | PE protetto con att filett. | |
| 65574900200 | 5,72 | 5,72 | 3 | 0 | 0 | 271,5 | 76 | 0 | 0 | 0 | 30,2 | 30 | 0 | Ø63 | 2 | PE-Fe | 16x30 | 0 | 96,5 | 93 | 50 | 0 | 0 | 0 | 0 | 126 | 0 | ott.88.5 | ott.84 | ott.84 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Rp2.1/2 | 0 | PE protetto con att filett. |
