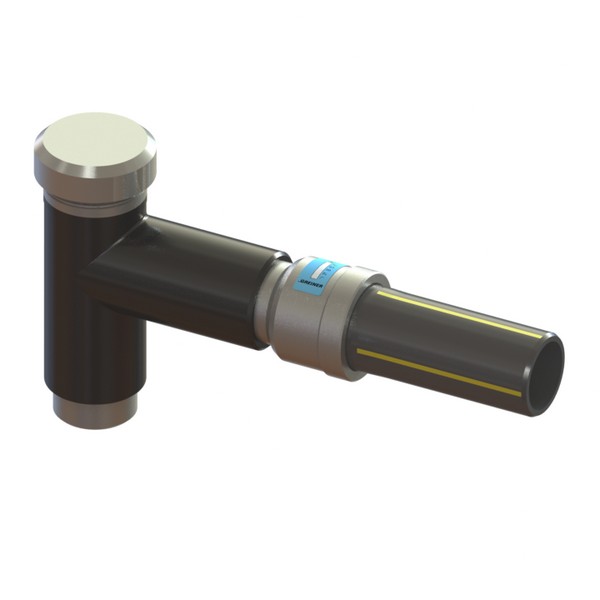

T-connection for covered connection under pressure for low and medium pressure FE to be welded - PE to be welded
Application GAS
FITTINGS
“T” fittings for connection under pressure
“T” fittings for connection under pressure
| Code | Kg | Box | Master Box | NA | L | NA | ØDt | T1 | T2 | Lb | L1 | L2 | Lmax | Combinazione | A1 | A2 | A3 | Lmin | H | ØP1 | ØP2 | ØDf | ØB | ØD1 | ØD2 | NA | i | A4 | Ch1 | Ch2 | Ch3 | Ch4 | Ød | n | nf | NA | NA | NA | NA | NA | NA | NA | PN | PCP | NA | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 34764500100 | 1,4 | 1,4 | 25 | 0 | 237 | 0 | 0 | 0 | 0 | 0 | 20 | 0 | 0 | Fe-PE | 1 | Ø32 | G1 | 0 | 141 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Fe a saldare | PE a saldare | 0 | |
| 34764500125 | 2,08 | 2,08 | 8 | 0 | 260 | 0 | 0 | 0 | 0 | 0 | 20 | 0 | 0 | Fe-PE | 1.1/4 | Ø40 | G1.1/4 | 0 | 170 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Fe a saldare | PE a saldare | 0 | |
| 34764500150 | 2,32 | 2,32 | 8 | 0 | 291 | 0 | 0 | 0 | 0 | 0 | 20 | 0 | 0 | Fe-PE | 1.1/2 | Ø50 | G1.1/2 | 0 | 180 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Fe a saldare | PE a saldare | 0 | |
| 34764500200 | 3,74 | 3,74 | 4 | 0 | 321 | 0 | 0 | 0 | 0 | 0 | 20 | 0 | 0 | Fe-PE | 2 | Ø63 | G2 | 0 | 201 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Fe a saldare | PE a saldare | 0 | |
| 34764500250 | 4,73 | 4,73 | 4 | 0 | 306 | 0 | 0 | 0 | 0 | 0 | 20 | 0 | 0 | Fe-PE | 2.1/2 | Ø75 | G2.1/2 | 0 | 181,5 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Fe a saldare | PE a saldare | 0 | |
| 34764500300 | 7,22 | 7,22 | 2 | 0 | 326 | 0 | 0 | 0 | 0 | 0 | 21 | 0 | 0 | Fe-PE | 3 | Ø90 | G3 | 0 | 204 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Fe a saldare | PE a saldare | 0 |
