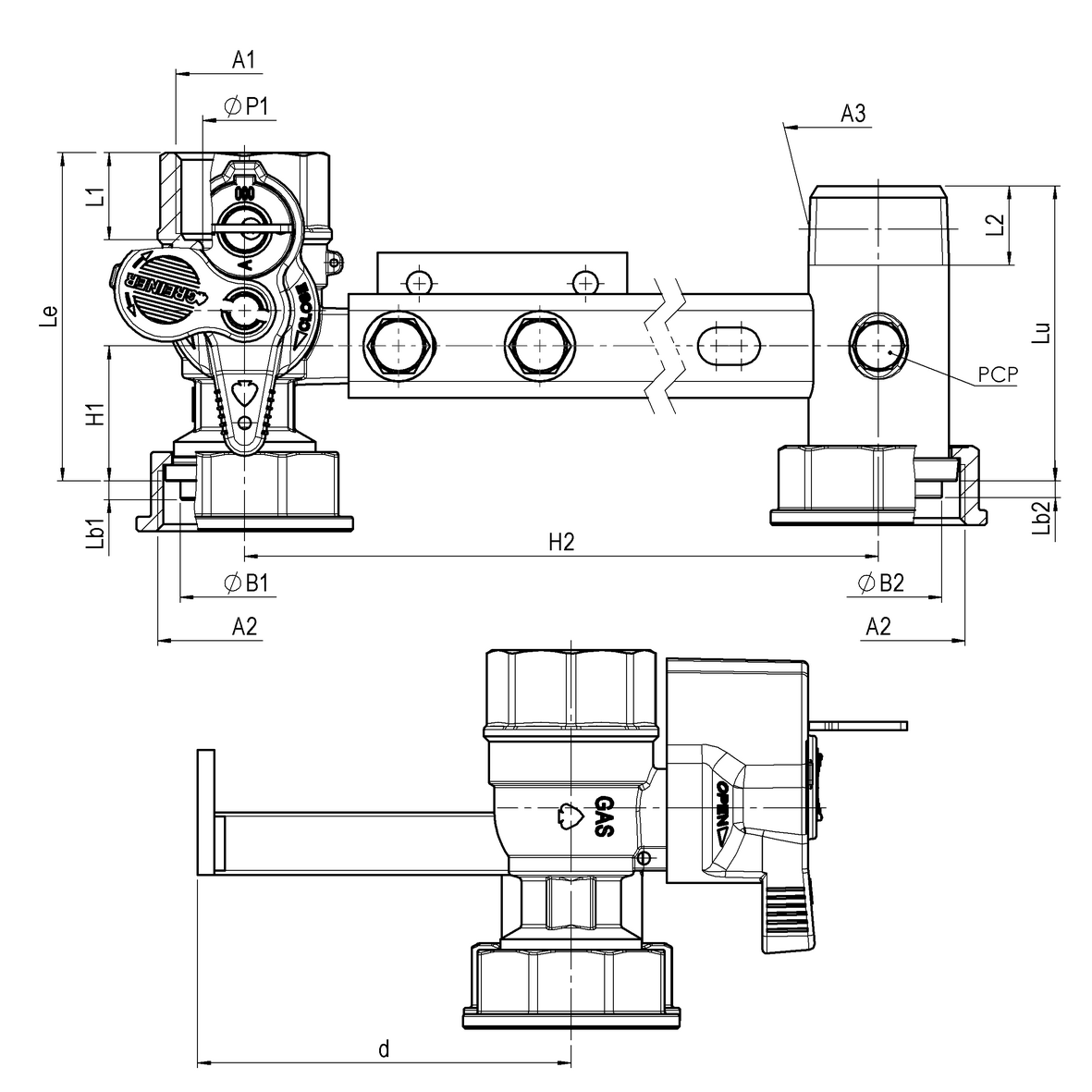

Bracket for gas meter L=250, inlet valve with lock 301 to 340, outlet tail with PCP with support and plate FEMALE-MOVING NUT-MALE
Application GAS
GAS BRACKETS
Gas meter brackets
Gas meter brackets
| Code | Kg | Box | Master Box | M | F | NA | NA | NA | Le | Lu | Lb1 | Lb2 | ØB1 | Combinazione | Tipo Contatore | A1 | A2 | ØB2 | L1 | L2 | H1 | NA | d | ØT | ØP1 | ØP2 | NA | A3 | Q | PN-MOP | PCP1 | PCP2 | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | cod. | H2 | Ch1 | Ch2 | Ch3 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 60160300619 | 1,29 | 1,29 | 20 | 0 | 0 | 0 | 0 | 0 | 79 | 71 | 4,5 | 4 | 31 | F-Gi-M | G4 e G6 | Rp1 | G1.1/4 | 30,5 | 21 | 19,1 | 32,5 | 0 | 90 | 0 | 20 | 0 | 0 | R1 | 0 | MOP 0.5 | R1/8 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 250 | 0 | 0 | 0 |
