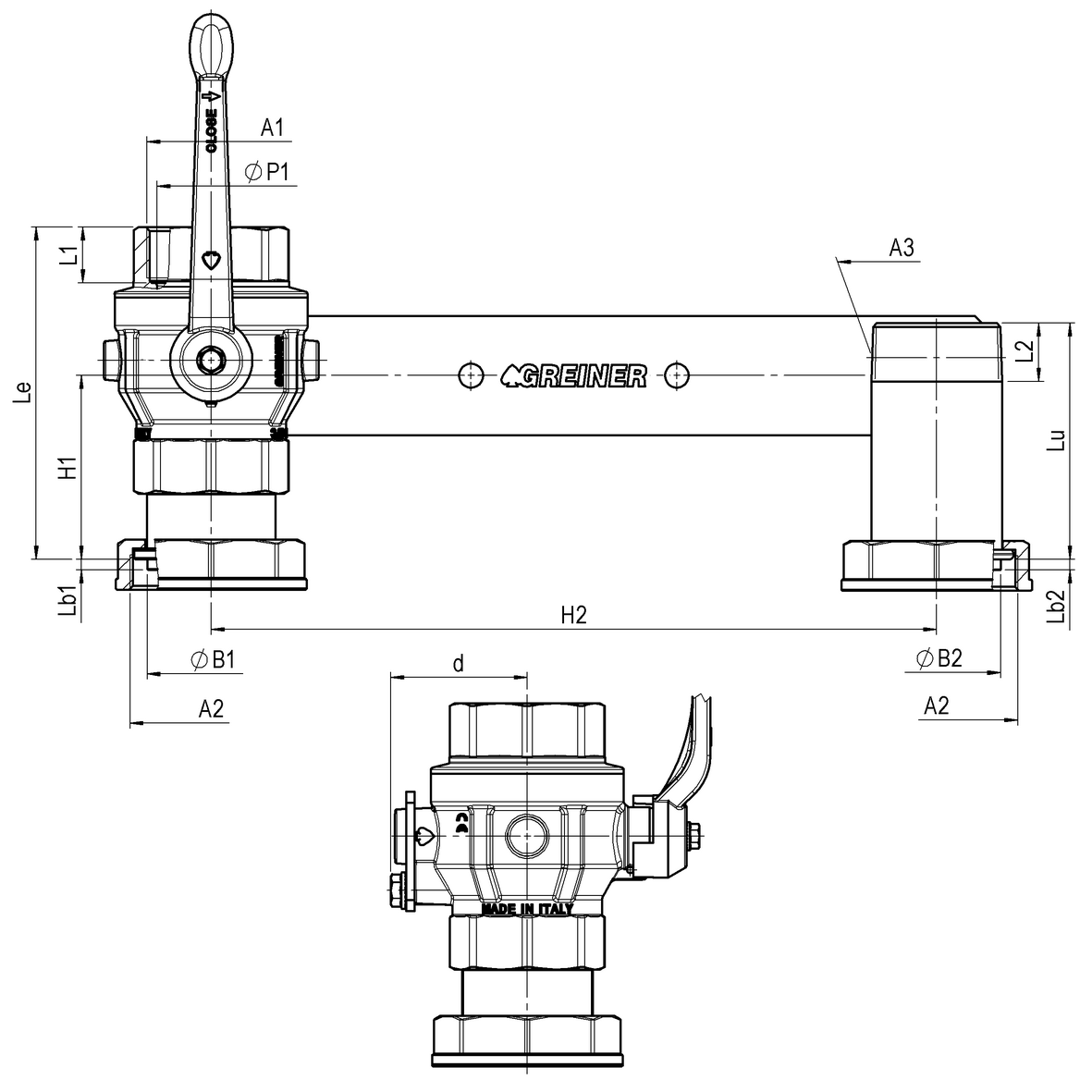

Bracket for gas meter L=335, inlet valve with yellow handle, outlet tail FEMALE-MOVING NUT-FEMALE
Application GAS
GAS BRACKETS
Gas meter brackets
Gas meter brackets
| Code | Kg | Box | Master Box | M | F | NA | NA | NA | Le | Lu | Lb1 | Lb2 | ØB1 | Combinazione | Tipo Contatore | A1 | A2 | ØB2 | L1 | L2 | H1 | NA | d | ØT | ØP1 | ØP2 | NA | A3 | Q | PN-MOP | PCP1 | PCP2 | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | cod. | H2 | Ch1 | Ch2 | Ch3 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65067800625 | 3,13 | 3,13 | 3 | 0 | 0 | 0 | 0 | 0 | 132 | 109 | 5 | 5 | 46,5 | F-Gi-M | G16 x 280 | Rp1.1/2 | G2 | 46,5 | 21,4 | 21,4 | 73 | 0 | 56 | 0 | 40 | 0 | 0 | R1.1/2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 280 | 0 | 0 | 0 | |
| 65067800628 | 4,48 | 4,48 | 3 | 0 | 0 | 0 | 0 | 0 | 153 | 109 | 5 | 5 | 59 | F-Gi-M | G25 x 335 | Rp2 | G2.1/2 | 59 | 25,7 | 25,7 | 84,8 | 0 | 63 | 0 | 50 | 0 | 0 | R2 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 335 | 0 | 0 | 0 |
