Water full-bore, bronze ball valve, heavy execution, with green sealable cap FEMALE-FEMALE

Application WATER

VALVES
Bronze full-bore ball valves
Full

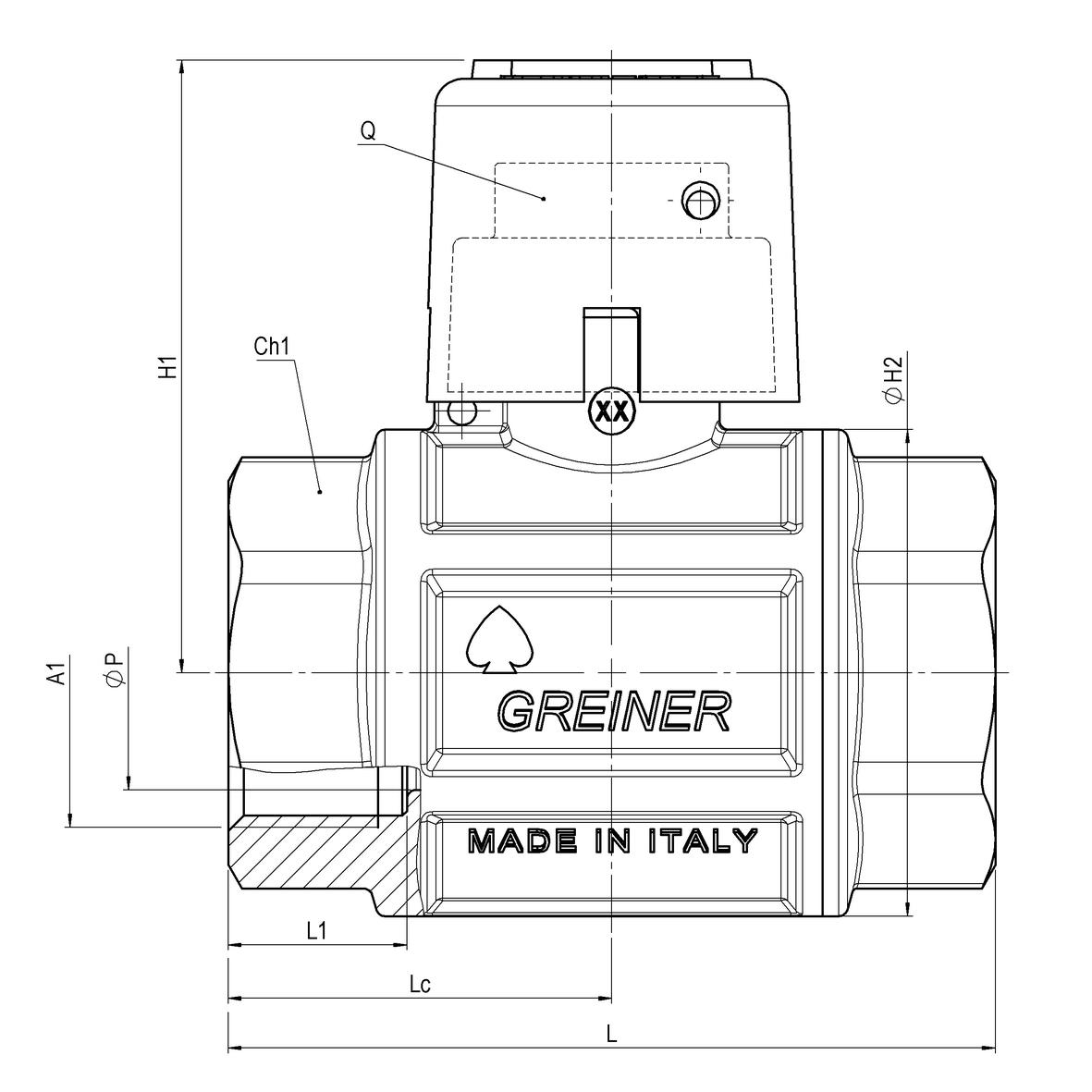

Code	Kg	Box	Master Box	L	L1	A1	A2	Combinazione	Q	H1	ØH2	ØP	Lc	Ch1	Ch2	Ch3	PN-MOP	Kv	PCP	cod.	A3	NA	NA
65480900050	0,29	0,29	100	58,4	15	Rp1/2	0	F-F	12x23	52,7	33	15	29,2	es.27	0	0	PN100	0	0	0	0	0	F generica
65480900075	0,54	0,54	72	68,5	16,3	Rp3/4	-	F-F	12x25	61,4	42,5	20	34,25	es.33	-	-	PN64	-	-	-	-	-	F generica
65480900100	0,8	0,8	40	82	19,1	Rp1	0	F-F	12x25	65,7	52	25	41	es.41	0	0	PN64	0	0	0	0	0	F generica
65480900125	1,12	1,12	20	93	21,4	Rp1.1/4	0	F-F	12x25	76,7	63	32	46,5	ott.50	0	0	PN50	0	0	0	0	0	F generica
65480900150	1,64	1,64	20	105	21,4	Rp1.1/2	0	F-F	12x25	83,7	77	40	52,5	ott.56	0	0	PN50	0	0	0	0	0	F generica
65480900200	2,83	2,83	12	125	25,7	Rp2	0	F-F	16x30	96,7	93	50	62,5	ott.70	0	0	PN40	0	0	0	0	0	F generica
