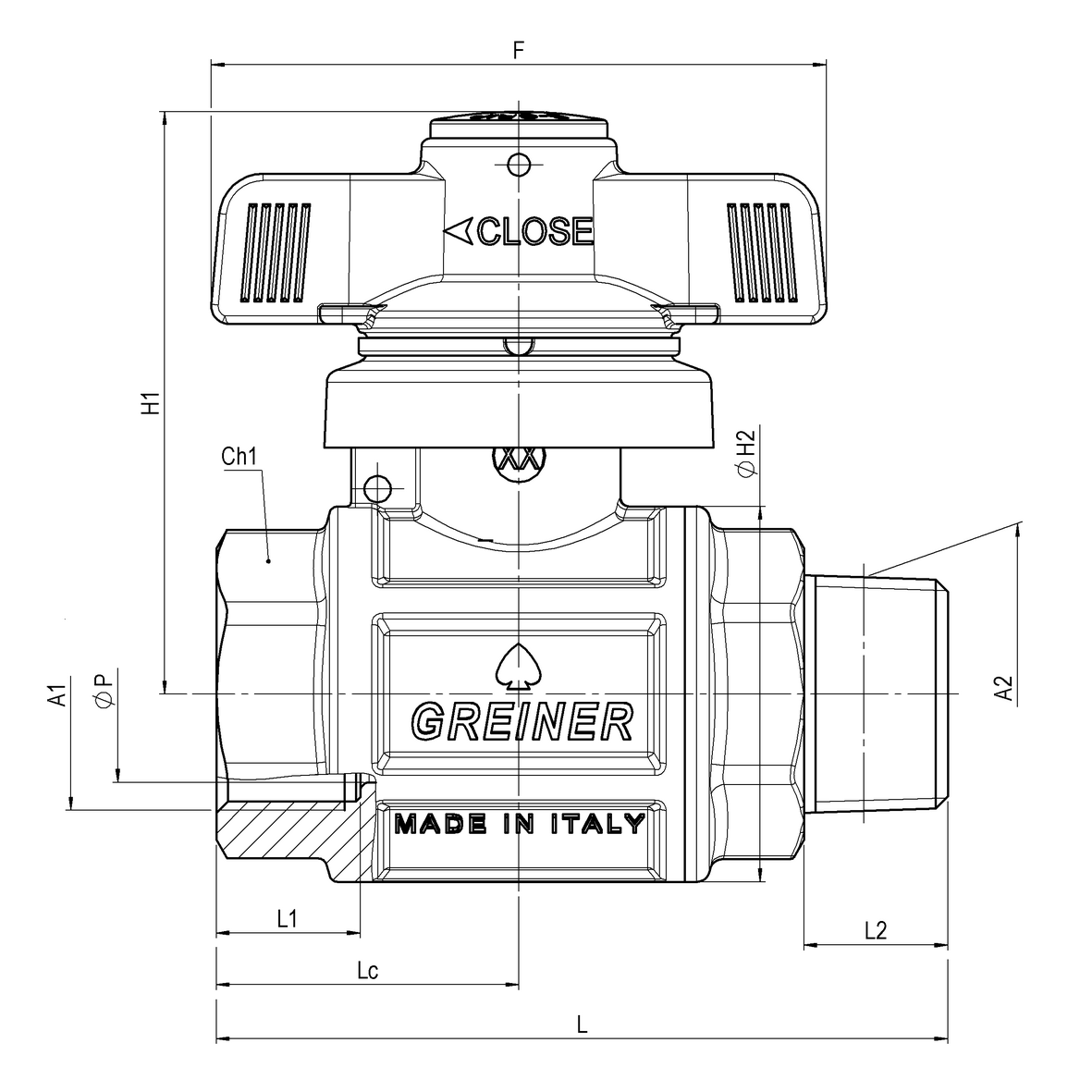

Water full-bore ball valve, heavy execution, with tamper-proof B-Grip T-handle, MALE-FEMALE
Application WATER
VALVES
Ball valves with tamper-proof device
Full
Ball valves with tamper-proof device
Full
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65522200050 | 0,36 | 0,36 | 96 | 0 | 55 | 70,9 | 0 | 0 | 0 | 0 | 15 | 15 | 0 | Rp1/2 | R1/2 | F-M | 0 | 0 | 59,7 | 33 | 15 | 0 | 0 | 0 | 0 | 29,2 | 0 | es.37 | 0 | 0 | PN100 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Disp. B-Grip | F generica | |
| 65522200075 | 0,63 | 0,63 | 60 | 0 | 70 | 82,8 | 0 | 0 | 0 | 0 | 16,3 | 16,3 | 0 | Rp3/4 | R3/4 | F-M | 0 | 0 | 65,9 | 42,5 | 20 | 0 | 0 | 0 | 0 | 34,25 | 0 | es.33 | 0 | 0 | PN64 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Disp. B-Grip | F generica | |
| 65522200100 | 0,96 | 0,96 | 32 | 0 | 70 | 96,1 | 0 | 0 | 0 | 0 | 19,1 | 19,1 | 0 | Rp1 | R1 | F-M | 0 | 0 | 70 | 52 | 25 | 0 | 0 | 0 | 0 | 41 | 0 | es.41 | 0 | 0 | PN64 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Disp. B-Grip | F generica |
