Water full-bore ball valve, standard series, anti-freeze with blue handle FEMALE-FEMALE

Application WATER

VALVES
Anti-freeze ball valves
Full

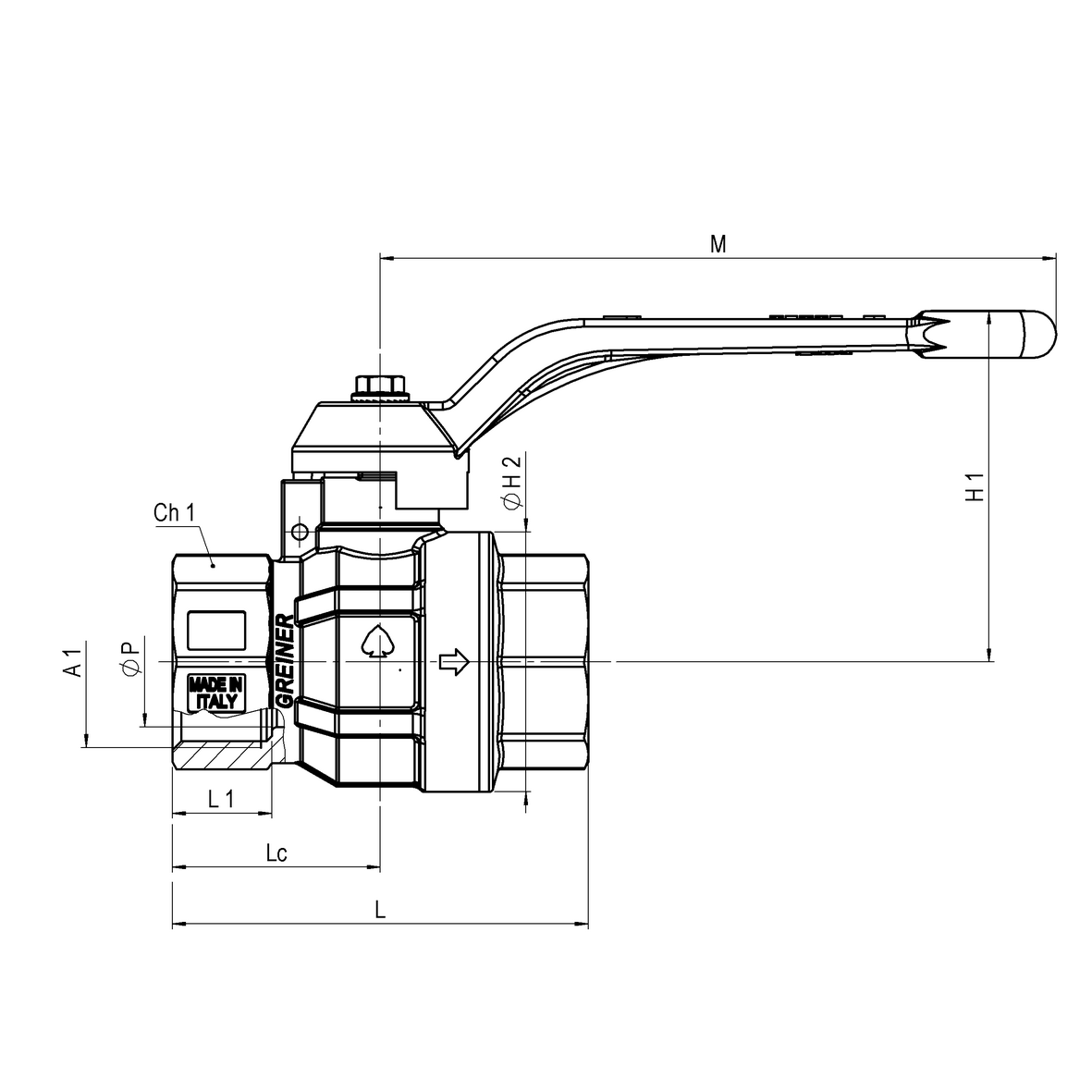

Code	Kg	Box	Master Box	M	F	L	T1	NA	Lb	ØB	L1	L2	Lmax	A1	A2	Combinazione	Q	Lmin	H1	ØH2	ØP	ØDf	i	Ød	nf	Lc	NA	Ch1	Ch2	Ch3	PN-MOP	Kv	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	PCP	cod.	A3	NA	NA
65830300050	0,22	0,22	100	100	0	56	0	0	0	0	15	0	0	Rp1/2	0	F-F	0	0	49	32	15	0	0	0	0	28	0	ott.25	0	0	PN50	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica
65830300075	0,34	0,34	96	100	0	66	0	0	0	0	16,3	0	0	Rp3/4	0	F-F	0	0	52,5	40	20	0	0	0	0	33	0	ott.32	0	0	PN40	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica
65830300100	0,64	0,64	48	130	0	80	0	0	0	0	19,1	0	0	Rp1	0	F-F	0	0	67,5	50	25	0	0	0	0	40	0	ott.38.5	0	0	PN40	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica
65830300125	0,83	0,83	40	130	0	91	0	0	0	0	21,4	0	0	Rp1.1/4	0	F-F	0	0	73	60	32	0	0	0	0	45,5	0	ott.48	0	0	PN32	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica
65830300150	1,27	1,27	27	160	0	103	0	0	0	0	21,4	0	0	Rp1.1/2	0	F-F	0	0	79,5	74	40	0	0	0	0	51,5	0	ott.55	0	0	PN32	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica

Download scheme
