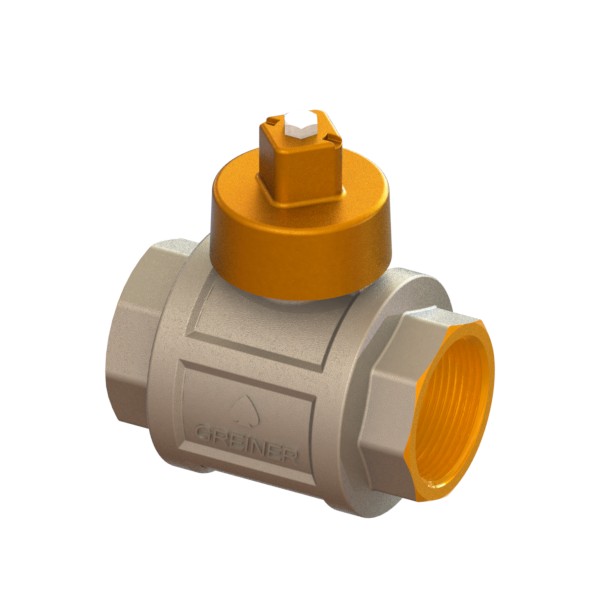

Water full-bore ball valve, heavy execution, with 400 Nm resistance, with square cap FEMALE-FEMALE
Application WATER
VALVES
Ball valves for drain wells - Operating torque resistance 400 to 600 Nm
Full
Ball valves for drain wells - Operating torque resistance 400 to 600 Nm
Full
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65460000075 | 0,75 | 0,75 | 40 | 0 | 0 | 68 | 0 | 0 | 0 | 0 | 16,3 | 0 | 0 | Rp3/4 | 0 | F-F | 22 | 0 | 71 | 42,5 | 20 | 0 | 0 | 0 | 0 | 33,75 | 0 | es.33 | 0 | 0 | PN64 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica | |
| 65460000100 | 1,09 | 1,09 | 30 | 0 | 0 | 82,7 | 0 | 0 | 0 | 0 | 19,1 | 0 | 0 | Rp1 | 0 | F-F | 22 | 0 | 75,5 | 52 | 25 | 0 | 0 | 0 | 0 | 41,7 | 0 | es.41 | 0 | 0 | PN64 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica | |
| 65460000125 | 1,44 | 1,44 | 20 | 0 | 0 | 93,5 | 0 | 0 | 0 | 0 | 21,4 | 0 | 0 | Rp1.1/4 | 0 | F-F | 22 | 0 | 83,2 | 63 | 32 | 0 | 0 | 0 | 0 | 47 | 0 | ott.50 | 0 | 0 | PN50 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica | |
| 65460000150 | 2,02 | 2,02 | 16 | 0 | 0 | 105,5 | 0 | 0 | 0 | 0 | 21,4 | 0 | 0 | Rp1.1/2 | 0 | F-F | 22 | 0 | 90,2 | 77 | 40 | 0 | 0 | 0 | 0 | 53 | 0 | ott.56 | 0 | 0 | PN50 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica | |
| 65460000200 | 3,33 | 3,33 | 10 | 0 | 0 | 126 | 0 | 0 | 0 | 0 | 25,7 | 0 | 0 | G2 | 0 | F-F | 22 | 0 | 106,2 | 93 | 50 | 0 | 0 | 0 | 0 | 63,5 | 0 | ott.70 | 0 | 0 | PN40 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica |
