Water full-bore ball valve, heavy execution, for PE pipe to be welded, with sealable square cap, IRON-PE

Application WATER

VALVES
Ball valves for PE pipe to be welded
Full

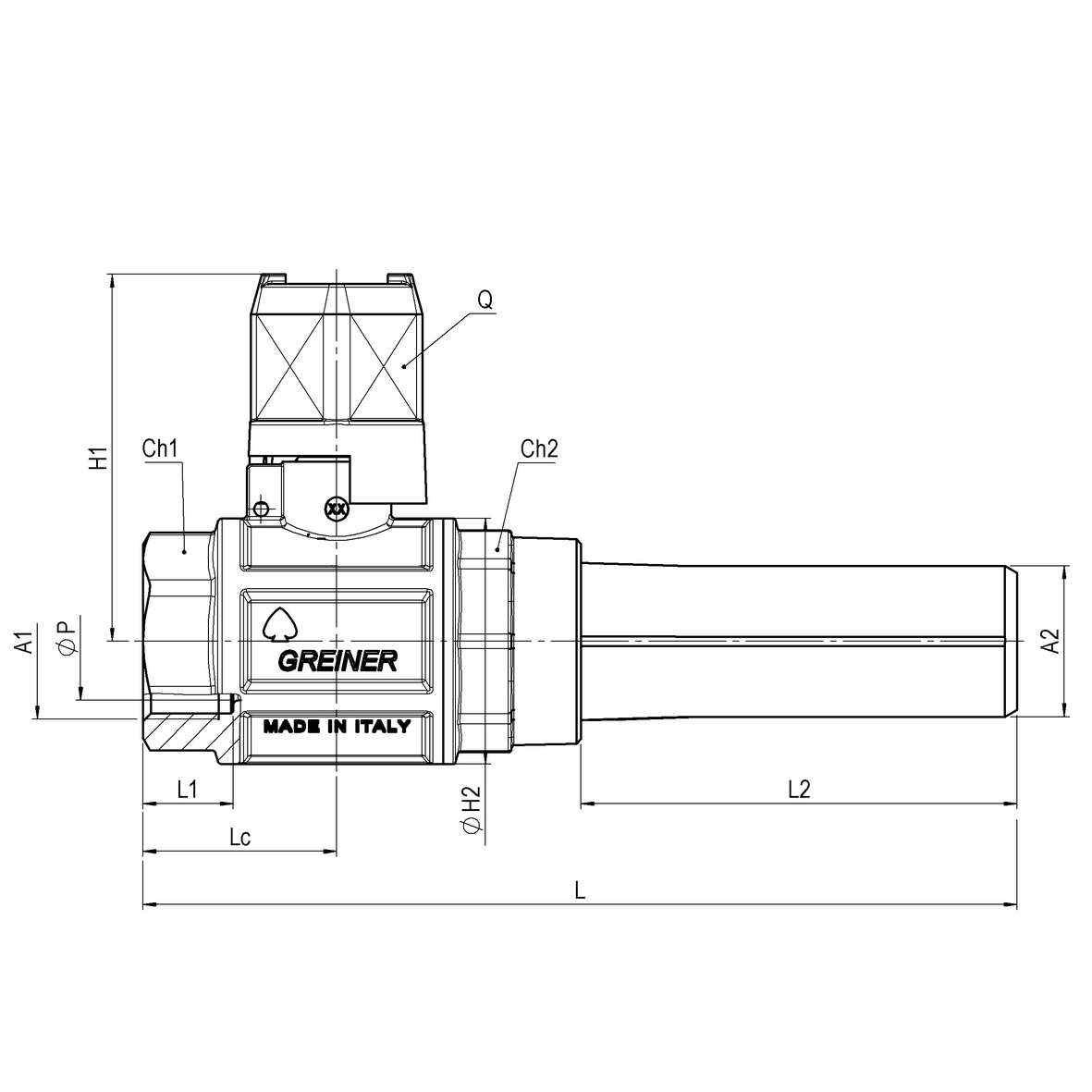

Code	Kg	Box	Master Box	L	T1	L1	L2	A1	A2	Combinazione	Q	H1	ØH2	ØP	Lc	Ch1	Ch2	PN-MOP	NA
65454200075	0,71	0,71	36	164,5	28,1	16,3	81,9	Rp3/4	Ø25	F-PE	28	73,4	42,5	20	34,3	es.33	ott.35	PN16	F generica
65454200100	1,04	1,04	32	185	27,7	19,1	92,3	Rp1	Ø32	F-PE	28	77,7	52	25	41	es.41	ott.44	PN16	F generica
65454200125	1,51	1,51	18	208	34,5	21,4	100,5	Rp1.1/4	Ø40	F-PE	28	88,7	63	32	46,5	ott.50	ott.55	PN16	F generica
65454200150	2,13	2,13	8	240,2	39,5	21,4	115	Rp1.1/2	Ø50	F-PE	28	95,7	77	40	52,5	ott.56	ott.62	PN16	F generica
65454200200	3,47	3,47	5	276,5	47,7	25,7	127,3	Rp2	Ø63	F-PE	28	107,5	93	50	62,5	ott.70	ott.78	PN16	F generica

Taps and fittings Dept.
