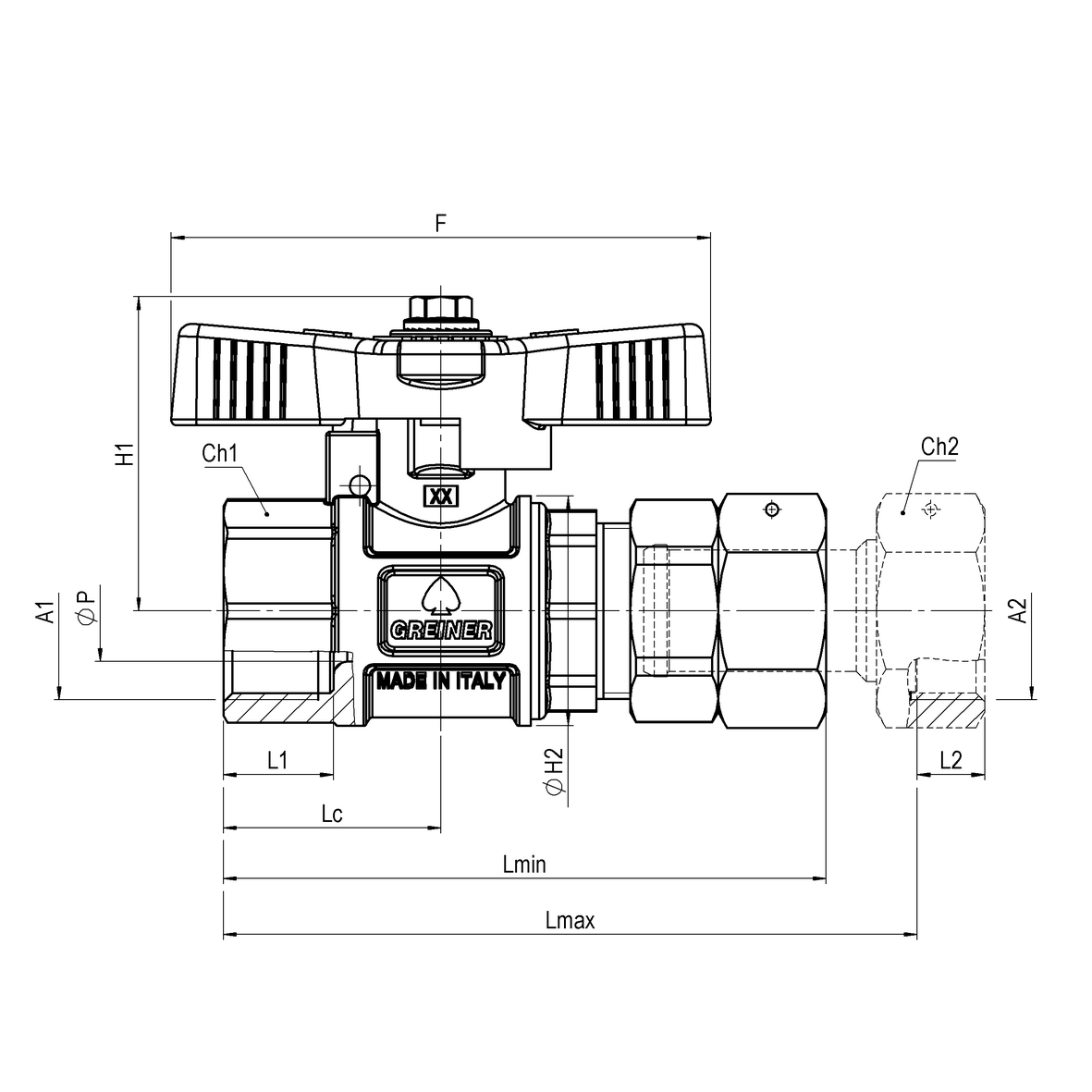

Water meter full-bore ball valve, heavy execution, with sealable T-handle in nickel-plated brass FEMALE-MOVING NUT telescopic
Application WATER
VALVES
Ball valves for water meters
Full
Ball valves for water meters
Full
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65533800075 | 0,34 | 0,34 | 60 | 0 | 80 | 0 | 0 | 0 | 0 | 0 | 16,3 | 10 | 103 | Rp3/4 | G3/4 | F-Gi | - | 89 | 46,5 | 34 | 15 | 0 | 0 | 0 | 0 | 32,2 | 0 | ott.31 | es.30 | - | PN25 | - | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | - | - | - | - | F generica |
