Full-bore spring check valve, heavy execution, FEMALE-FEMALE

Application WATER

VALVES
Spring check valves
Full

Code	Kg	Box	Master Box	M	F	L	T1	NA	Lb	ØB	L1	L2	Lmax	A1	A2	Combinazione	Q	Lmin	H1	ØH2	ØP	ØDf	i	Ød	nf	Lc	NA	Ch1	Ch2	Ch3	PN-MOP	Kv	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	PCP	cod.	A3	NA	NA
11600000050	0,15	0,15	200	0	0	52	0	0	0	0	15	0	0	Rp1/2	0	F-F	0	0	0	33	15	0	0	0	0	0	0	es.27	0	0	PN64	8	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica
11600000075	0,26	0,26	120	0	0	60	0	0	0	0	16,3	0	0	Rp3/4	0	F-F	0	0	0	42,5	20	0	0	0	0	0	0	es.33	0	0	PN50	12,5	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica
11600000100	0,44	0,44	80	0	0	70,5	0	0	0	0	19,1	0	0	Rp1	0	F-F	0	0	0	52	25	0	0	0	0	0	0	es.41	0	0	PN40	17,5	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica
11600000125	0,61	0,61	48	0	0	84	0	0	0	0	21,4	0	0	Rp1.1/4	0	F-F	0	0	0	63	32	0	0	0	0	0	0	ott.50	0	0	PN40	36	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica
11600000150	1,04	1,04	30	0	0	96	0	0	0	0	21,4	0	0	Rp1.1/2	0	F-F	0	0	0	77	40	0	0	0	0	0	0	ott.56	0	0	PN40	56	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica
11600000200	1,69	1,69	20	0	0	111	0	0	0	0	25,7	0	0	Rp2	0	F-F	0	0	0	93	50	0	0	0	0	0	0	ott.70	0	0	PN25	81	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica

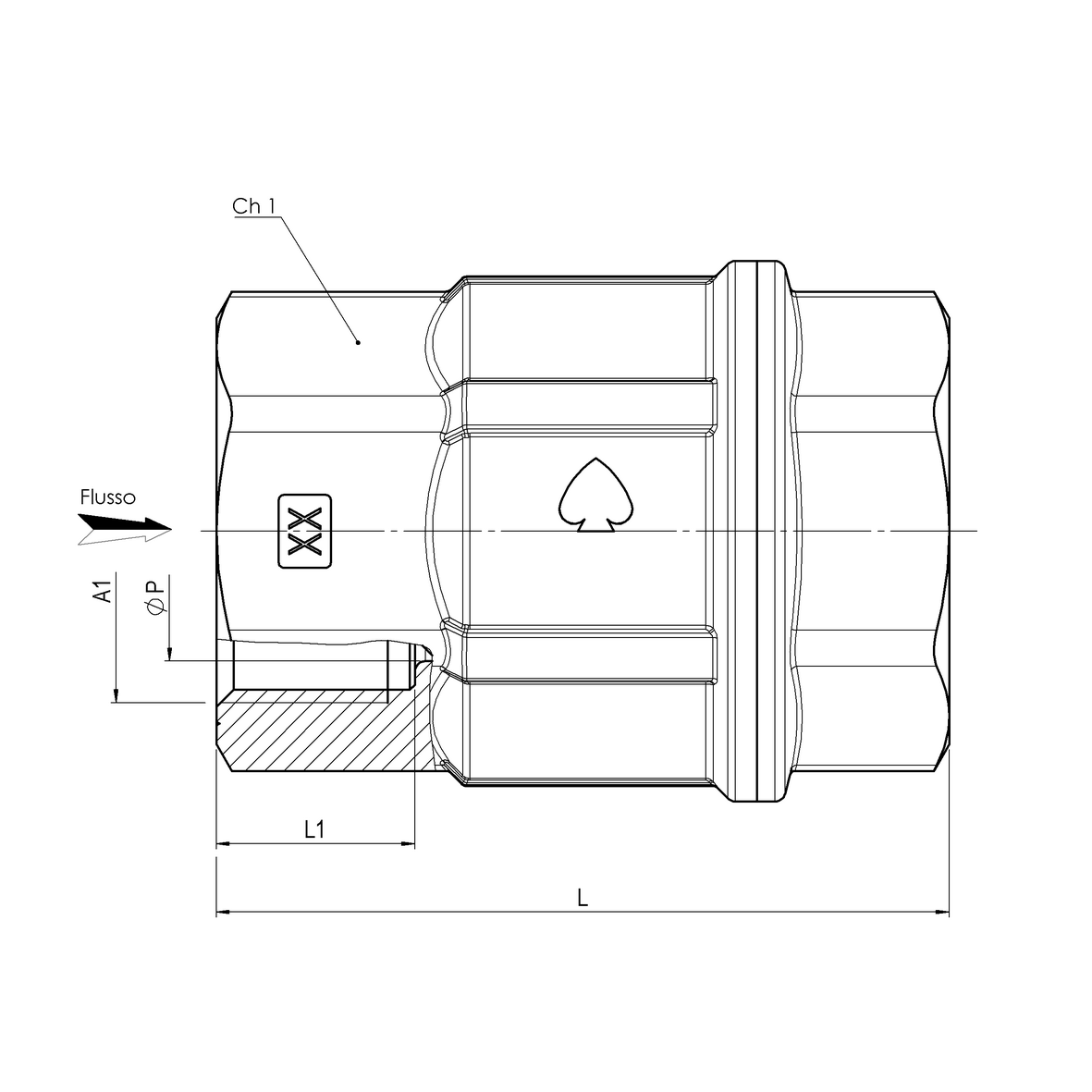

Download scheme
