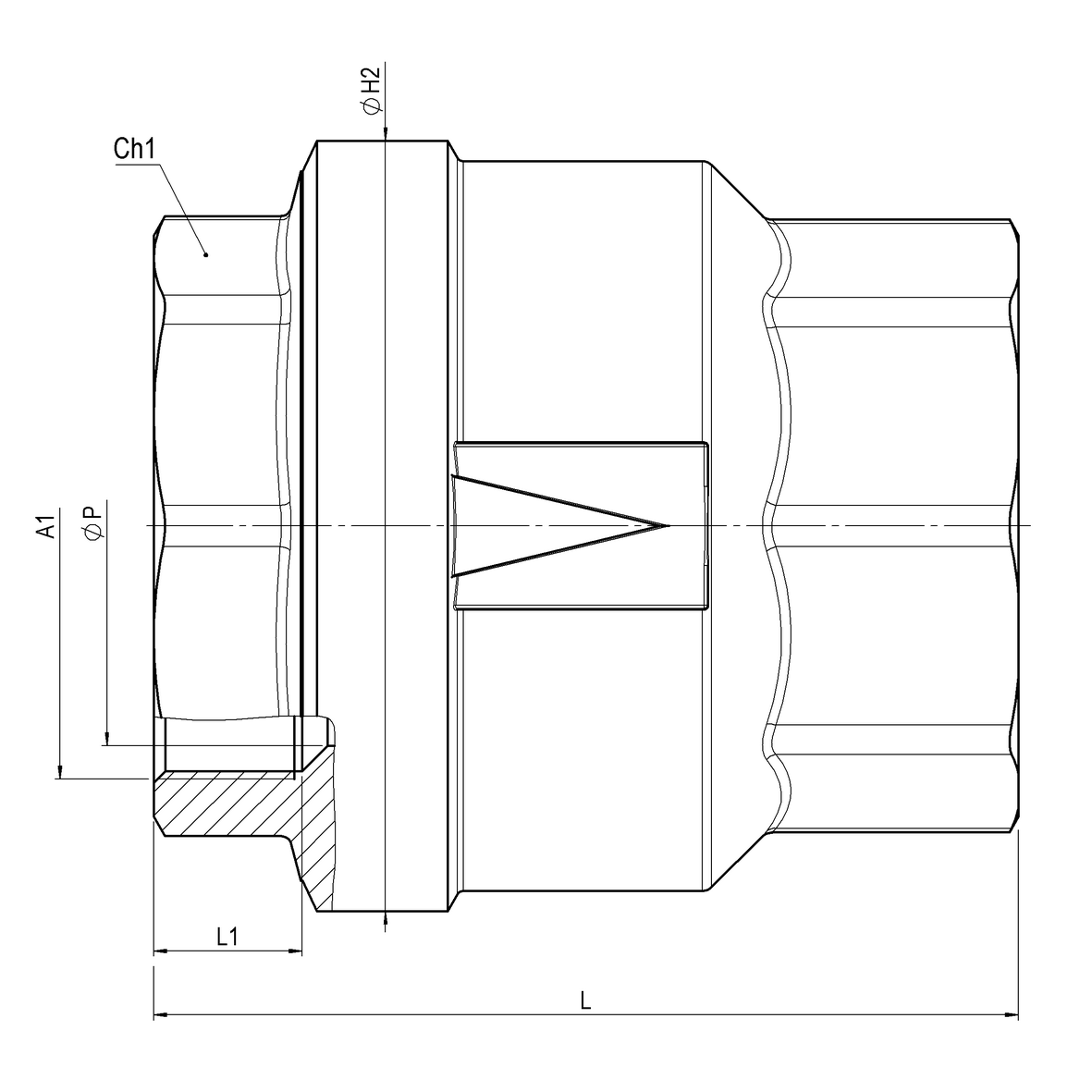

Full-bore spring check valve, FEMALE-FEMALE
Application WATER
VALVES
Spring check valves
Full
Spring check valves
Full
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11620000250 | 2,6 | 2,6 | 8 | 0 | 0 | 128 | 0 | 0 | 0 | 0 | 22 | 0 | 0 | G2.1/2 | - | F-F | - | 0 | 0 | 114 | 65 | 0 | 0 | 0 | 0 | 0 | 0 | ott.86 | - | - | PN10 | 100 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | - | - | - | - | F generica | |
| 11620000300 | 4,05 | 4,05 | 2 | 0 | 0 | 150 | 0 | 0 | 0 | 0 | 21,7 | 0 | 0 | G3 | - | F-F | - | 0 | 0 | 137 | 80 | 0 | 0 | 0 | 0 | 0 | 0 | ott.100 | - | - | PN10 | 162 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | - | - | - | - | F generica | |
| 11620000400 | 4,2 | 4,2 | 2 | 0 | 0 | 133,5 | 0 | 0 | 0 | 0 | 23 | 0 | 0 | G4 | - | F-F | - | 0 | 0 | 142 | 80 | 0 | 0 | 0 | 0 | 0 | 0 | ott.124 | - | - | PN10 | 162 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | - | - | - | - | F generica |
