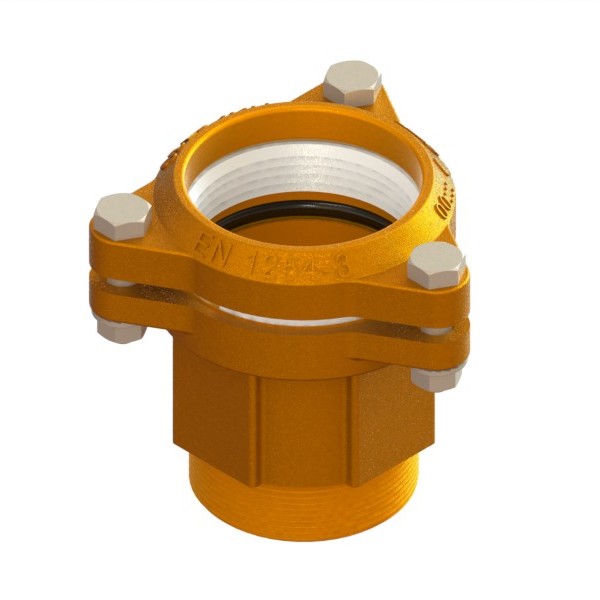

Compression fitting for PE PN16 pipe, with screw stays PE-MALE
Application WATER
FITTINGS
Fittings for PE pipe
Fittings for PE pipe
| Code | Kg | Box | Master Box | NA | L | NA | ØDt | T1 | T2 | Lb | L1 | L2 | Lmax | Combinazione | A1 | A2 | A3 | Lmin | H | ØP1 | ØP2 | ØDf | ØB | ØD1 | ØD2 | NA | i | A4 | Ch1 | Ch2 | Ch3 | Ch4 | Ød | n | nf | NA | NA | NA | NA | NA | NA | NA | PN | PCP | NA | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44932300250 | 2,1 | 2,1 | 6 | 0 | 120,5 | 0 | 76 | 88,5 | 0 | 0 | 0 | 26,5 | 0 | PE-M | Ø75 | G2.1/2 | 0 | 0 | 0 | 63 | 0 | 0 | 0 | 144 | 0 | 0 | 0 | 0 | ch.85 | 0 | 0 | 0 | 0 | 3 | 3 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | PE serraggio meccanico st | M generico | M10 | |
| 44932300300 | 3,03 | 3,03 | 4 | 0 | 136 | 0 | 91 | 99,5 | 0 | 0 | 0 | 30 | 0 | PE-M | Ø90 | G3 | 0 | 0 | 0 | 75 | 0 | 0 | 0 | 162 | 0 | 0 | 0 | 0 | ch.101 | 0 | 0 | 0 | 0 | 3 | 3 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | PE serraggio meccanico st | M generico | M10 | |
| 44932300400 | 4,92 | 4,92 | 2 | 0 | 157,7 | 0 | 111,5 | 113,7 | 0 | 0 | 0 | 37 | 0 | PE-M | Ø110 | G4 | 0 | 0 | 0 | 100 | 0 | 0 | 0 | 178 | 0 | 0 | 0 | 0 | ch.124 | 0 | 0 | 0 | 0 | 4 | 4 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | PE serraggio meccanico st | M generico | M10 |
