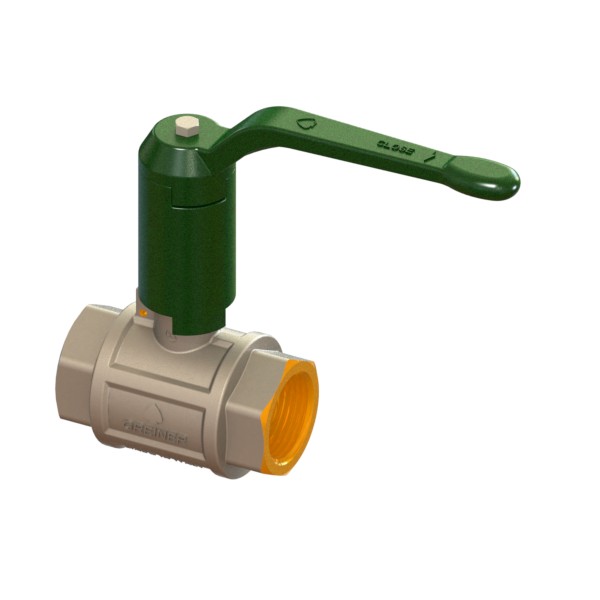

Water full-bore ball valve, heavy execution, with handle and extension FEMALE-FEMALE

Application WATER

VALVES
Full-bore ball valves
Full

Code	Kg	Box	Master Box	M	L	L1	A1	A2	Combinazione	Q	H1	ØH2	ØP	Lc	Ch1	Ch2	Ch3	PN-MOP	Kv	PCP	cod.	A3	NA	NA
65435100038	0,25	0,25	12	100	50	11,4	Rp3/8	0	F-F	0	101,7	25,5	10	25	es.22	0	0	PN100	0	0	0	0	0	F generica
65435100050	0,34	0,34	12	100	58,5	15	Rp1/2	-	F-F	-	104,2	33	15	29,25	es.27	-	-	PN100	-	-	-	-	-	F generica
65435100075	0,61	0,61	8	130	68,5	16,3	Rp3/4	-	F-F	-	118,4	42,5	20	34,25	es.33	-	-	PN64	-	-	-	-	-	F generica
65435100100	0,84	0,84	6	130	82	19,1	Rp1	0	F-F	0	122,7	52	25	41	es.41	0	0	PN64	0	0	0	0	0	F generica
65435100125	1,3	1,3	4	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
65435100150	1,87	1,87	3	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
65435100200	2,92	2,92	3	230	125	25,7	Rp2	0	F-F	0	168,5	93	50	62,5	ott.70	0	0	PN40	0	0	0	0	0	F generica
65435100250	4,55	4,55	2	230	150	30,2	Rp2.1/2	0	F-F	0	178,5	114	63	75	ott.86	0	0	PN40	0	0	0	0	0	F generica
65435100300	7,66	7,66	1	280	179	33,3	Rp3	0	F-F	0	197	141	79	89,5	ott.102	0	0	PN32	0	0	0	0	0	F generica
65435100400	12,71	12,71	1	280	219	39	Rp4	0	F-F	0	214	177	100	109,5	ott.129	0	0	PN25	0	0	0	0	0	F generica
