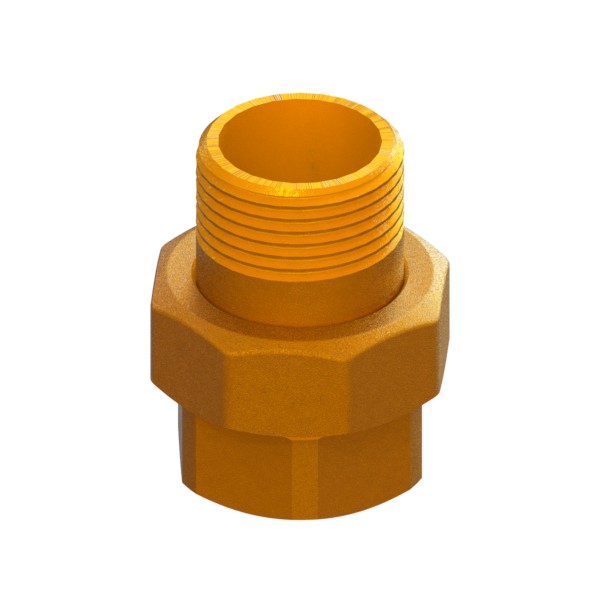

Three-part straight fitting with pipe union with o-ring, FEMALE-MALE, pipe union
Application WATER
FITTINGS
Three-part fittings
Three-part fittings
| Code | Kg | Box | Master Box | NA | L | NA | ØDt | T1 | T2 | Lb | L1 | L2 | Lmax | Combinazione | A1 | A2 | A3 | Lmin | H | ØP1 | ØP2 | ØDf | ØB | ØD1 | ØD2 | NA | i | A4 | Ch1 | Ch2 | Ch3 | Ch4 | Ød | n | nf | NA | NA | NA | NA | NA | NA | NA | PN | PCP | NA | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11174100038 | 0,09 | 0,09 | 360 | 0 | 42 | 0 | 0 | 0 | 0 | 0 | 10 | 10 | 0 | M-F | G3/8 | G3/8 | 0 | 0 | 0 | 12 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | es.27 | es.22 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | PN10 | 0 | M a bocch - Tenuta OR | F generica | 0 | |
| 11174100050 | 0,1 | 0,1 | 300 | 0 | 46,5 | 0 | 0 | 0 | 0 | 0 | 11 | 11 | 0 | M-F | G1/2 | G1/2 | 0 | 0 | 0 | 15 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | es.30 | es.25 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | PN10 | 0 | M a bocch - Tenuta OR | F generica | 0 | |
| 11174100075 | 0,19 | 0,19 | 180 | 0 | 51 | 0 | 0 | 0 | 0 | 0 | 12 | 11 | 0 | M-F | G3/4 | G3/4 | 0 | 0 | 0 | 20 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ott.37 | es.31 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | PN10 | 0 | M a bocch - Tenuta OR | F generica | 0 | |
| 11174100100 | 0,32 | 0,32 | 100 | 0 | 58 | 0 | 0 | 0 | 0 | 0 | 16,5 | 14 | 0 | M-F | G1 | G1 | 0 | 0 | 0 | 26 | 29 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ott.46 | es.38 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | PN10 | 0 | M a bocch - Tenuta OR | F generica | 0 |
