Water full-bore ball valve, heavy execution, with truncated pyramid-shaped cap MALE-MALE

Application WATER

VALVES
Full-bore ball valves
Full

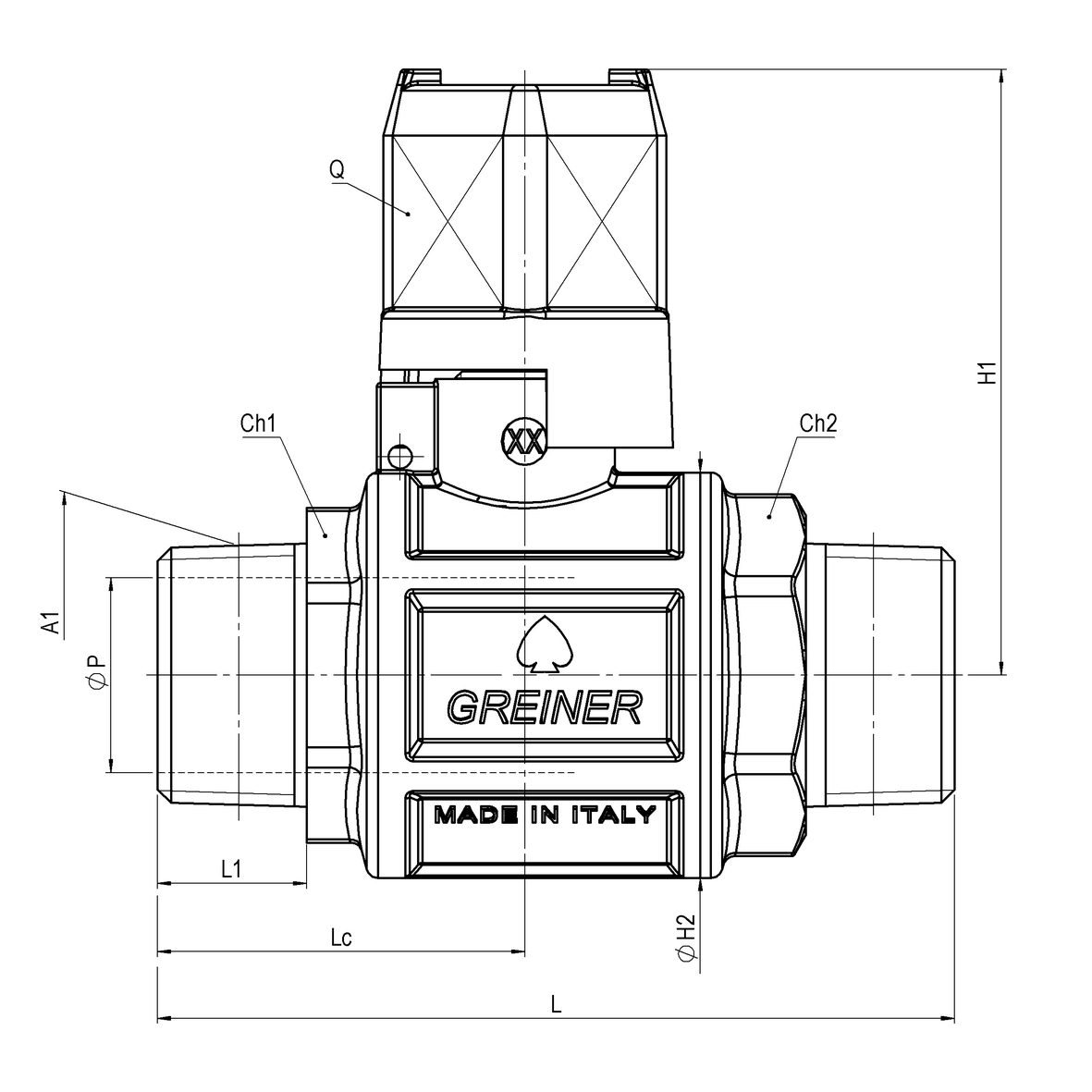

Code	Kg	Box	Master Box	L	L1	A1	A2	Combinazione	Q	H1	ØH2	ØP	Lc	Ch1	Ch2	Ch3	PN-MOP	Kv	PCP	cod.	A3	NA	NA
65452900050	0,44	0,44	80	77,4	15	R1/2	0	M-M	28	69,5	33	15	35,7	es.24	es.27	0	PN100	0	0	0	0	0	M generico
65452900075	0,64	0,64	50	90,1	16,3	R3/4	0	M-M	28	73	42,5	20	41,55	es.30	es.33	0	PN64	0	0	0	0	0	M generico
65452900100	0,93	0,93	40	102,2	19,1	R1	-	M-M	28	77,5	52	25	47,1	es.38	es.41	-	PN50	-	-	-	-	-	M generico
65452900125	1,26	1,26	20	117,7	21,4	R1.1/4	0	M-M	28	88,5	63	32	54,9	ott.46	ott.44	0	PN50	0	0	0	0	0	M generico
65452900150	1,81	1,81	16	127,8	21,4	R1.1/2	0	M-M	28	95,5	77	40	59,9	ott.56	ott.55	0	PN50	0	0	0	0	0	M generico
65452900200	3,27	3,27	6	160,4	25,7	R2	0	M-M	28	107,5	93	50	80,2	ott.67	ott.67	0	PN40	0	0	0	0	0	M generico

Taps and fittings Dept.
