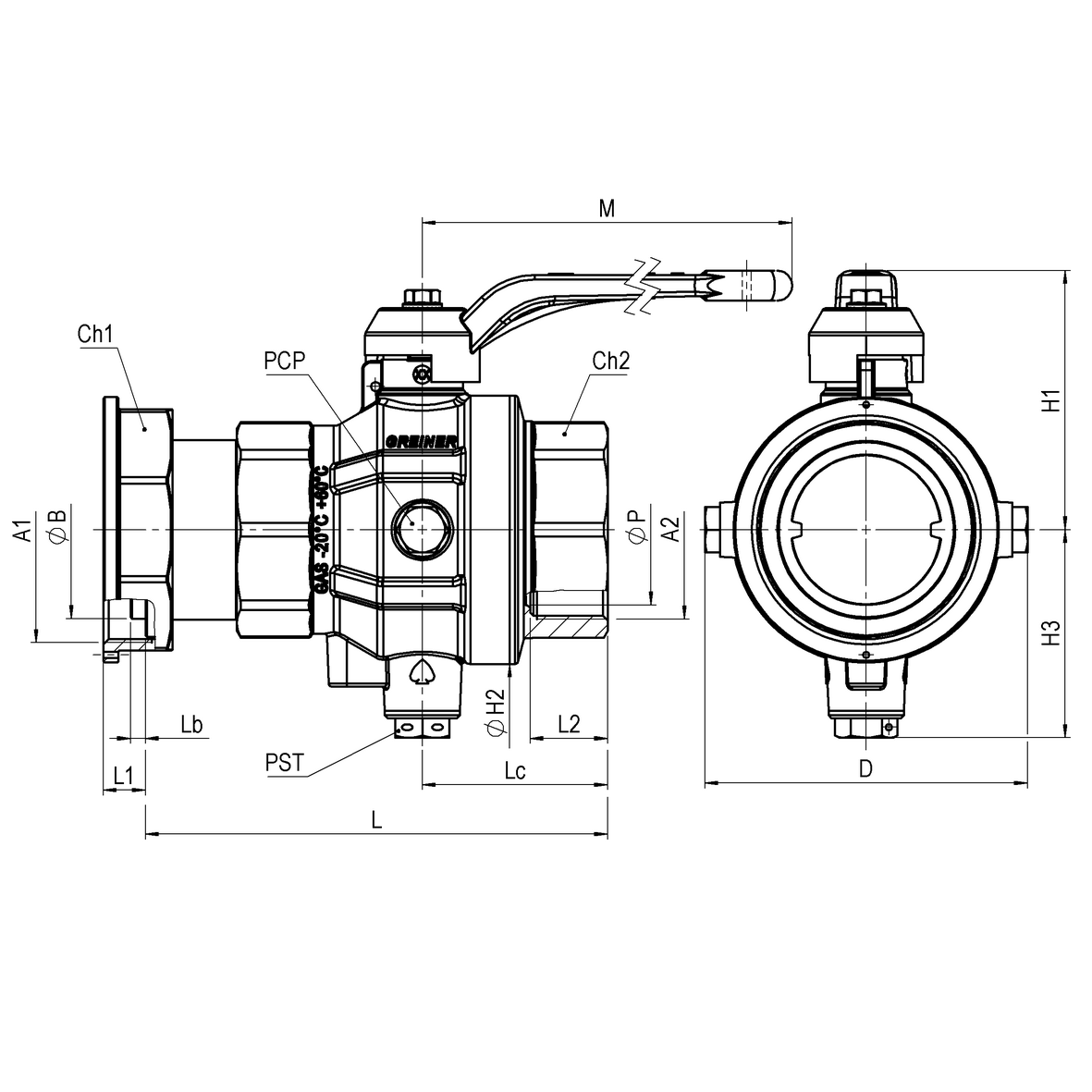

Gas meter full-bore inlet ball valve with two central PCP and one PST with yellow sealable handle FEMALE-MOVING NUT
Application GAS
VALVES
Ball valves for gas meters
Full
Ball valves for gas meters
Full
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65865431628 | 3,03 | 3,03 | 5 | 160 | 0 | 153,3 | 0 | 0 | 0 | 0 | 14 | 25,7 | 0 | G2.1/2 | Rp2 | Gi-F | 0 | 0 | 86 | 89 | 50 | 0 | 0 | 0 | 0 | 0 | 0 | ott.80 | ott.67 | 0 | -- | 0 | 0 | 69 | 107 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | G1/4 | 0 | 0 | 0 | Gi con bordino |
