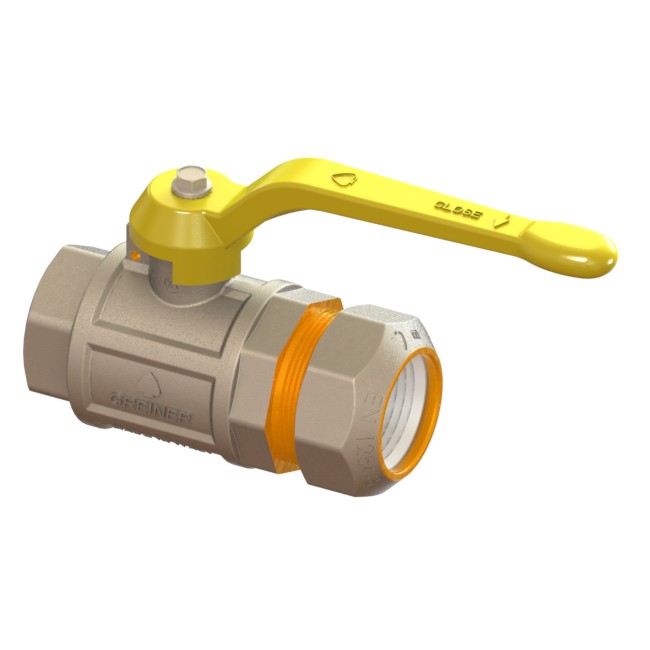

Gas full-bore ball valve, heavy execution, for PE pipe with compression fitting, with handle, IRON-PE
Application GAS
VALVES
Ball valves with compression-fitting for PE pipe
Full
Ball valves with compression-fitting for PE pipe
Full
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 61434500100 | 0,99 | 0,99 | 32 | 130 | 0 | 108,5 | 43 | 0 | 0 | 0 | 19,1 | 0 | 0 | Rp1 | Ø32 | F-PE | 0 | 0 | 57,5 | 52 | 25 | 0 | 0 | 0 | 0 | 41 | 0 | es.41 | ott.49 | ott.48 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica | |
| 61434500125 | 1,45 | 1,45 | 18 | 160 | 0 | 124,5 | 51,5 | 0 | 0 | 0 | 21,4 | 0 | 0 | Rp1.1/4 | Ø40 | F-PE | 0 | 0 | 75 | 63 | 32 | 0 | 0 | 0 | 0 | 46,5 | 0 | ott.50 | ott.55 | ott.58 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica |
