Water full-bore ball valve, heavy execution, for PE pipe with compression fitting, with truncated pyramid-shaped cap, PE-PE
Application WATER
VALVES
Ball valves with compression-fitting for PE pipe
Full
Ball valves with compression-fitting for PE pipe
Full

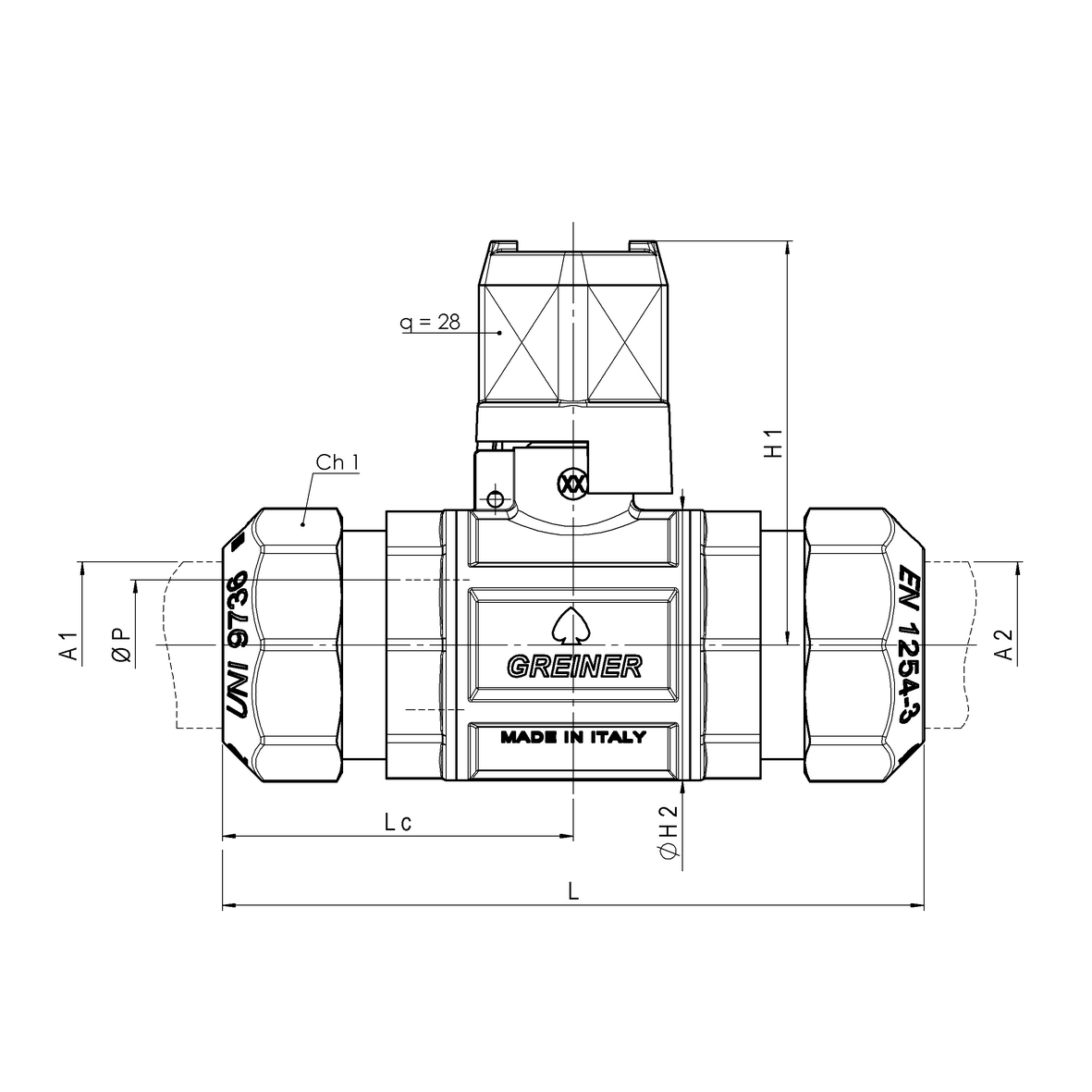

| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65454600720 | 0,49 | 0,49 | 64 | 0 | 0 | 93,3 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Ø20 | Ø20 | PE-PE | 28 | 0 | 89,7 | 33 | 15 | 0 | 0 | 0 | 0 | 43,4 | 0 | ott.32 | 0 | 0 | PN16 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | PE serraggio meccanico st | |
| 65454600725 | 0,75 | 0,75 | 40 | 0 | 0 | 113,5 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Ø25 | Ø25 | PE-PE | 28 | 0 | 73,4 | 42,5 | 20 | 0 | 0 | 0 | 0 | 54,8 | 0 | ott.39 | 0 | 0 | PN16 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | PE serraggio meccanico st | |
| 65454600732 | 1,25 | 1,25 | 20 | 0 | 0 | 135 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Ø32 | Ø32 | PE-PE | 28 | 0 | 77,7 | 52 | 25 | 0 | 0 | 0 | 0 | 67,5 | 0 | ott.49 | 0 | 0 | PN16 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | PE serraggio meccanico st | |
| 65454600740 | 1,78 | 1,78 | 12 | 0 | 0 | 156 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Ø40 | Ø40 | PE-PE | 28 | 0 | 88,7 | 63 | 32 | 0 | 0 | 0 | 0 | 78 | 0 | ott.58 | 0 | 0 | PN16 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | PE serraggio meccanico st | |
| 65454600750 | 2,79 | 2,79 | 10 | 0 | 0 | 188 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Ø50 | Ø50 | PE-PE | 28 | 0 | 95,7 | 77 | 40 | 0 | 0 | 0 | 0 | 74 | 0 | ott.71 | 0 | 0 | PN16 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | PE serraggio meccanico st | |
| 65454600763 | 4,96 | 4,96 | 8 | 0 | 28 | 230 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Ø63 | Ø63 | PE-PE | 0 | 0 | 107,5 | 93 | 50 | 0 | 0 | 0 | 0 | 115 | 0 | ott.88.5 | 0 | 0 | PN16 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | PE serraggio meccanico st |
