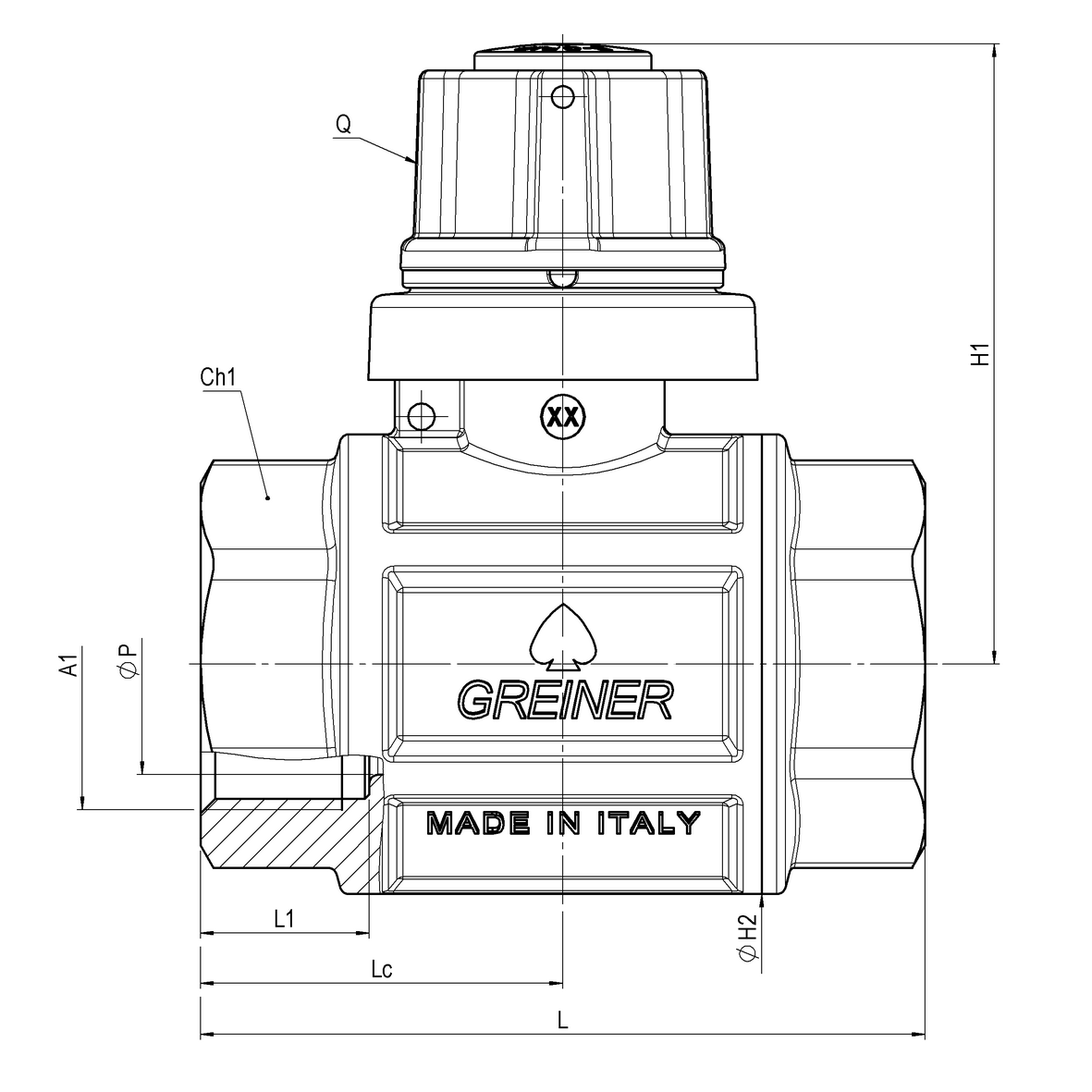

Water full-bore ball valve, heavy execution, with tamper-proof B-Grip cap, FEMALE-FEMALE

Application WATER

VALVES
Ball valves with tamper-proof device
Full

Code	Kg	Box	Master Box	L	L1	A1	A2	Combinazione	Q	H1	ØH2	ØP	Lc	Ch1	Ch2	Ch3	PN-MOP	Kv	PCP	cod.	A3	NA	NA
65470900050	0,32	0,32	60	58,5	15	Rp1/2	0	F-F	22	60	33	15	29,25	es.27	0	0	PN100	0	0	0	0	Disp. B-Grip	F generica
65470900075	0,63	0,63	48	68,5	16,3	Rp3/4	-	F-F	28	66	42,5	20	34,25	es.33	-	-	PN64	-	-	-	-	Disp. B-Grip	F generica
65470900100	0,88	0,88	40	82	19,1	Rp1	0	F-F	28	70	52	25	41	es.41	0	0	PN64	0	0	0	0	Disp. B-Grip	F generica
65470900125	1,25	1,25	20	93	21,4	Rp1.1/4	0	F-F	28	81	63	32	46,5	ott.50	0	0	PN50	0	0	0	0	Disp. B-Grip	F generica
65470900150	1,84	1,84	20	105	21,4	Rp1.1/2	0	F-F	28	88	77	40	52,5	ott.56	0	0	PN50	0	0	0	0	Disp. B-Grip	F generica
65470900200	2,82	2,82	10	125	25,7	Rp2	0	F-F	28	103	93	50	62,5	ott.70	0	0	PN40	0	0	0	0	Disp. B-Grip	F generica
