Water full-bore ball valve, heavy execution, for PE pipe to be welded, with sealable truncated pyramid-shaped cap, PE-PE

Application WATER

VALVES
Ball valves for PE pipe to be welded
Full

Code	Kg	Box	Master Box	M	F	L	T1	NA	Lb	ØB	L1	L2	Lmax	A1	A2	Combinazione	Q	Lmin	H1	ØH2	ØP	ØDf	i	Ød	nf	Lc	NA	Ch1	Ch2	Ch3	PN-MOP	Kv	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	PCP	cod.	A3	NA	NA
65454100725	0,9	0,9	15	0	0	260	0	0	0	0	82	0	0	Ø25	0	PE-PE	28	0	73	0	0	0	0	0	0	0	0	0	0	0	PN16	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	PE a saldare
65454100732	1,17	1,17	10	0	0	288	27,7	0	0	0	92,3	0	0	Ø32	0	PE-PE	28	0	77,5	52	25	0	0	0	0	51,7	0	ott.44	0	0	PN16	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	PE a saldare
65454100740	1,85	1,85	6	0	0	323	34,5	0	0	0	100,5	0	0	Ø40	0	PE-PE	28	0	88,7	63	32	0	0	0	0	61	0	ott.55	0	0	PN16	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	PE a saldare
65454100750	2,45	2,45	10	0	0	375,4	39,5	0	0	0	115,5	0	0	Ø50	0	PE-PE	28	0	95,7	77	40	0	0	0	0	72,2	0	ott.62	0	0	PN16	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	PE a saldare
65454100763	4,47	4,47	6	0	0	428	47,7	0	0	0	127,3	0	0	Ø63	0	PE-PE	28	0	107,7	93	50	0	0	0	0	86,7	0	ott.78	0	0	PN16	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	PE a saldare

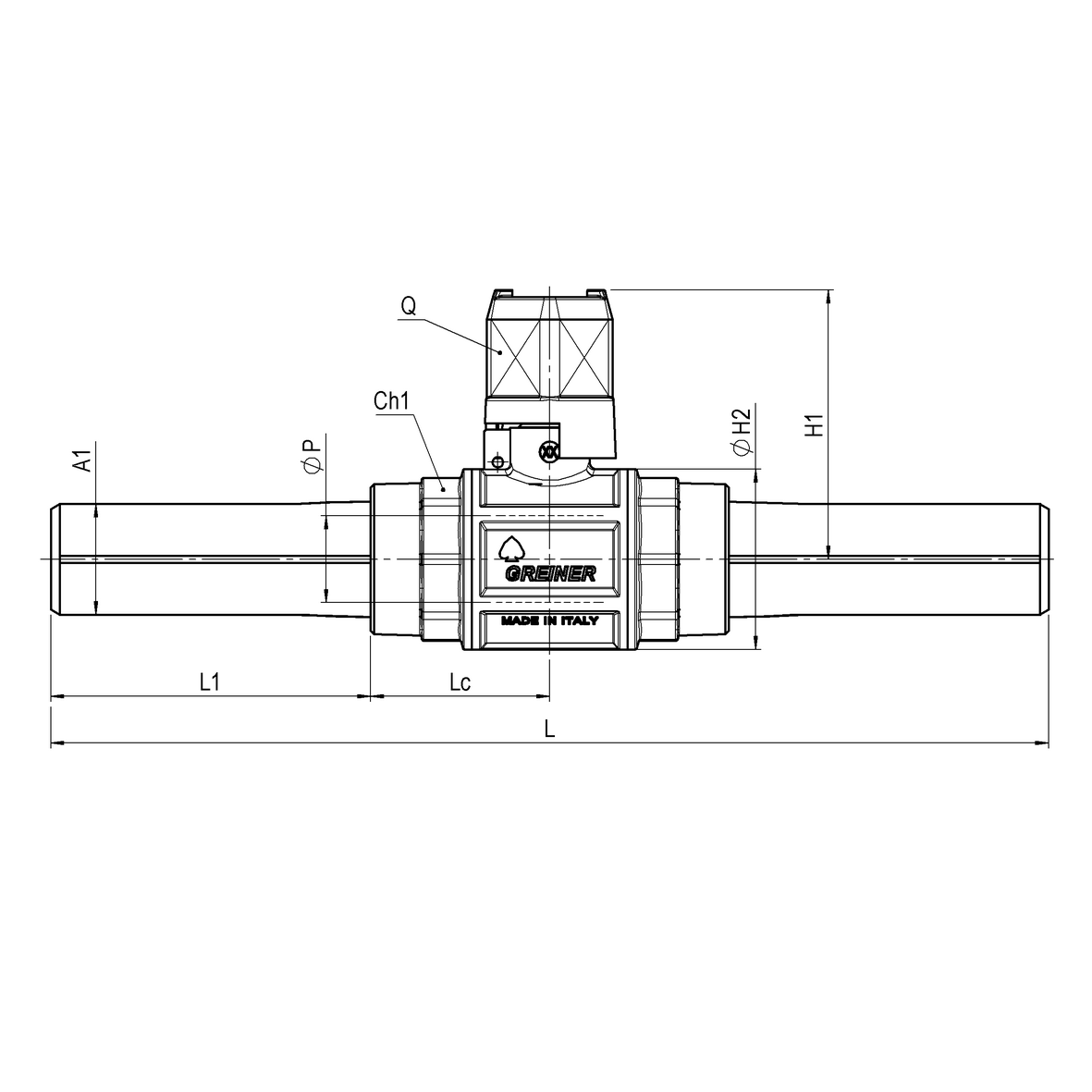

Download scheme
