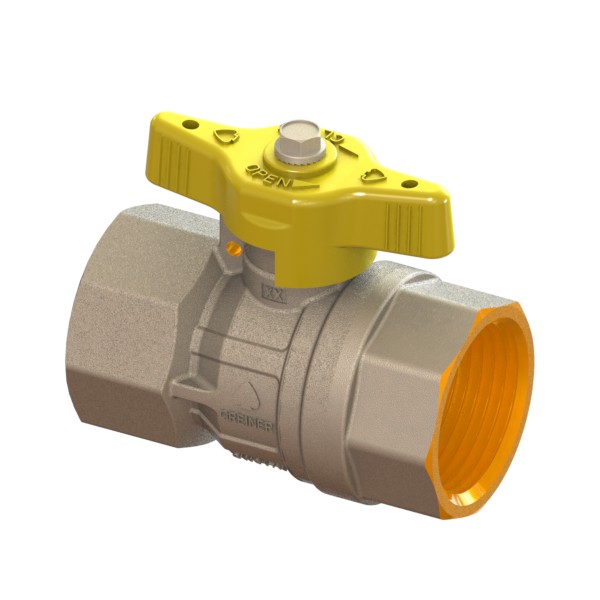

Gas reduced-bore ball valve, standard series, with yellow sealable T-handle FEMALE-FEMALE

Application GAS

VALVES
Reduced-bore ball valves
Reduced

Code	Kg	Box	Master Box	F	L	L1	A1	A2	Combinazione	Q	H1	ØH2	ØP	Lc	Ch1	Ch2	Ch3	PN-MOP	Kv	PCP	cod.	A3	NA	NA
65229500100	0,4	0,4	90	60	72,1	19,1	Rp1	0	F-F	0	47	42	20	36,1	ott.38	0	0	--	0	0	0	0	0	F generica
65229500125	0,77	0,77	40	80	86,2	21,4	Rp1.1/4	-	F-F	-	55	52	25	43,1	ott.48	-	-	--	-	-	-	-	-	F generica
65229500150	0,97	0,97	20	80	92,8	21,4	Rp1.1/2	-	F-F	-	60,5	62	32	46,4	ott.55	-	-	--	-	-	-	-	-	F generica
65229500200	1,64	1,64	20	110	113,4	25,7	Rp2	-	F-F	-	73,5	76	40	56,7	ott.67	-	-	--	-	-	-	-	-	F generica
