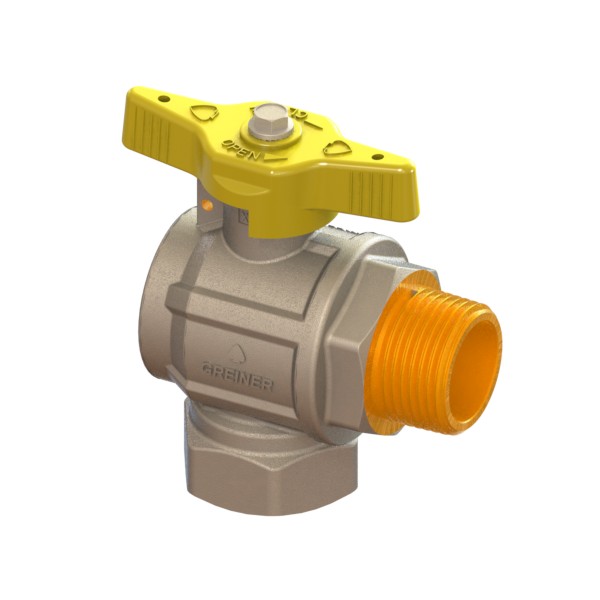

Gas full-bore, right-angle ball valve, heavy execution, with yellow sealable T-handle FEMALE-MALE
Application GAS
VALVES
Right-angle ball valves
Full
Right-angle ball valves
Full
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 67529600075 | 0,52 | 0,52 | 60 | 0 | 80 | 48,55 | 0 | 0 | 0 | 0 | 16,3 | 16,3 | 0 | Rp3/4 | R3/4 | F-M | 0 | 0 | 53,2 | 42,5 | 20 | 0 | 0 | 0 | 0 | 0 | 0 | es.33 | es.33 | 0 | -- | 0 | 0 | 36,5 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica | |
| 67529600100 | 0,82 | 0,82 | 36 | 0 | 80 | 55,1 | 0 | 0 | 0 | 0 | 19,1 | 19,1 | 0 | Rp1 | R1 | F-M | - | 0 | 57,5 | 52 | 25 | 0 | 0 | 0 | 0 | 0 | 0 | es.41 | es.41 | - | -- | - | 0 | 43,5 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | - | - | - | - | F generica |
