Gas reduced-bore ball valve, heavy execution, with safety cap AG-Block FEMALE-MOVING NUT
Application GAS
VALVES
Ball valves with safety device
Reduced
Ball valves with safety device
Reduced

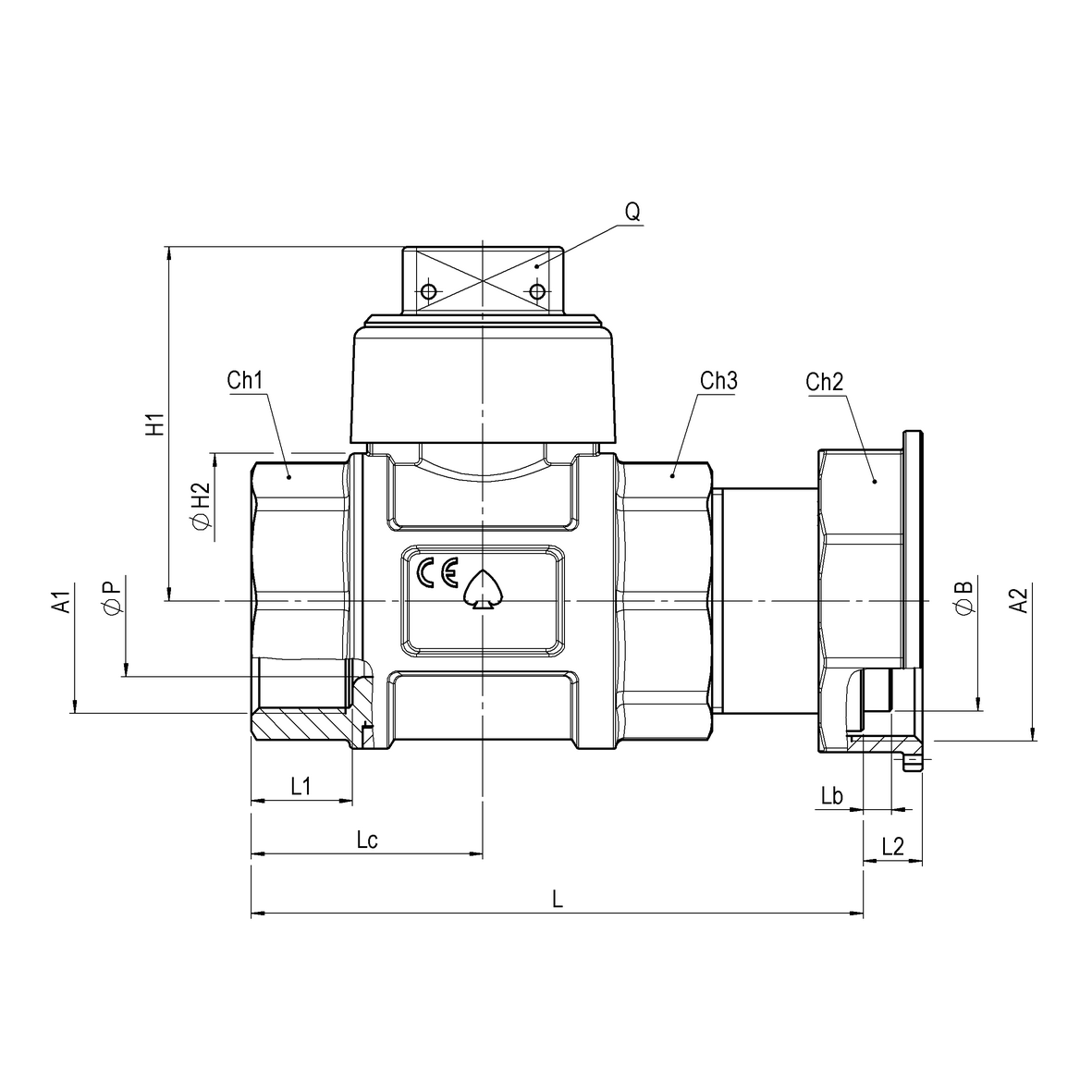

| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65786900625 | 1,95 | 1,95 | 16 | 0 | 0 | 129,5 | 0 | 0 | 6 | 46,5 | 21,4 | 12,5 | 0 | Rp1.1/2 | G2 | F-Gi | 20x34 | 0 | 75 | 62,5 | 32 | 0 | 40 | 0 | 0 | 49 | 0 | ott.55 | ott.64 | ott.55 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Disp AG-Block | F generica |
