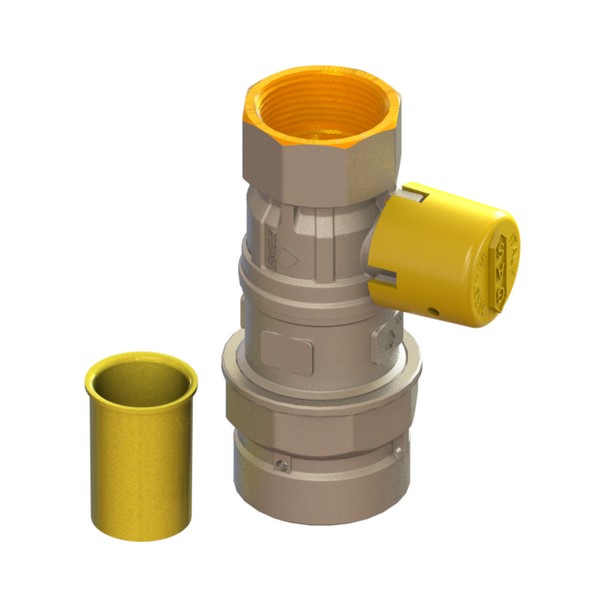

Gas reduced-bore ball valve, standard series, for PE, protected with SDR11 inlet, with yellow sealable cap, PE-FEMALE
Application GAS
VALVES
Ball valves with compression fitting for PE pipe, with connection for protective pipe FE
Reduced
Ball valves with compression fitting for PE pipe, with connection for protective pipe FE
Reduced
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65284900100 | 0,68 | 0,68 | 40 | 0 | 0 | 117,8 | 39,5 | 0 | 0 | 0 | 19,1 | 0 | 0 | Rp1 | Ø32 | F-PE | 12x23 | 0 | 52 | 42 | 20 | 0 | 0 | 0 | 0 | 0 | 0 | ott.38 | ott.48 | ch.39 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1.1/4 | 0 | F generica | |
| 65284900125 | 1,22 | 1,22 | 24 | 0 | 0 | 136,6 | 44,5 | 0 | 0 | 0 | 21,4 | 0 | 0 | Rp1.1/4 | Ø40 | F-PE | 12x25 | 0 | 63 | 52 | 25 | 0 | 0 | 0 | 0 | 43,1 | 0 | ott.48 | ott.58 | ch.48 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1.1/2 | 0 | F generica | |
| 65284900150 | 1,63 | 1,63 | 16 | 0 | 0 | 151,9 | 51,4 | 0 | 0 | 0 | 21,4 | 0 | 0 | Rp1.1/2 | Ø50 | F-PE | 12x25 | 0 | 68,5 | 62 | 32 | 0 | 0 | 0 | 0 | 46,4 | 0 | ott.55 | ott.71 | ch.58 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 2 | 0 | F generica | |
| 65284900200 | 2,89 | 2,89 | 8 | 0 | 0 | 183,7 | 62,1 | 0 | 0 | 0 | 25,7 | 0 | 0 | Rp2 | Ø63 | F-PE | 12x25 | 0 | 80 | 76 | 40 | 0 | 0 | 0 | 0 | 56,7 | 0 | ott.67 | ott.88.5 | ch.72 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 2.1/2 | 0 | F generica |
