Gas reduced-bore ball valve, heavy execution, with safety cap AG-Block MALE-FEMALE
Application GAS
VALVES
Ball valves with safety device
Reduced
Ball valves with safety device
Reduced

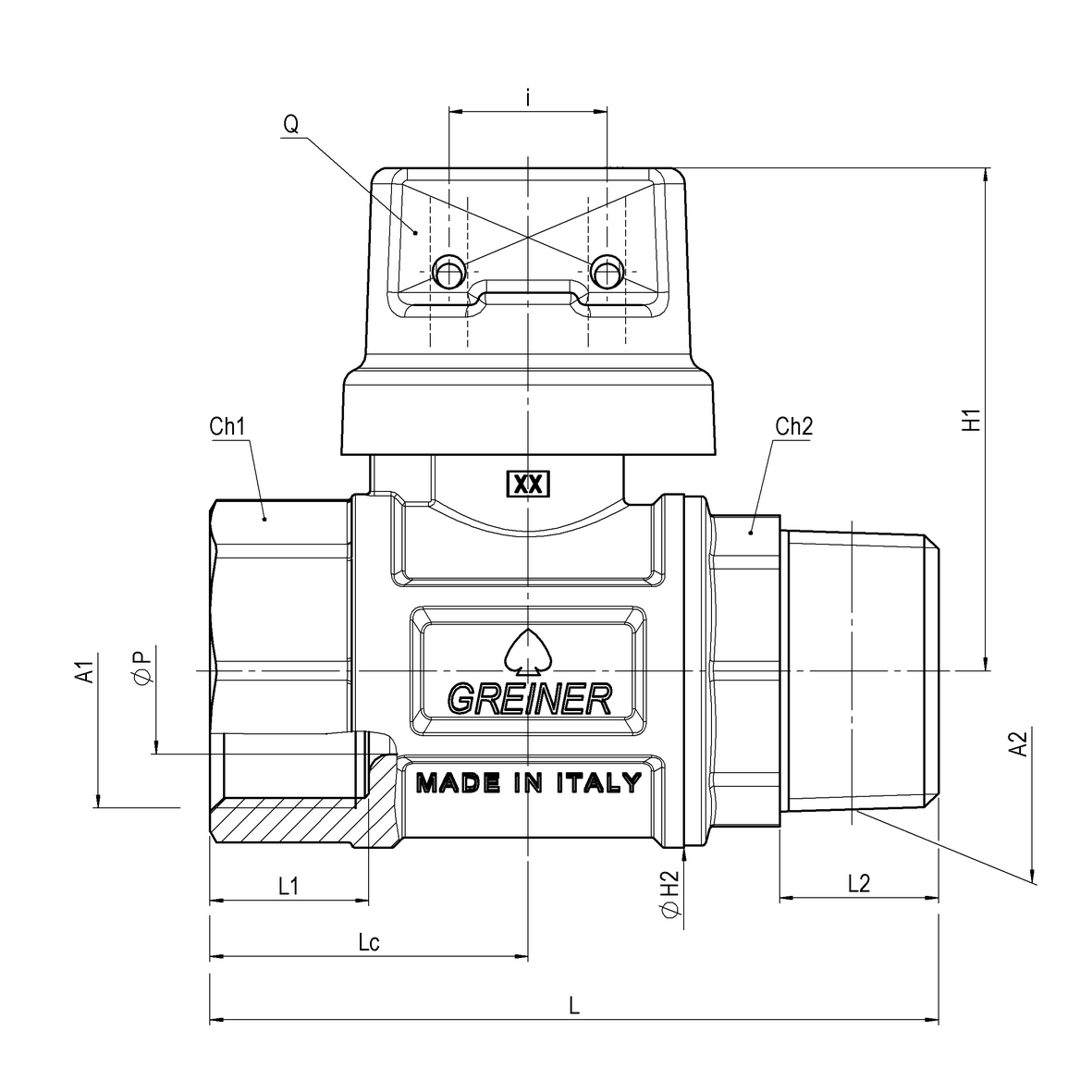

Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
65780700100 | 0,62 | 0,62 | 50 | 0 | 0 | 87,6 | 0 | 0 | 0 | 0 | 19,1 | 19,1 | 0 | Rp1 | R1 | F-M | ch.20 | 0 | 60,5 | 42,5 | 20 | 0 | 19 | 0 | 0 | 38,25 | 0 | ott.38.5 | ott.35 | - | -- | - | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | - | - | - | Disp AG-Block | F generica |
