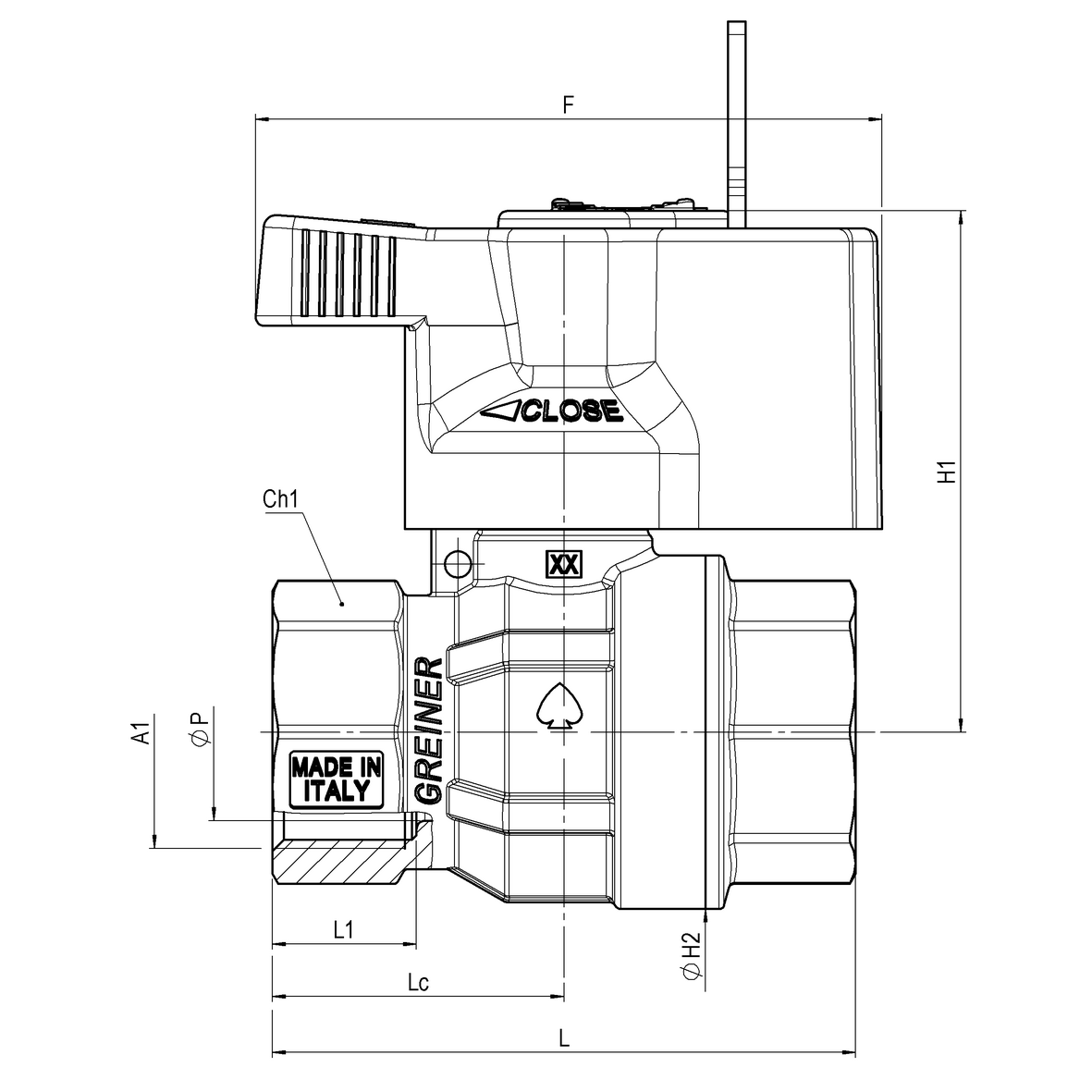

Gas full-bore ball valve, standard series, with safety and arrearage lock 301 to 340, with yellow T-handle FEMALE-FEMALE

Application GAS

VALVES
Ball valves with safety device
Full

Code	Kg	Box	Master Box	M	F	L	L1	A1	Combinazione	H1	ØH2	ØP	Lc	Ch1	PN-MOP	cod.	NA	NA
65825400050	0,33	0,33	40	0	71	56	15	Rp1/2	F-F	55,5	32	15	28	ott.25	--	301-340	Serratura	F generica
65825400075	0,46	0,46	40	0	71	66	16,3	Rp3/4	F-F	59	40	20	33	ott.32	--	301-340	Serratura	F generica
65825400100	0,66	0,66	40	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
65825400125	0,94	0,94	36	88,5	0	91	21,4	Rp1.1/4	F-F	73	60	32	45,5	ott.48	--	301-340	Serratura	F generica
65825400150	1,43	1,43	24	0	130	103	21,4	Rp1.1/2	F-F	83	74	40	51,5	ott.55	--	301-340	Serratura	F generica
65825400200	2,08	2,08	16	0	130	123	25,7	Rp2	F-F	90	89	50	61,5	ott.67	--	301-340	Serratura	F generica

Taps and fittings Dept.
