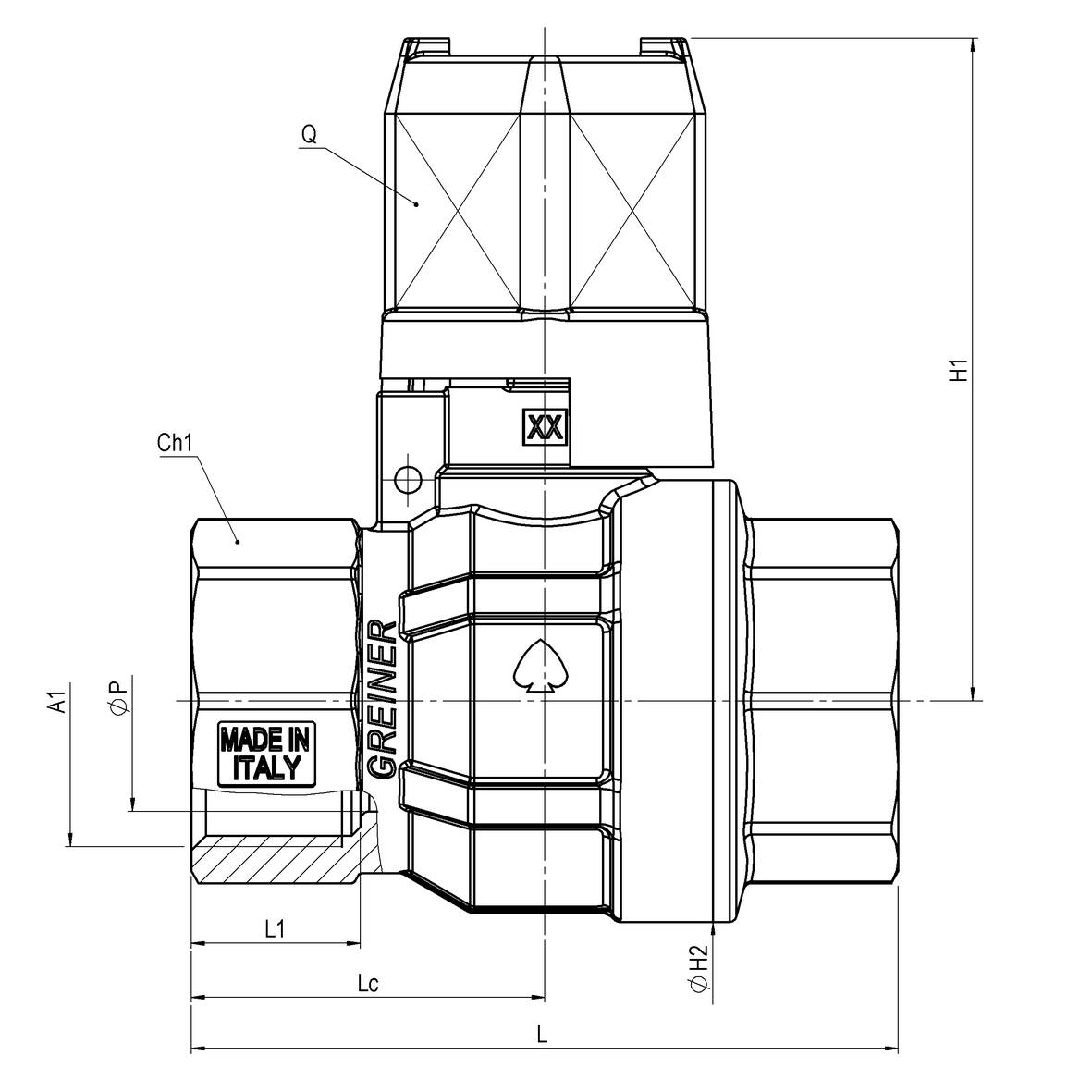

Water full-bore ball valve, standard series, with truncated pyramid-shaped cap FEMALE-FEMALE

Application WATER

VALVES
Full-bore ball valves
Full

Code	Kg	Box	Master Box	M	F	L	T1	NA	Lb	ØB	L1	L2	Lmax	A1	A2	Combinazione	Q	Lmin	H1	ØH2	ØP	ØDf	i	Ød	nf	Lc	NA	Ch1	Ch2	Ch3	PN-MOP	Kv	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	PCP	cod.	A3	NA	NA
65850000050	0,34	0,34	100	0	0	56	0	0	0	0	15	0	0	Rp1/2	0	F-F	28	0	65,5	32	15	0	0	0	0	28	0	ott.25	0	0	PN50	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica
65850000050	0,34	0,34	100	0	0	56	0	0	0	0	15	0	0	Rp1/2	0	F-F	28	0	65,5	32	15	0	0	0	0	28	0	ott.25	0	0	PN50	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica
65850000075	0,46	0,46	80	0	0	66	0	0	0	0	16,3	0	0	Rp3/4	0	F-F	28	0	69	40	20	0	0	0	0	33	0	ott.32	0	0	PN40	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica
65850000075	0,46	0,46	80	0	0	66	0	0	0	0	16,3	0	0	Rp3/4	0	F-F	28	0	69	40	20	0	0	0	0	33	0	ott.32	0	0	PN40	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica
65850000100	0,7	0,7	48	0	0	80	0	0	0	0	19,1	0	0	Rp1	0	F-F	28	0	75	50	25	0	0	0	0	40	0	ott.38.5	0	0	PN40	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica
65850000100	0,7	0,7	48	0	0	80	0	0	0	0	19,1	0	0	Rp1	0	F-F	28	0	75	50	25	0	0	0	0	40	0	ott.38.5	0	0	PN40	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica
65850000125	0,88	0,88	40	0	0	91	0	0	0	0	21,4	0	0	Rp1.1/4	0	F-F	28	0	80	60	32	0	0	0	0	45,5	0	ott.48	0	0	PN32	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica
65850000125	0,88	0,88	40	0	0	91	0	0	0	0	21,4	0	0	Rp1.1/4	0	F-F	28	0	80	60	32	0	0	0	0	45,5	0	ott.48	0	0	PN32	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica
65850000150	1,36	1,36	20	0	0	103	0	0	0	0	21,4	0	0	Rp1.1/2	0	F-F	28	0	91,5	74	40	0	0	0	0	51,5	0	ott.55	0	0	PN32	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica
65850000150	1,36	1,36	20	0	0	103	0	0	0	0	21,4	0	0	Rp1.1/2	0	F-F	28	0	91,5	74	40	0	0	0	0	51,5	0	ott.55	0	0	PN32	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica
65850000200	1,98	1,98	16	0	0	123	0	0	0	0	25,7	0	0	Rp2	0	F-F	28	0	98	89	50	0	0	0	0	61,5	0	ott.67	0	0	PN25	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica
65850000200	1,98	1,98	16	0	0	123	0	0	0	0	25,7	0	0	Rp2	0	F-F	28	0	98	89	50	0	0	0	0	61,5	0	ott.67	0	0	PN25	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica
65850000250	3,54	3,54	6	0	0	148,2	0	0	0	0	30,2	0	0	Rp2.1/2	-	F-F	28	0	115,5	110	63	0	0	0	0	74,2	0	ott.84	-	-	PN25	-	0	0	0	0	0	0	0	0	0	0	-	-	-	-	F generica
65850000300	5,84	5,84	2	0	0	171	0	0	0	0	33,3	0	0	Rp3	-	F-F	28	0	125,5	133	76	0	0	0	0	85,5	0	ott.102	-	-	PN25	-	0	0	0	0	0	0	0	0	0	0	-	-	-	-	F generica

Download scheme
