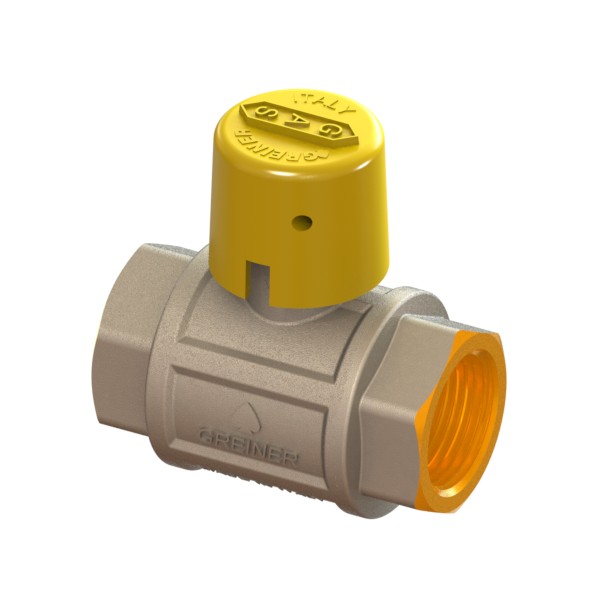

Gas full-bore ball valve, heavy execution, automatic lock on closing, with yellow sealable cap FEMALE-FEMALE
Application GAS
VALVES
Ball valves with safety device
Full
Ball valves with safety device
Full

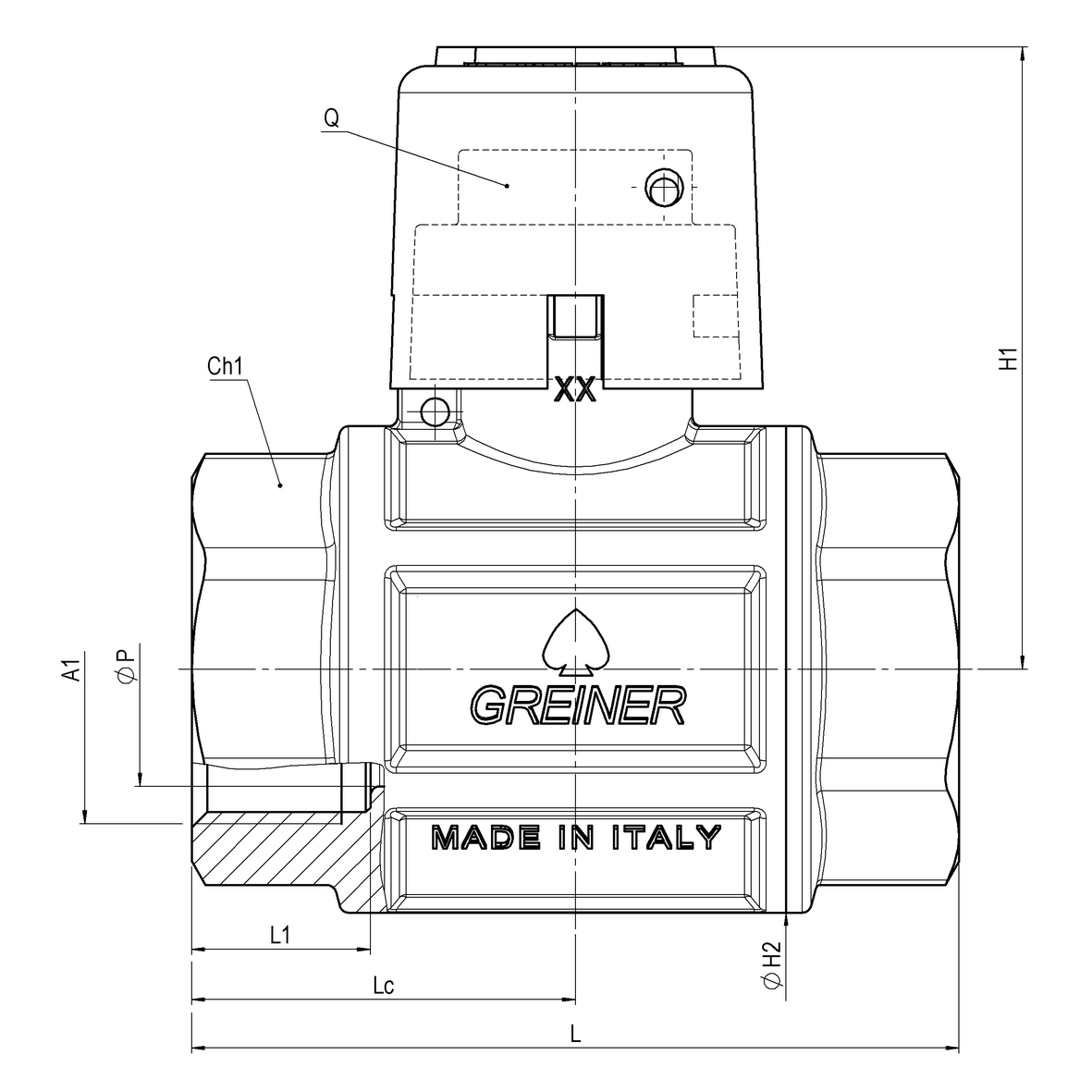

| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65487800100 | 0,84 | 0,84 | 40 | 0 | 0 | 82 | 0 | 0 | 0 | 0 | 19,1 | 0 | 0 | Rp1 | 0 | F-F | 12x25 | 0 | 66,5 | 52 | 25 | 0 | 0 | 0 | 0 | 41 | 0 | es.41 | 0 | 0 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Testa c/disp automatico (tipo 6578) | F generica | |
| 65487800125 | 1,16 | 1,16 | 24 | 0 | 0 | 93 | 0 | 0 | 0 | 0 | 46,5 | 0 | 0 | Rp1.1/4 | 0 | F-F | 12x25 | 0 | 71,5 | 63 | 32 | 0 | 0 | 0 | 0 | 46,5 | 0 | ott.50 | 0 | 0 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Testa c/disp automatico (tipo 6578) | F generica | |
| 65487800150 | 1,74 | 1,74 | 18 | 0 | 0 | 105 | 0 | 0 | 0 | 0 | 21,4 | 0 | 0 | Rp1.1/2 | 0 | F-F | 12x25 | 0 | 78,5 | 77 | 40 | 0 | 0 | 0 | 0 | 52,5 | 0 | ott.56 | 0 | 0 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Testa c/disp automatico (tipo 6578) | F generica | |
| 65487800200 | 2,67 | 2,67 | 12 | 0 | 0 | 125 | 0 | 0 | 0 | 0 | 25,7 | 0 | 0 | Rp2 | 0 | F-F | 16x30 | 0 | 93,5 | 93 | 50 | 0 | 0 | 0 | 0 | 62,5 | 0 | ott.70 | 0 | 0 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Testa c/disp automatico (tipo 6578) | F generica |
