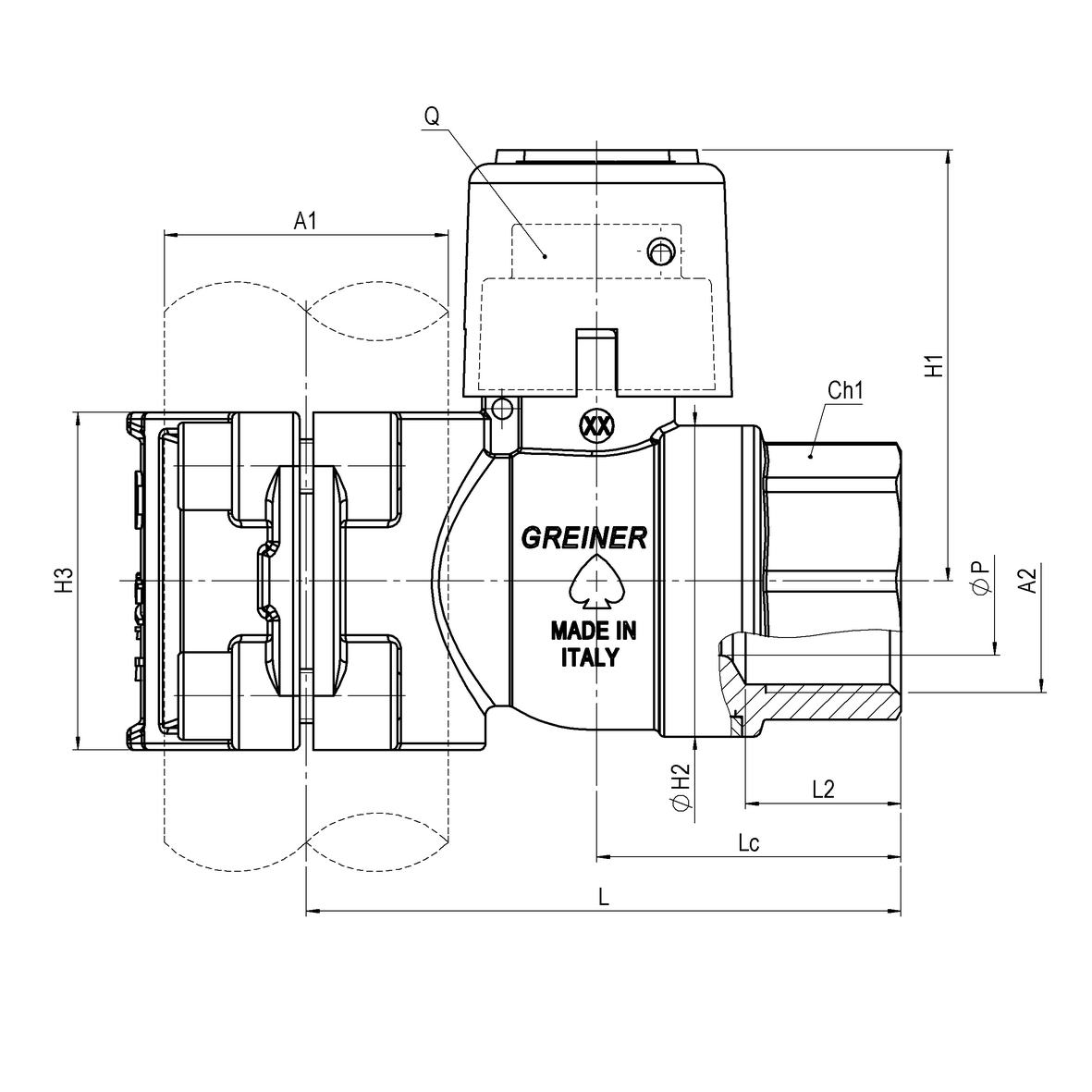

Gas ball valve with flange for sealable connection under pressure, flange side bolts, with yellow sealable cap FEMALE

Application GAS

VALVES
Ball valves for connection under pressure
Reduced

Code	Kg	Box	Master Box	M	F	L	T1	NA	Lb	ØB	L1	L2	Lmax	A1	A2	Combinazione	Q	Lmin	H1	ØH2	ØP	ØDf	i	Ød	nf	Lc	NA	Ch1	Ch2	Ch3	PN-MOP	Kv	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	PCP	cod.	A3	NA	NA
65342500733	0,9	0,9	20	0	0	83,5	0	0	0	0	0	23	0	1	Rp1	t-F	12x25	0	63,5	46	22	0	0	0	0	0	0	ott.38.5	0	0	--	0	0	50	0	0	0	0	0	0	0	0	0	0	0	0	Tubazione standard
65342500742	0,96	0,96	20	0	0	88	0	0	0	0	0	23	0	1.1/4	Rp1	t-F	12x25	0	63,5	46	22	0	0	0	0	45	0	ott.38.5	0	0	--	0	0	50	0	0	0	0	0	0	0	0	0	0	0	0	Tubazione standard
65342500748	1,05	1,05	15	0	0	91,5	0	0	0	0	0	23	0	1.1/2	Rp1	t-F	12x25	0	63,5	46	22	0	0	0	0	45	0	ott.38.5	0	0	--	0	0	50	0	0	0	0	0	0	0	0	0	0	0	0	Tubazione standard
65342500760	2,21	2,21	8	0	0	116	0	0	0	0	0	21,4	0	2	Rp1.1/2	t-F	12x25	0	82,5	77	40	0	0	0	0	52,5	0	ott.56	0	0	--	0	0	64	0	0	0	0	0	0	0	0	0	0	0	0	Tubazione standard

Download scheme
