Gas full-bore ball valve, heavy execution, for PE, protected with SDR11 inlet and PCP, with yellow cap, PE-MALE SC
Application GAS
VALVES
Ball valves with compression fitting for PE pipe, with connection for protective pipe FE
Reduced
Ball valves with compression fitting for PE pipe, with connection for protective pipe FE
Reduced

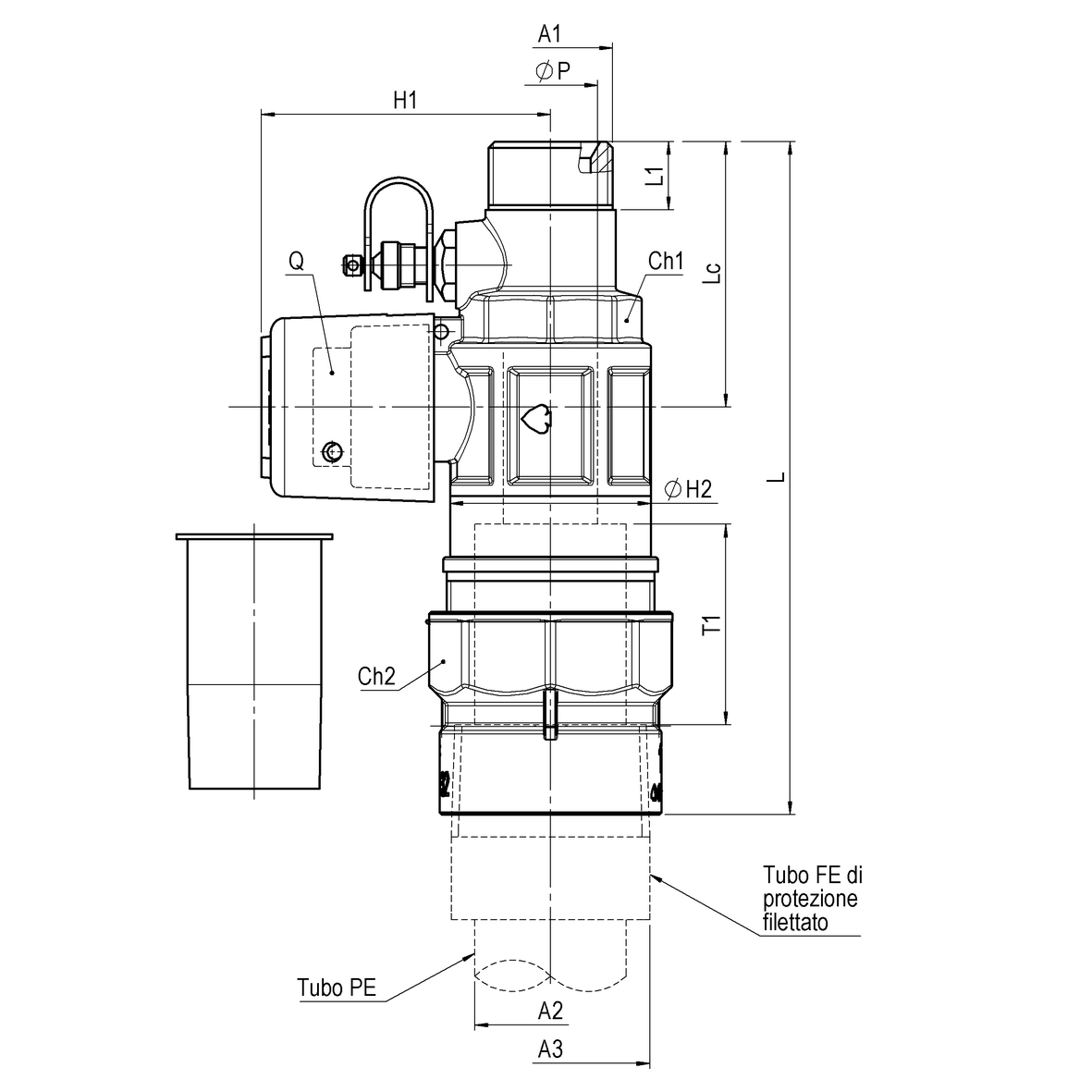

| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65484400613 | 0,96 | 0,96 | 32 | 0 | 0 | 142,5 | 42,5 | 0 | 0 | 0 | 14,5 | 19 | 0 | G3/4 | Ø32 | M-PE | 12x25 | 0 | 61,2 | 42,5 | 20 | 0 | 0 | 0 | 0 | 0 | 0 | ott.32 | ott.48 | - | -- | - | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | G1/4 | - | Rp1.1/4 | - | M Sfero-Conico (JSC) |
