Water full-bore ball valve, standard series, Full Ball model with sealable T-handle FEMALE-FEMALE
Application WATER
VALVES
Ball valves with built-in check valve
Full
Ball valves with built-in check valve
Full

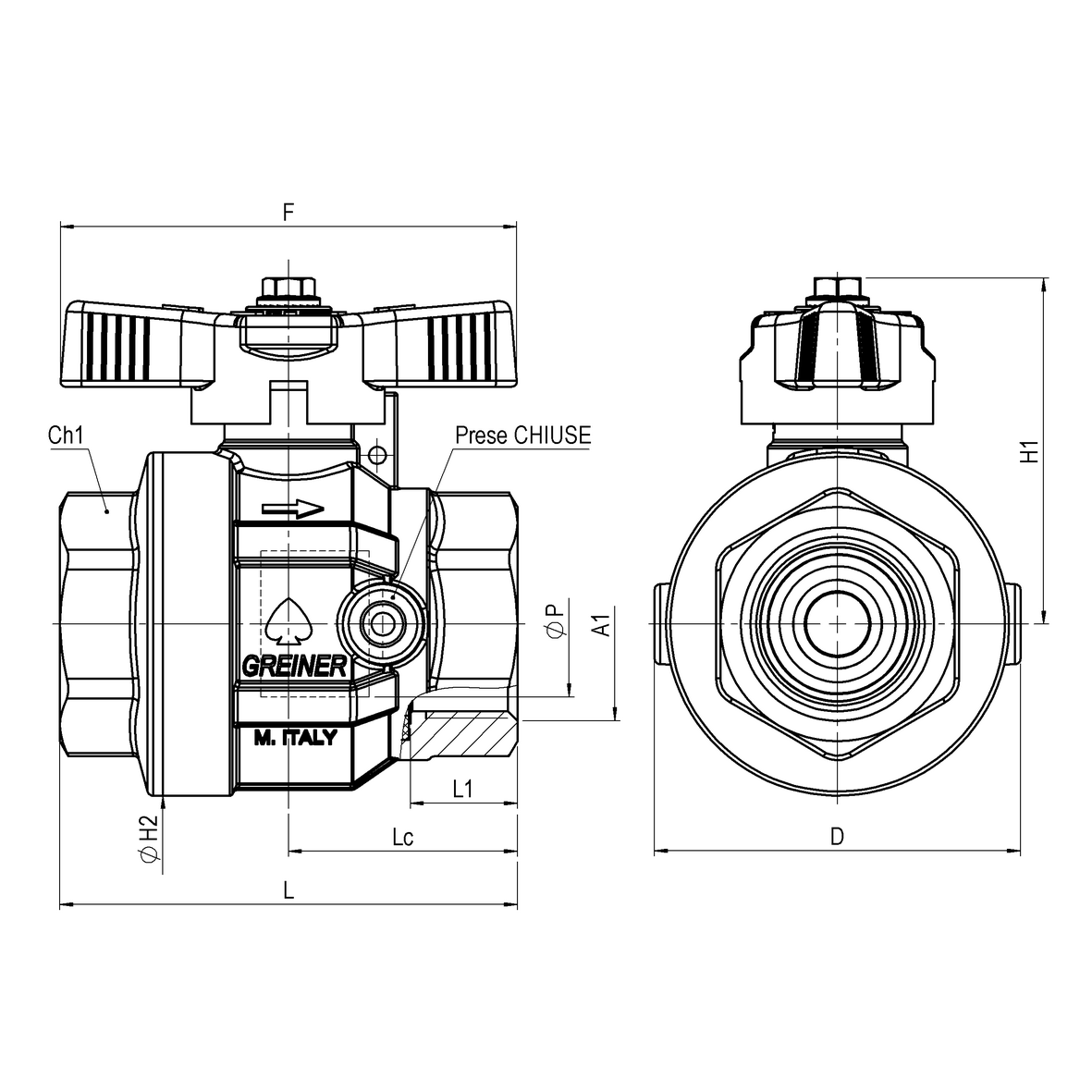

| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 61600000050 | 0,33 | 0,33 | 80 | 0 | 60 | 58 | 0 | 0 | 0 | 0 | 12 | 0 | 0 | G1/2 | 0 | F-F | 0 | 0 | 47 | 40 | 15 | 0 | 0 | 0 | 0 | 29 | 0 | es.27 | 0 | 0 | PN25 | 9,5 | 0 | 0 | 49 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica | |
| 61600000075 | 0,6 | 0,6 | 50 | 0 | 80 | 69 | 0 | 0 | 0 | 0 | 13,5 | 0 | 0 | G3/4 | 0 | F-F | 0 | 0 | 55 | 50 | 18,5 | 0 | 0 | 0 | 0 | 34,5 | 0 | es.33 | 0 | 0 | PN25 | 14,3 | 0 | 0 | 56,5 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica |
