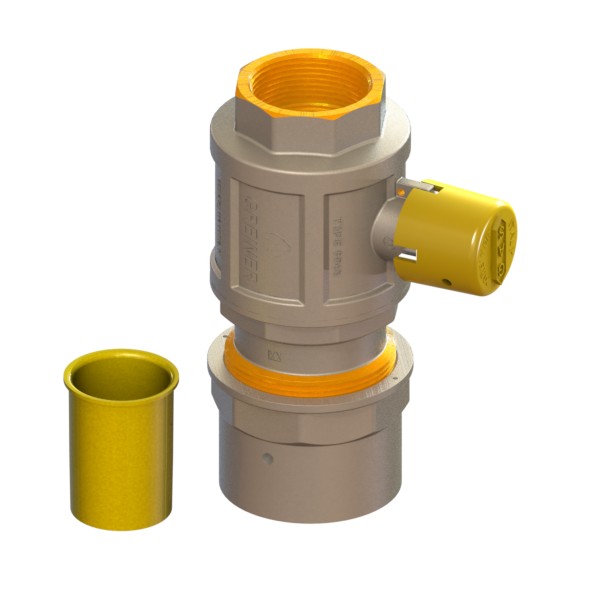

Gas full-bore ball valve, heavy execution, for PE, protected with SDR11 inlet, with yellow sealable cap, PE-FEMALE

Application GAS

VALVES
Ball valves with compression fitting for PE pipe, with connection for protective pipe FE
Full

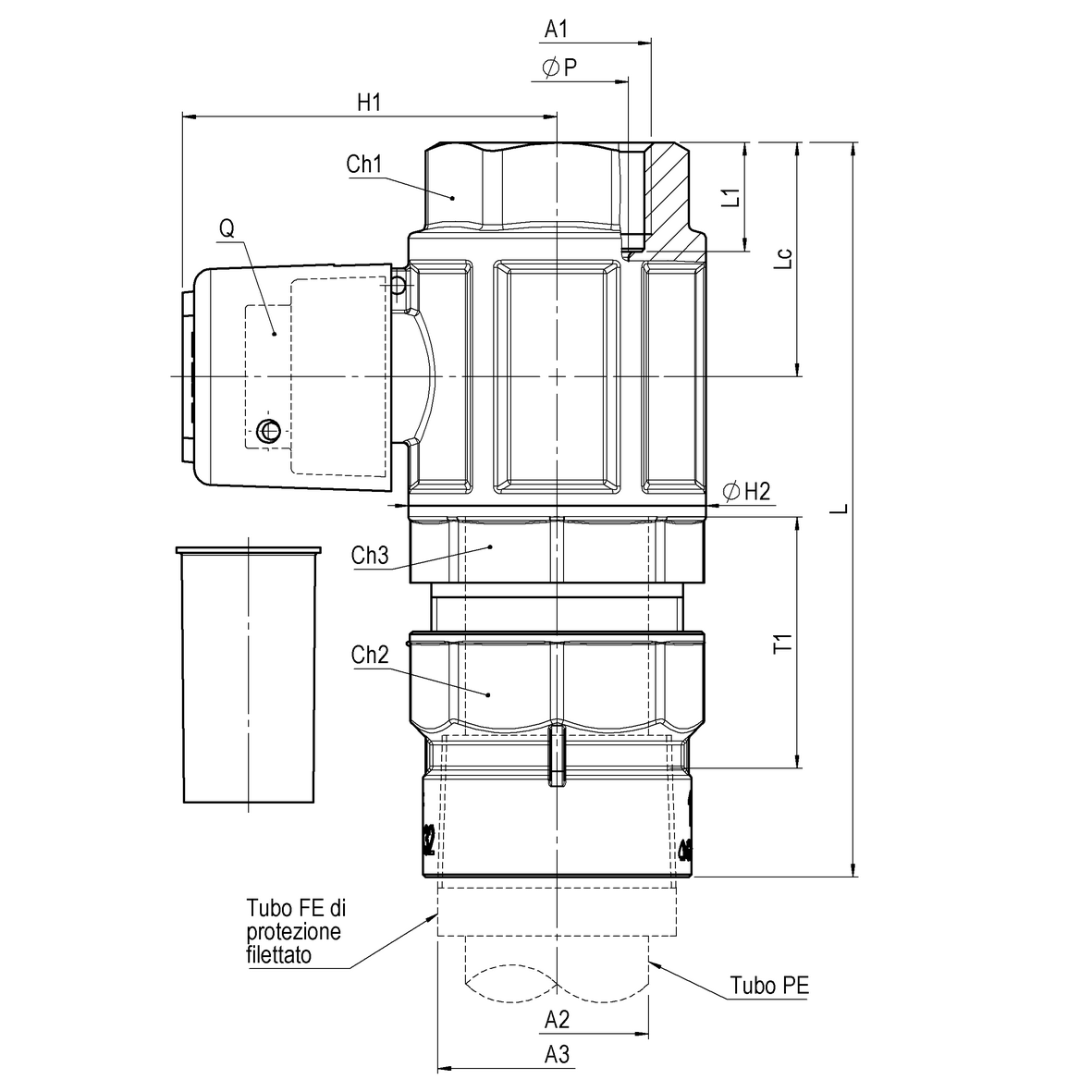

Code	Kg	Box	Master Box	L	T1	L1	A1	A2	Combinazione	Q	H1	ØH2	ØP	Lc	Ch1	Ch2	Ch3	PN-MOP	Kv	PCP	cod.	A3	NA	NA
65484900075	0,74	0,74	48	112,1	40	13,3	Rp3/4	Ø25	F-PE	12x25	61,5	42,5	20	34,25	es.33	ott.39	ott.38.5	--	0	0	0	1	0	F generica
65484900100	1,15	1,15	20	128,5	44	19,1	Rp1	Ø32	F-PE	12x25	65,5	52	25	41	es.41	ott.48	ott.48	--	-	-	-	1.1/4	-	F generica
65484900125	1,66	1,66	20	144	52	21,4	Rp1.1/4	Ø40	F-PE	12x25	75,5	63	32	46,5	ott.50	ott.55	ott.58	--	0	0	0	1.1/2	0	F generica
65484900150	2,53	2,53	10	172,5	62	21,4	Rp1.1/2	Ø50	F-PE	12x25	82,8	77	40	52,5	ott.56	ott.71	ott.67	--	0	0	0	2	0	F generica
65484900200	4,06	4,06	8	202	77,5	25,7	Rp2	Ø50	F-PE	16x30	97	93	50	62,5	ott.70	ott.88.5	ott.84	--	0	0	0	2.1/2	0	F generica
