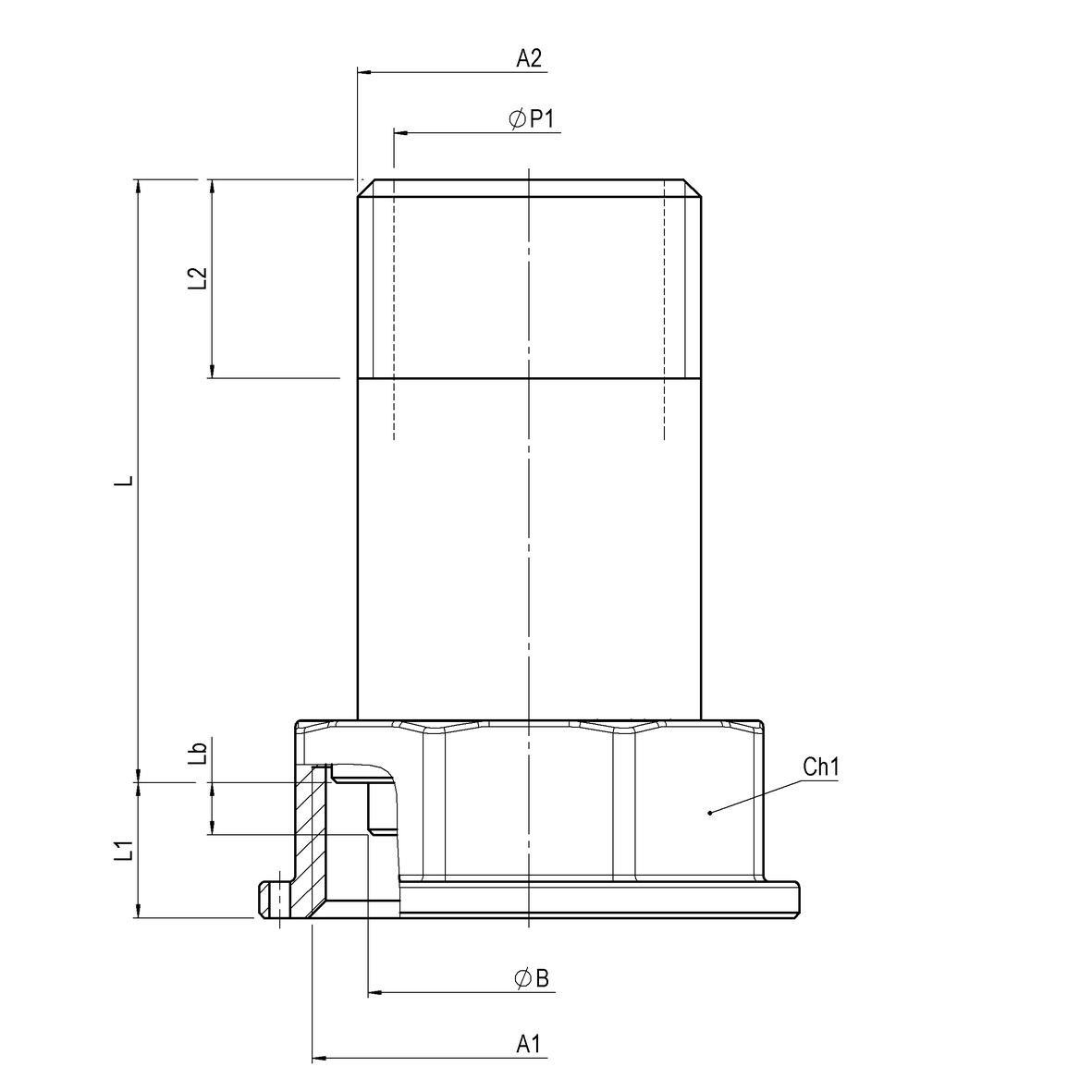

Fitting for gas meter L=58 with MALE-MOVING NUT tail
Application GAS
FITTINGS
Fittings for gas meters
Fittings for gas meters
| Code | Kg | Box | Master Box | NA | L | NA | ØDt | T1 | T2 | Lb | L1 | L2 | Lmax | Combinazione | A1 | A2 | A3 | Lmin | H | ØP1 | ØP2 | ØDf | ØB | ØD1 | ØD2 | NA | i | A4 | Ch1 | Ch2 | Ch3 | Ch4 | Ød | n | nf | NA | NA | NA | NA | NA | NA | NA | PN | PCP | NA | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 34071700619 | 0,25 | 0,25 | 60 | 0 | 58 | 0 | 0 | 0 | 0 | 5 | 13 | 19,1 | 0 | Gi-M | G1.1/4 | G1 | 0 | 0 | 0 | 26 | 0 | 0 | 31 | 0 | 0 | 0 | 0 | 0 | ott.45 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Gi con bordino | M generico | 0 |
