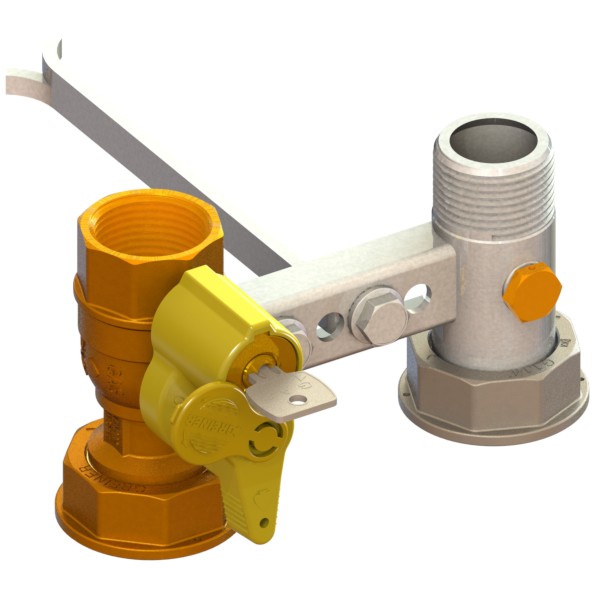

Bracket for gas meter L=110, inlet valve with lock 301 to 340, outlet tail with PCP with twisted fixing plate FEMALE-MOVING NUT-MALE
Application GAS
GAS BRACKETS
Gas meter brackets
Gas meter brackets
| Code | Kg | Box | Master Box | M | F | NA | NA | NA | Le | Lu | Lb1 | Lb2 | ØB1 | Combinazione | Tipo Contatore | A1 | A2 | ØB2 | L1 | L2 | H1 | NA | d | ØT | ØP1 | ØP2 | NA | A3 | Q | PN-MOP | PCP1 | PCP2 | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | cod. | H2 | Ch1 | Ch2 | Ch3 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65160500619 | 0,99 | 0,99 | 15 | 0 | 0 | 0 | 0 | 0 | 77 | 70,5 | 4,5 | 4 | 31 | F-Gi-M | G4 x 110 | Rp1 | G1.1/4 | 30,5 | 19,1 | 19,1 | 32,5 | 0 | 116,5 | 0 | 20 | 0 | 0 | G1 | 0 | MOP 0.5 | G1/8 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 301-340 | 110 | 0 | 0 | 0 | |
| 65165700619 | 0,95 | 0,95 | 15 | 0 | 71 | 0 | 0 | 0 | 77 | 70,5 | 4,5 | 4 | 31 | F-Gi-M | G4 x 110 | Rp1 | G1.1/4 | 30,5 | 19,1 | 19,1 | 32,5 | 0 | 0 | 0 | 20 | 0 | 0 | G1 | - | MOP 0.5 | G1/8 | - | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 301-340 | 110 | es.38 | ott.45 | - |
