Water full-bore ball valve, standard series L=68, with sealable cap MALE-FEMALE
Application WATER
VALVES
Full-bore ball valves
Full
Full-bore ball valves
Full

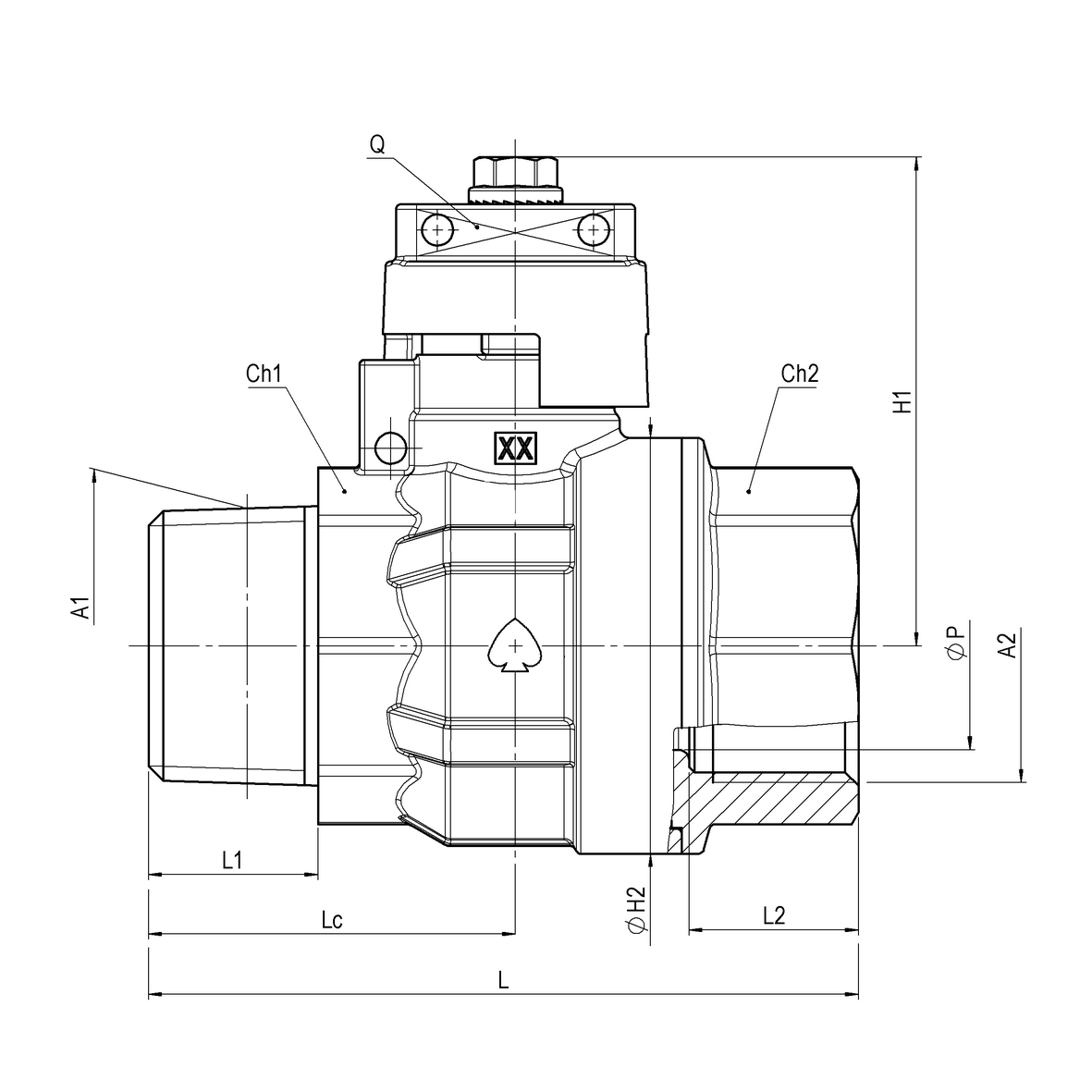

| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65886000075 | 0,35 | 0,35 | 80 | 0 | 0 | 68,3 | 0 | 0 | 0 | 0 | 16,3 | 16,3 | 0 | R3/4 | Rp3/4 | M-F | 12x23 | 0 | 47 | 40 | 20 | 0 | 0 | 0 | 0 | 35,3 | 0 | ott.32 | ott.32 | - | PN40 | - | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | - | - | - | - | M generico |
