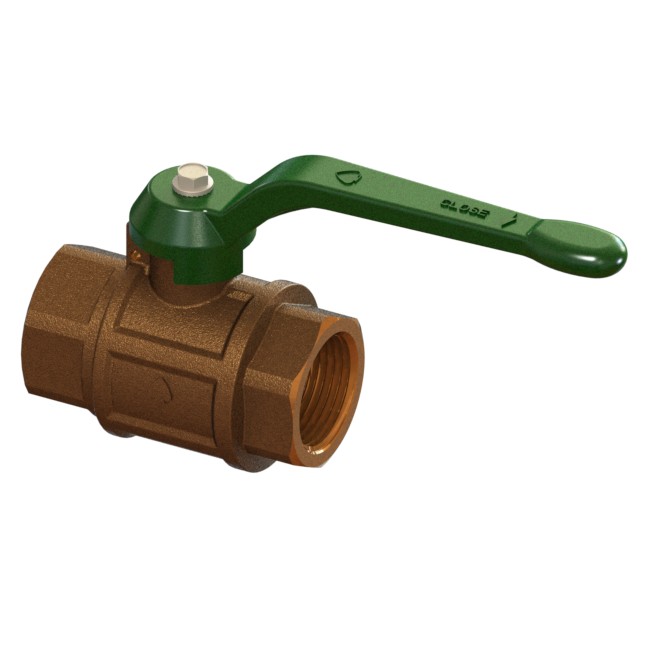

Water full-bore, bronze ball valve, heavy execution, with handle FEMALE-FEMALE

Application WATER

VALVES
Bronze full-bore ball valves
Full

Code	Kg	Box	Master Box	M	L	L1	A1	A2	Combinazione	Q	H1	ØH2	ØP	Lc	Ch1	Ch2	Ch3	PN-MOP	Kv	PCP	cod.	A3	NA	NA
65430500050	0,29	0,29	100	100	58,4	15	Rp1/2	-	F-F	-	53,2	33	15	29,2	es.27	-	-	PN100	-	-	-	-	-	F generica
65430500075	0,52	0,52	60	130	68,5	16,3	Rp3/4	-	F-F	-	66	42,5	20	34,25	es.33	-	-	PN64	-	-	-	-	-	F generica
65430500100	0,78	0,78	40	130	82	19,1	Rp1	0	F-F	0	70,2	52	25	41	es.41	0	0	PN64	0	0	0	0	0	F generica
65430500125	1,14	1,14	20	160	93	21,4	Rp1.1/4	0	F-F	0	76,2	63	32	46,5	ott.50	0	0	PN50	0	0	0	0	0	F generica
65430500150	1,66	1,66	16	160	105	21,4	Rp1.1/2	0	F-F	0	83,2	77	40	52,5	ott.56	0	0	PN50	0	0	0	0	0	F generica
65430500200	2,9	2,9	6	230	125	25,7	Rp2	0	F-F	0	114	93	50	62,5	ott.70	0	0	PN40	0	0	0	0	0	F generica

Taps and fittings Dept.
