Water full-bore, bronze ball valve, heavy execution, with truncated pyramid-shaped cap FEMALE-FEMALE

Application WATER

VALVES
Bronze full-bore ball valves
Full

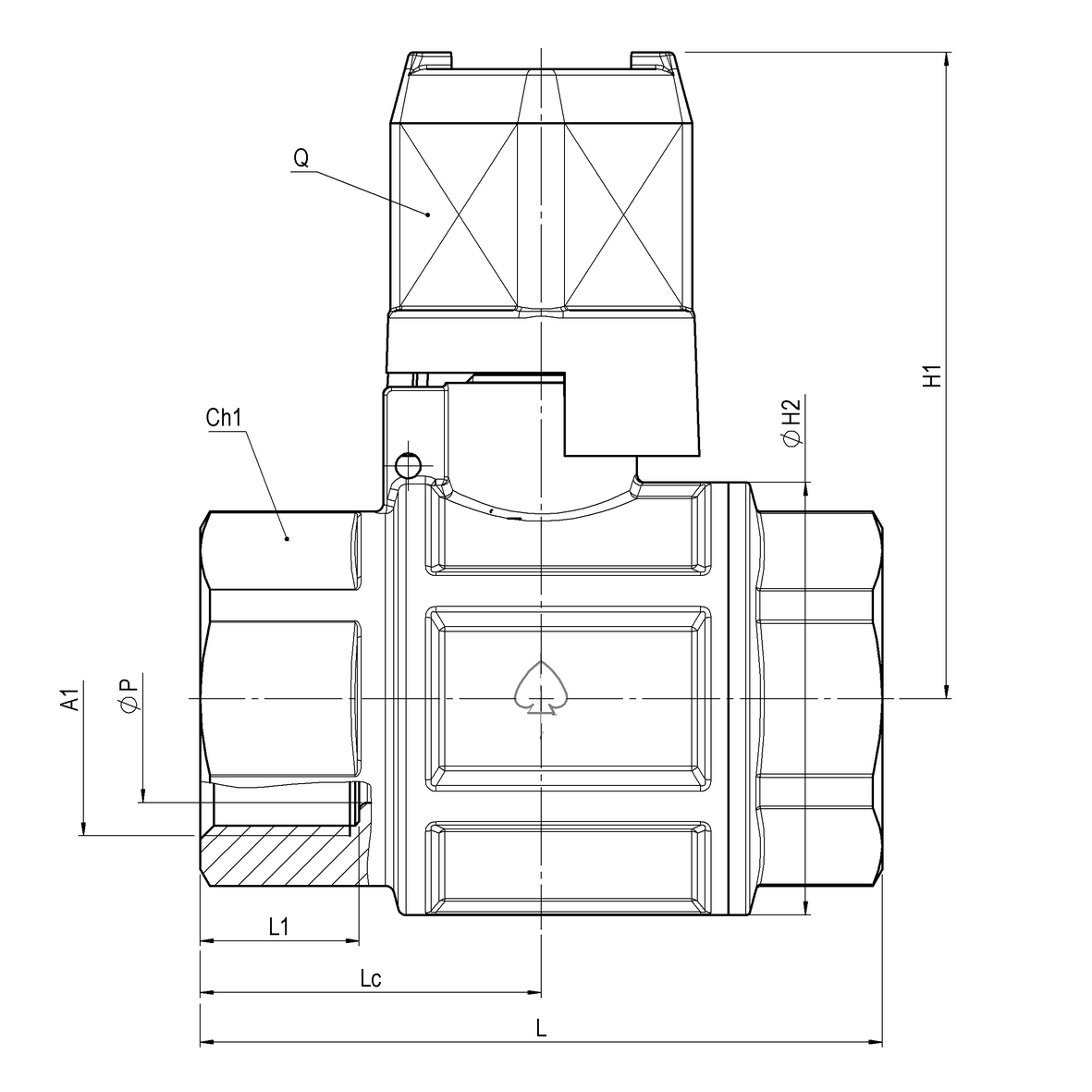

Code	Kg	Box	Master Box	L	L1	A1	A2	Combinazione	Q	H1	ØH2	ØP	Lc	Ch1	Ch2	Ch3	PN-MOP	Kv	PCP	cod.	A3	NA	NA
65450500050	0,4	0,4	80	58,4	15	Rp1/2	-	F-F	28	69,7	33	15	29,2	es.27	-	-	PN100	-	-	-	-	-	F generica
65450500075	0,61	0,61	60	68,5	16,3	Rp3/4	0	F-F	28	73,4	42,5	20	34,25	es.33	0	0	PN64	0	0	0	0	0	F generica
65450500100	0,87	0,87	40	82	19,1	Rp1	0	F-F	28	77	52	25	41	es.41	0	0	PN64	0	0	0	0	0	F generica
65450500125	1,2	1,2	20	93	21,4	Rp1.1/4	0	F-F	28	88,5	63	32	46,5	ott.50	0	0	PN50	0	0	0	0	0	F generica
65450500150	1,72	1,72	16	105	21,4	Rp1.1/2	0	F-F	28	95,5	77	40	52,5	ott.56	0	0	PN50	0	0	0	0	0	F generica
65450500200	2,94	2,94	10	125	25,7	Rp2	0	F-F	28	108	93	50	62,5	ott.70	0	0	PN40	0	0	0	0	0	F generica

Taps and fittings Dept.
