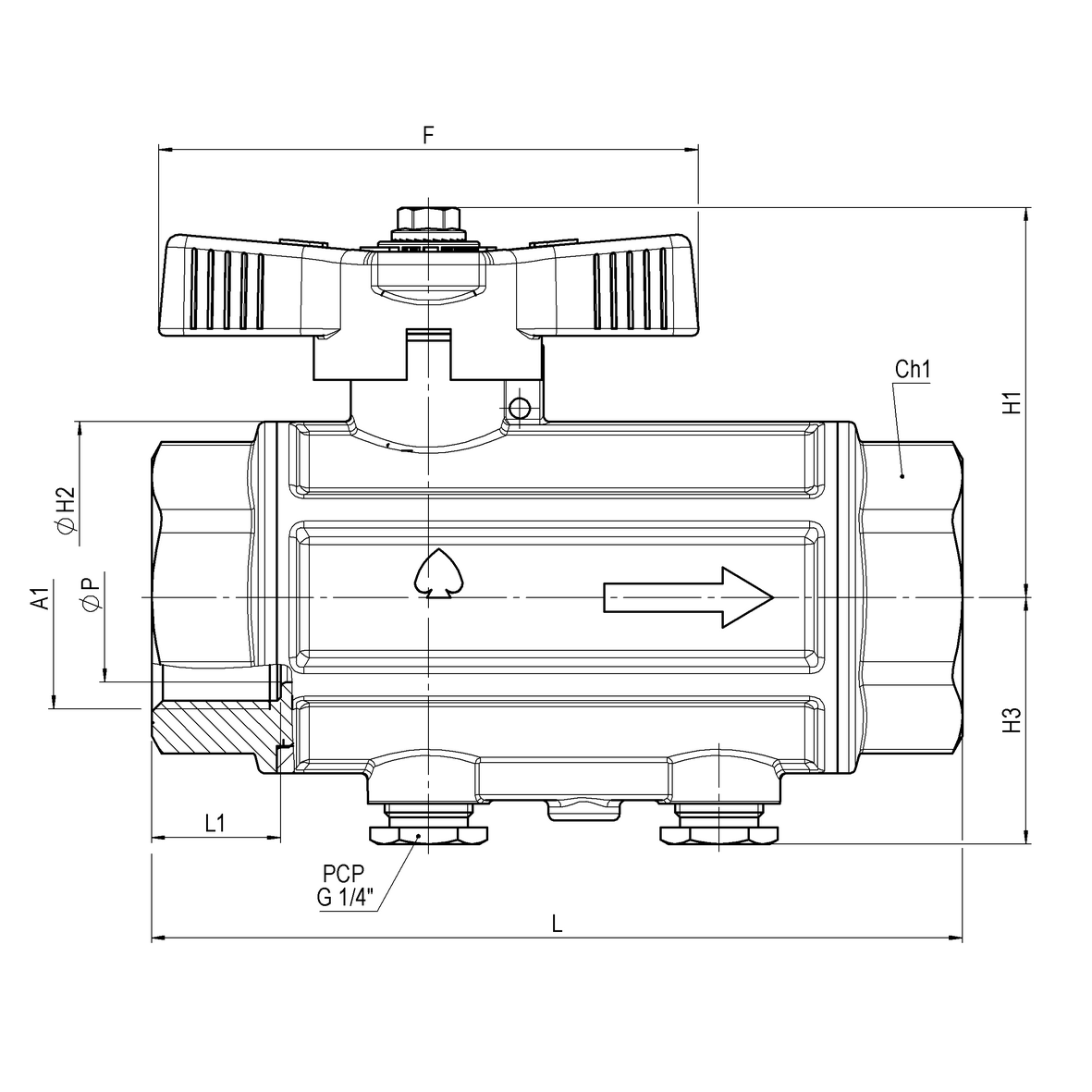

Water full-bore ball valve, heavy execution with in-line check valve and 2 drains with sealable T-handle, FEMALE-FEMALE
Application WATER
VALVES
Ball valves with built-in check valve
Full
Ball valves with built-in check valve
Full
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65815800050 | 0,39 | 0,39 | 72 | 0 | 60 | 81 | 0 | 0 | 0 | 0 | 15 | 0 | 0 | Rp1/2 | 0 | F-F | 0 | 0 | 47,7 | 33 | 15 | 0 | 0 | 0 | 0 | 0 | 0 | es.27 | 0 | 0 | PN64 | 8 | 0 | 28 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | G1/4 | 0 | 0 | 0 | F generica | |
| 65815800075 | 0,69 | 0,69 | 40 | 0 | 80 | 99 | 0 | 0 | 0 | 0 | 16,3 | 0 | 0 | Rp3/4 | 0 | F-F | 0 | 0 | 53,4 | 42,5 | 20 | 0 | 0 | 0 | 0 | 0 | 0 | es.33 | 0 | 0 | PN50 | 12,5 | 0 | 32 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | G1/4 | 0 | 0 | 0 | F generica | |
| 65815800100 | 1,11 | 1,11 | 32 | 0 | 80 | 120 | 0 | 0 | 0 | 0 | 19,1 | 0 | 0 | Rp1 | 0 | F-F | 0 | 0 | 57,7 | 52 | 25 | 0 | 0 | 0 | 0 | 0 | 0 | es.41 | 0 | 0 | PN40 | 17,5 | 0 | 36,5 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | G1/4 | 0 | 0 | 0 | F generica |
