Water full-bore ball valve, heavy execution, for PE pipe with compression fitting, with handle, MALE-PE

Application WATER

VALVES
Ball valves with compression-fitting for PE pipe
Full

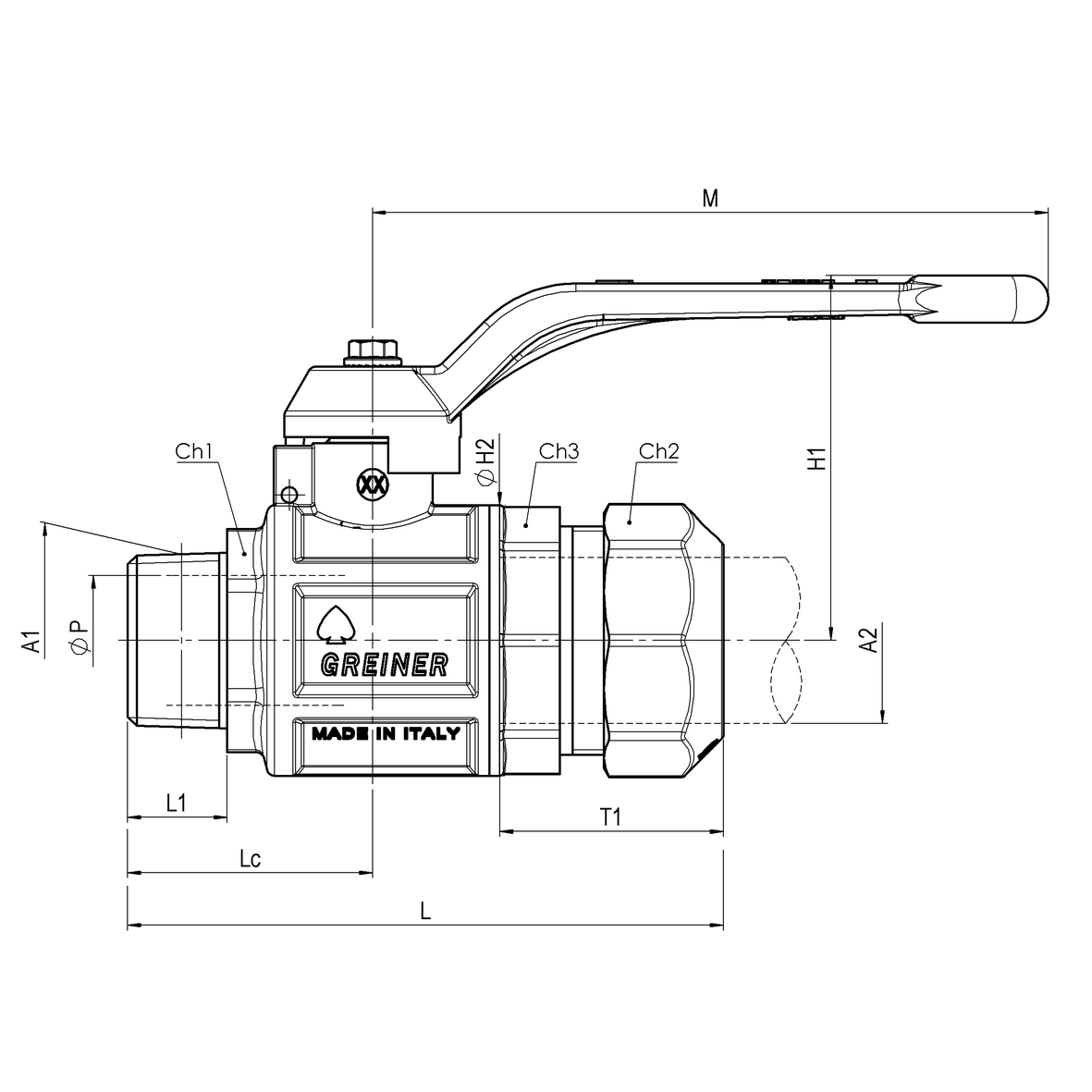

Code	Kg	Box	Master Box	M	L	T1	L1	A1	A2	Combinazione	H1	ØH2	ØP	Lc	Ch1	Ch2	Ch3	PN-MOP	NA
65432400050	0,35	0,35	100	100	86	0	15	R1/2	Ø20	M-PE	53	0	15	0	0	0	0	PN16	M generico
65432400075	0,6	0,6	54	130	100	0	16,3	R3/4	Ø25	M-PE	66	0	20	0	0	0	0	PN16	M generico
65432400100	0,94	0,94	40	130	115	43	19,1	R1	Ø32	M-PE	70,2	52	25	47,1	es.38	ott.49	ott.48	PN16	M generico
65432400125	1,47	1,47	18	160	133	0	21,4	R1.1/4	Ø40	M-PE	76	0	32	0	0	0	0	PN16	M generico
65432400150	2,1	2,1	18	160	153	0	21,4	R1.1/2	Ø50	M-PE	83	0	40	0	0	0	0	PN16	M generico
65432400200	4,03	4,03	6	230	194	0	25,7	R2	Ø63	M-PE	113,5	0	50	0	0	0	0	PN16	M generico
