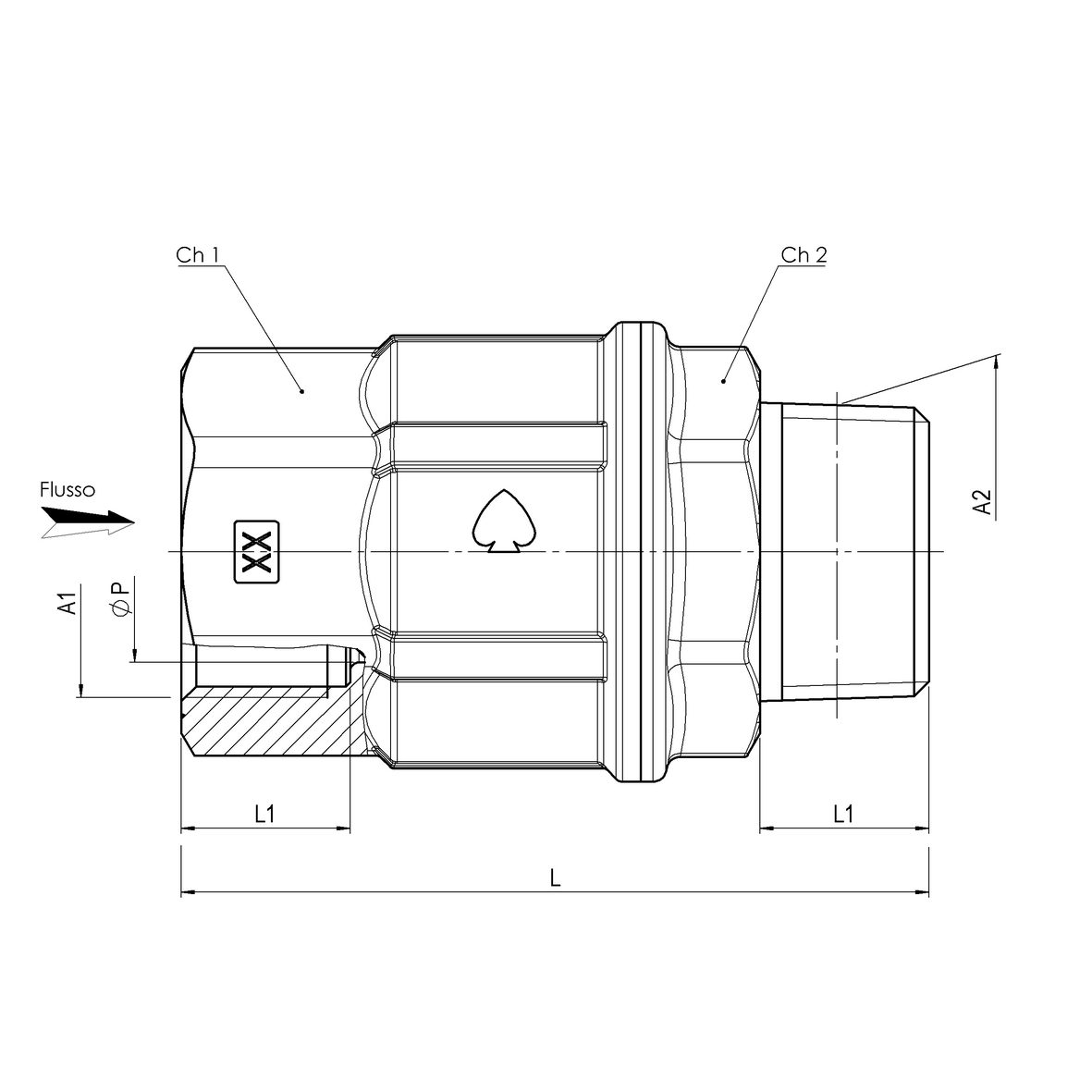

Full-bore spring check valve, heavy execution, MALE-FEMALE

Application WATER

VALVES
Spring check valves
Full

Code	Kg	Box	Master Box	M	F	L	T1	NA	Lb	ØB	L1	L2	Lmax	A1	A2	Combinazione	Q	Lmin	H1	ØH2	ØP	ØDf	i	Ød	nf	Lc	NA	Ch1	Ch2	Ch3	PN-MOP	Kv	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	PCP	cod.	A3	NA	NA
11602700050	0,18	0,18	200	0	0	64,5	0	0	0	0	15	0	0	Rp1/2	R1/2	F-M	0	0	0	33	15	0	0	0	0	0	0	es.27	es.27	0	PN64	8	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica
11602700075	0,3	0,3	100	0	0	74,5	0	0	0	0	16,3	16,3	0	Rp3/4	R3/4	F-M	0	0	0	42,5	20	0	0	0	0	0	0	es.33	es.33	0	PN50	12,5	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica
11602700100	0,5	0,5	60	0	0	84,5	0	0	0	0	19,1	0	0	Rp1	R1	F-M	0	0	0	52	25	0	0	0	0	0	0	es.41	es.41	0	PN40	17,5	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica
11602700125	0,68	0,68	48	0	0	100	0	0	0	0	21,4	21,4	0	Rp1.1/4	R1.1/4	F-M	0	0	0	63	32	0	0	0	0	0	0	ott.50	ott.44	0	PN40	36	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica
11602700150	1,07	1,07	30	0	0	11,5	0	0	0	0	21,4	21,4	0	Rp1.1/2	R1.1/2	F-M	0	0	0	77	40	0	0	0	0	0	0	ott.56	ott.55	0	PN40	56	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica
11602700200	1,74	1,74	18	0	0	129	0	0	0	0	25,7	25,7	0	Rp2	R2	F-M	0	0	0	93	50	0	0	0	0	0	0	ott.70	ott.67	0	PN25	81	0	0	0	0	0	0	0	0	0	0	0	0	0	0	F generica

Download scheme
