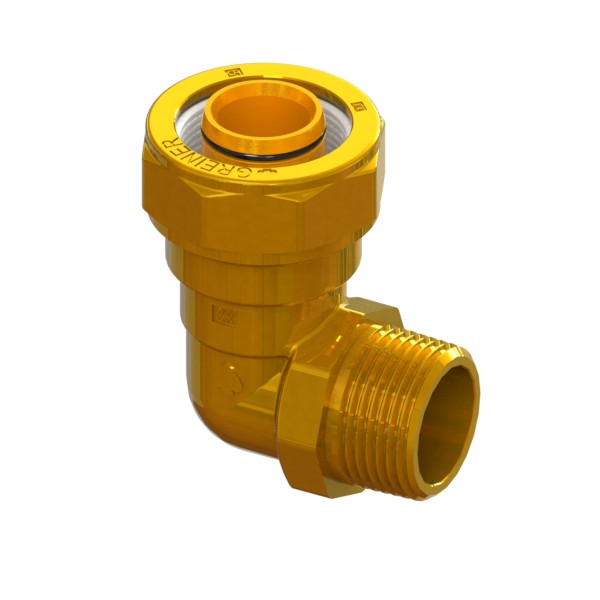

Right-angle compression fitting in CR brass for barrier multi-layer PE pipe, PE-MALE
Application WATER
FITTINGS
Fittings for PE pipe
Fittings for PE pipe
| Code | Kg | Box | Master Box | NA | L | NA | ØDt | T1 | T2 | Lb | L1 | L2 | Lmax | Combinazione | A1 | A2 | A3 | Lmin | H | ØP1 | ØP2 | ØDf | ØB | ØD1 | ØD2 | NA | i | A4 | Ch1 | Ch2 | Ch3 | Ch4 | Ød | n | nf | NA | NA | NA | NA | NA | NA | NA | PN | PCP | NA | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 43772300075 | 0,29 | 0,29 | 120 | 0 | 34,5 | 0 | 0 | 27 | 0 | 0 | 16,3 | 0 | 0 | PE-M | 3/4 | R3/4 | 0 | 0 | 56,8 | 20 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | PE serraggio meccanico MTSC | M generico | 0 | |
| 43772300100 | 0,45 | 0,45 | 60 | 0 | 42,1 | 0 | 0 | 25,2 | 0 | 0 | 0 | 19,1 | 0 | PE-M | 1 | R1 | 0 | 0 | 60,2 | 25 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ott.48 | ott.39 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | PE serraggio meccanico MTSC | M generico | 0 | |
| 43772300125 | 0,75 | 0,75 | 40 | 0 | 48,4 | 0 | 0 | 33 | 0 | 0 | 21,4 | 0 | 0 | PE-M | 1.1/4 | R1.1/4 | 0 | 0 | 76,5 | 32 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | PE serraggio meccanico MTSC | M generico | 0 | |
| 43772300150 | 1,28 | 1,28 | 24 | 0 | 53,4 | 0 | 0 | 40,7 | 0 | 0 | 21,4 | 0 | 0 | PE-M | 1.1/2 | R1.1/2 | 0 | 0 | 94,5 | 40 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | PE serraggio meccanico MTSC | M generico | 0 | |
| 43772300200 | 2 | 2 | 16 | 0 | 64,7 | 0 | 67,5 | 44,7 | 0 | 0 | 25,7 | 0 | 0 | PE-M | 2 | R2 | 0 | 0 | 103 | 50 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ott.88.5 | ott.67 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | PE serraggio meccanico MTSC | M generico | 0 |
