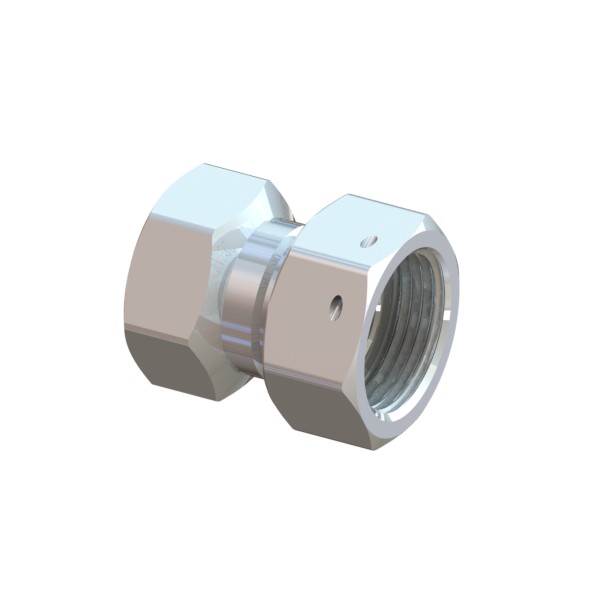

Chrome-plated fitting for water meter FEMALE-MOVING NUT
Application WATER
FITTINGS
Fittings for water meters
Fittings for water meters
| Code | Kg | Box | Master Box | NA | L | NA | ØDt | T1 | T2 | Lb | L1 | L2 | Lmax | Combinazione | A1 | A2 | A3 | Lmin | H | ØP1 | ØP2 | ØDf | ØB | ØD1 | ØD2 | NA | i | A4 | Ch1 | Ch2 | Ch3 | Ch4 | Ød | n | nf | NA | NA | NA | NA | NA | NA | NA | PN | PCP | NA | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 74640300075 | 0,11 | 0,11 | 300 | 0 | 31 | 0 | 0 | 0 | 0 | 0 | 11,5 | 9,2 | 0 | F-Gi | G3/4 | G3/4 | 0 | 0 | 0 | 16 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | es.32 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica | Dado piana | 0 | |
| 74640300608 | 0,1 | 0,1 | 320 | 0 | 31 | 0 | 0 | 0 | 0 | 0 | 11,5 | 9,2 | 0 | F-Gi | G1/2 | G3/4 | 0 | 0 | 0 | 16 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | es.25 | es.32 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica | Dado piana | 0 |
