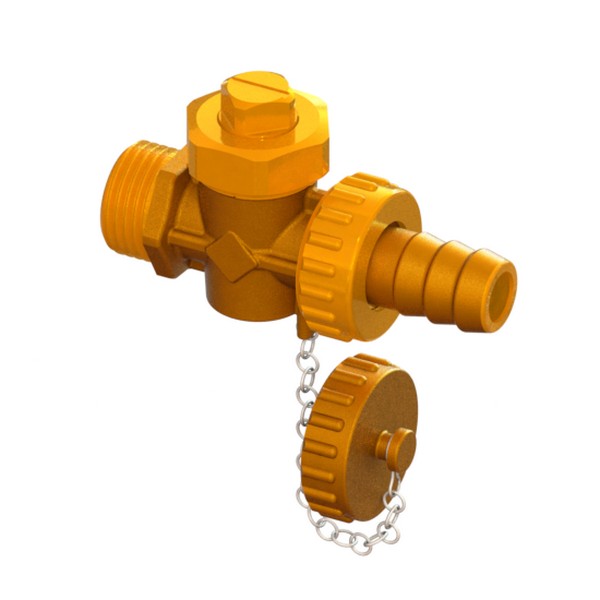

Brass conical plug valve for boiler outlet with hose connection, plug and chain, with square head MALE-PG
Application WATER
VALVES & COCKS
Conical plug valves
Conical plug valves
| Code | Kg | Box | Master Box | M | F | ØV | L | NA | C | D | Lb | ØB | L1 | Ch1 | Ch2 | Ch3 | Combinazione | L2 | H1 | ØH2 | ØP | H2 | NA | NA | NA | NA | NA | A1 | A2 | Q | PN | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | NA | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 55017000038 | 0,14 | 0,14 | 240 | 0 | 0 | 0 | 73 | 0 | 0 | 0 | 0 | 0 | 10 | 0 | 0 | 0 | M-pg | 0 | 29 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | G3/8 | 0 | 10 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | D semplice | Quadro di manovra | 0 | |
| 55017000050 | 0,16 | 0,16 | 240 | 0 | 0 | 0 | 76 | 0 | 0 | 0 | 0 | 0 | 11 | es.22 | es.25 | 0 | M-pg | 23 | 30 | 0 | 12 | 0 | 0 | 0 | 0 | 0 | 0 | G1/2 | Ø15 | 12 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | D semplice | Quadro di manovra | 0 | |
| 55017000075 | 0,33 | 0,33 | 120 | 0 | 0 | 0 | 98 | 0 | 0 | 0 | 0 | 0 | 12 | 0 | 0 | 0 | M-pg | 0 | 39 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | G3/4 | 0 | 14 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | D semplice | Quadro di manovra | 0 |
