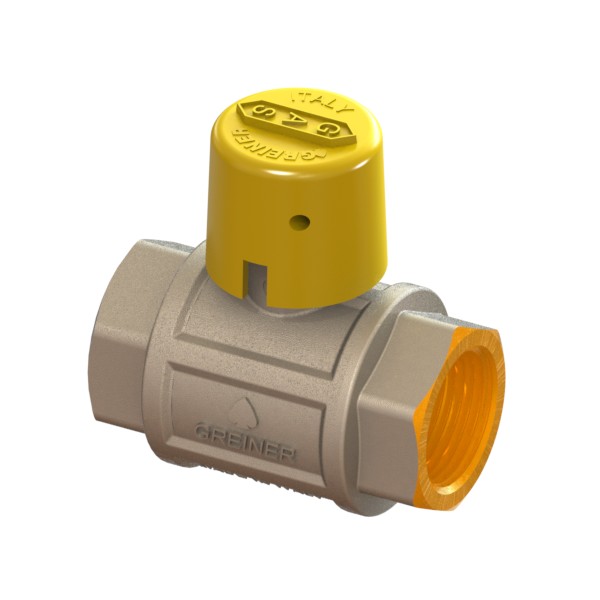

Gas full-bore ball valve, heavy execution, with yellow sealable cap FEMALE-FEMALE
Application GAS
VALVES
Full-bore ball valves
Full
Full-bore ball valves
Full
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65489500025 | 0,22 | 0,22 | 120 | 0 | 0 | 50 | 0 | 0 | 0 | 0 | 11 | 0 | 0 | Rp1/4 | 0 | F-F | 12x23 | 0 | 50 | 25,5 | 10 | 0 | 0 | 0 | 0 | 25 | 0 | es.22 | 0 | 0 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica | |
| 65489500050 | 0,29 | 0,29 | 120 | 0 | 0 | 58,4 | 0 | 0 | 0 | 0 | 15 | 0 | 0 | Rp1/2 | 0 | F-F | 12x23 | 0 | 53 | 33 | 15 | 0 | 0 | 0 | 0 | 29,2 | 0 | es.27 | 0 | 0 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica | |
| 65489500075 | 0,54 | 0,54 | 60 | 0 | 0 | 68,5 | 0 | 0 | 0 | 0 | 16,3 | 0 | 0 | Rp3/4 | 0 | F-F | 12x25 | 0 | 62 | 42,5 | 20 | 0 | 0 | 0 | 0 | 34,25 | 0 | es.33 | 0 | 0 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica | |
| 65489500100 | 0,82 | 0,82 | 40 | 0 | 0 | 82 | 0 | 0 | 0 | 0 | 19,1 | 0 | 0 | Rp1 | 0 | F-F | 12x25 | 0 | 66 | 52 | 25 | 0 | 0 | 0 | 0 | 41 | 0 | es.41 | 0 | 0 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica | |
| 65489500125 | 1,16 | 1,16 | 20 | 0 | 0 | 93 | 0 | 0 | 0 | 0 | 21,4 | 0 | 0 | Rp1.1/4 | 0 | F-F | 12x25 | 0 | 76 | 63 | 32 | 0 | 0 | 0 | 0 | 46,5 | 0 | ott.50 | 0 | 0 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica | |
| 65489500150 | 1,74 | 1,74 | 16 | 0 | 0 | 105 | 0 | 0 | 0 | 0 | 21,4 | 0 | 0 | Rp1.1/2 | 0 | F-F | 12x25 | 0 | 83 | 77 | 40 | 0 | 0 | 0 | 0 | 52,5 | 0 | ott.56 | 0 | 0 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica | |
| 65489500200 | 2,69 | 2,69 | 10 | 0 | 0 | 125 | 0 | 0 | 0 | 0 | 25,7 | 0 | 0 | Rp2 | 0 | F-F | 16x30 | 0 | 97 | 93 | 50 | 0 | 0 | 0 | 0 | 62,5 | 0 | ott.70 | 0 | 0 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica | |
| 65489500250 | 4,32 | 4,32 | 6 | 0 | 0 | 150 | 0 | 0 | 0 | 0 | 30,2 | 0 | 0 | Rp2.1/2 | 0 | F-F | 16x30 | 0 | 107 | 114 | 63 | 0 | 0 | 0 | 0 | 75 | 0 | ott.86 | 0 | 0 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica | |
| 65489500300 | 7,21 | 7,21 | 2 | 0 | 0 | 179 | 0 | 0 | 0 | 0 | 33,3 | 0 | 0 | Rp3 | 0 | F-F | 20x36 | 0 | 135 | 141 | 79 | 0 | 0 | 0 | 0 | 89,5 | 0 | ott.102 | 0 | 0 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica | |
| 65489500400 | 12,26 | 12,26 | 1 | 0 | 0 | 219 | 0 | 0 | 0 | 0 | 39 | 0 | 0 | Rp4 | 0 | F-F | 20x36 | 0 | 152,5 | 177 | 100 | 0 | 0 | 0 | 0 | 109,5 | 0 | ott.129 | 0 | 0 | -- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | F generica |
