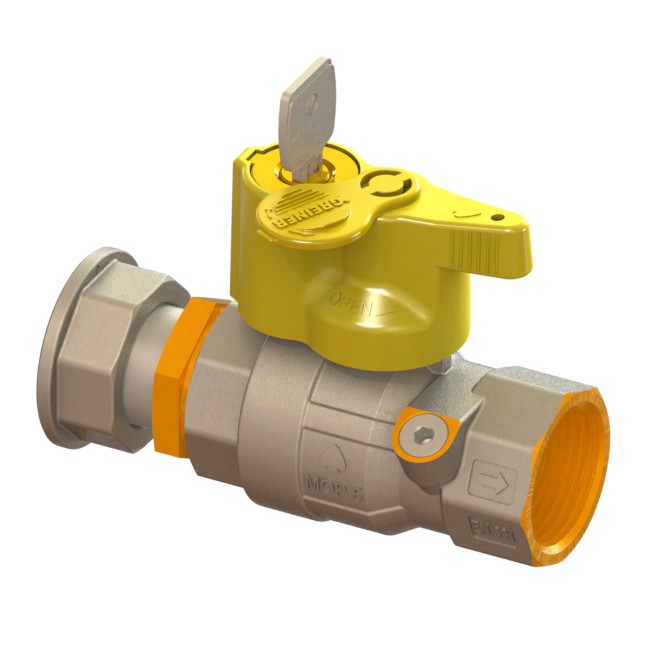

Internal system check ball valve UNI-7129 with 1 PCP with saIRONty and arrearage lock 401 to 460 MOVING NUT-FEMALE
Application GAS
VALVES
Ball valves for internal plant inspection UNI-7129
Full
Ball valves for internal plant inspection UNI-7129
Full
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65898400100 | 0,83 | 0,83 | 30 | 0 | 71 | 106 | 0 | 0 | 3 | 23 | 11 | 19 | 0 | G1 | Rp1 | Gi-F | 0 | 0 | 61 | 46 | 22 | 0 | 0 | 0 | 0 | 44 | 0 | ott.37 | ott.38.5 | es.34 | -- | 0 | 23 | 0 | 50,8 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | G1/8 | 401-460 | 0 | Serratura | Gi con bordino | |
| 65898400613 | 0,6 | 0,6 | 50 | 0 | 71 | 86 | 0 | 0 | 3 | 23 | 11 | 16,3 | 0 | G1 | Rp3/4 | Gi-F | 0 | 0 | 59 | 40 | 20 | 0 | 0 | 0 | 0 | 38 | 0 | ott.37 | ott.32 | 0 | -- | 0 | 22 | 0 | 47,5 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | G1/8 | 401-460 | 0 | Serratura | Gi con bordino |
