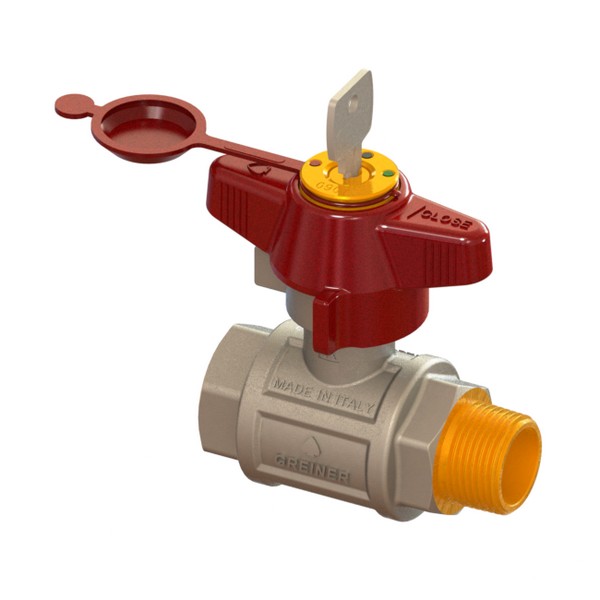

Water full-bore ball valve, heavy execution, arrearage lock with 2 pos. automatic lock, 0901 with red T-handle, MALE-FEMALE

Application WATER

VALVES
Ball valves with tamper-proof device
Full

Code	Kg	Box	Master Box	F	L	L1	L2	A1	A2	Combinazione	H1	ØH2	ØP	Lc	Ch1	Ch2	PN-MOP	cod.	NA	NA
65840800050	0,51	0,51	24	80	70,9	15	15	Rp1/2	R1/2	F-M	69	33	15	0	es.27	es.27	PN100	901	Serratura	F generica
65840800075	0,7	0,7	24	80	82,8	16,3	16,3	Rp3/4	R3/4	F-M	72,7	42,5	20	34,25	es.33	es.33	PN64	901	Serratura	F generica
65840800100	1,04	1,04	20	80	96,1	19,1	19,1	Rp1	R1	F-M	77,2	52	25	41	es.41	es.41	PN64	901	Serratura	F generica
65840800125	1,6	1,6	18	140	108,9	21,4	21,4	Rp1.1/4	R1.1/4	F-M	91,2	63	32	46,5	es.44	ott.50	PN50	901	Serratura	F generica
65840800150	2,18	2,18	18	140	120,4	21,4	21,4	Rp1.1/2	R1.1/2	F-M	98,2	77	40	52,5	ott.55	ott.56	PN50	901	Serratura	F generica
65840800200	3,22	3,22	6	140	142,7	25,7	25,7	Rp2	R2	F-M	106,2	93	50	62,5	ott.67	ott.70	PN40	901	Serratura	F generica

Taps and fittings Dept.
