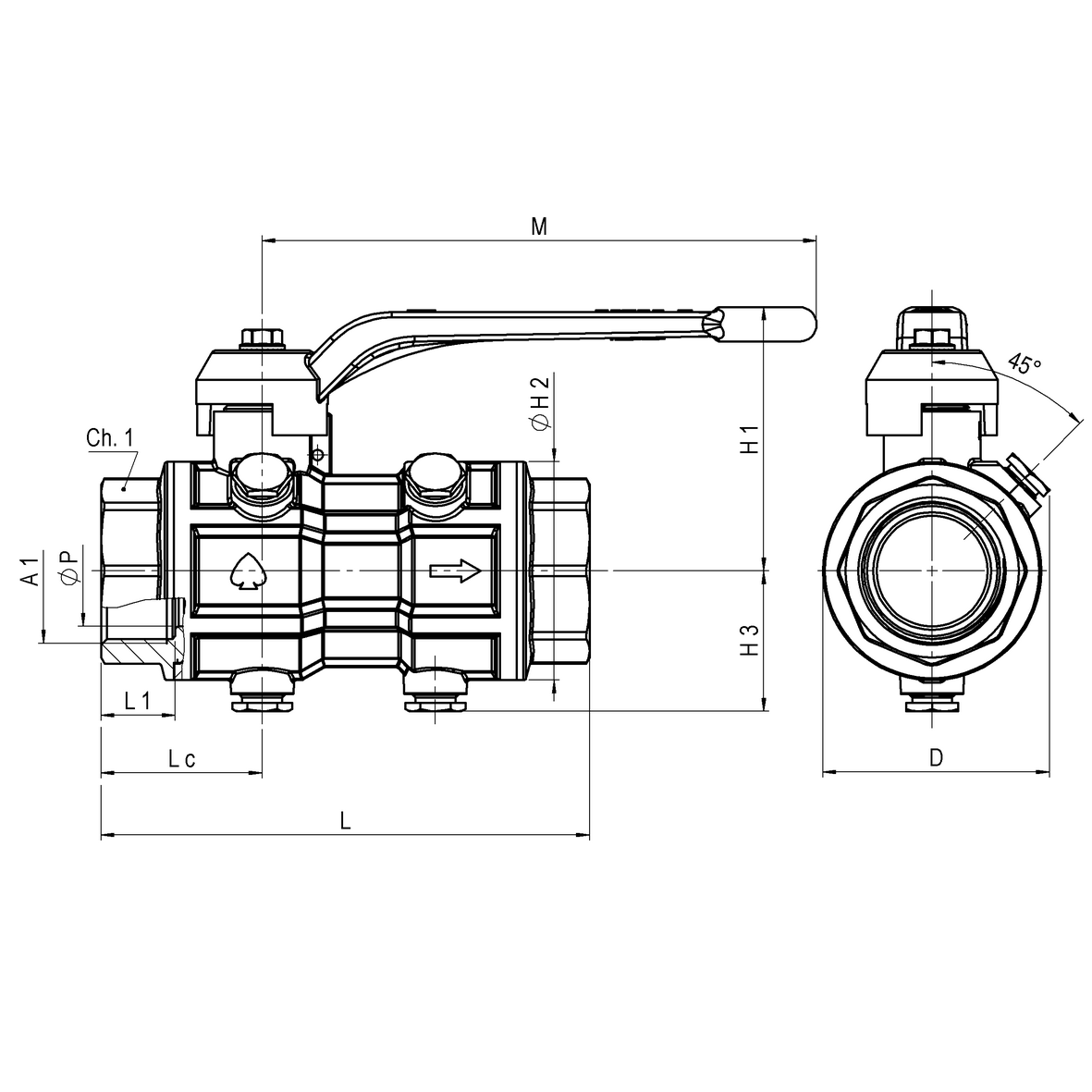

Water full-bore ball valve, heavy execution with in-line check valve and 4 drains with handle, FEMALE-FEMALE
Application WATER
VALVES
Ball valves with built-in check valve
Full
Ball valves with built-in check valve
Full
| Code | Kg | Box | Master Box | M | F | L | T1 | NA | Lb | ØB | L1 | L2 | Lmax | A1 | A2 | Combinazione | Q | Lmin | H1 | ØH2 | ØP | ØDf | i | Ød | nf | Lc | NA | Ch1 | Ch2 | Ch3 | PN-MOP | Kv | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | PCP | cod. | A3 | NA | NA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65188100125 | 1,82 | 1,82 | 16 | 160 | 0 | 141 | 0 | 0 | 0 | 0 | 21,4 | 0 | 0 | Rp1.1/4 | Rp1.1/4 | F-F | - | 0 | 76,2 | 63 | 32 | 0 | 0 | 0 | 0 | 46,5 | 0 | ott.50 | - | - | PN40 | 36 | 0 | 40,5 | 65,4 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | G1/4 | - | - | - | F generica | |
| 65188100150 | 2,76 | 2,76 | 12 | 160 | 0 | 168 | 0 | 0 | 0 | 0 | 21,4 | 0 | 0 | Rp1.1/2 | Rp1.1/2 | F-F | - | 0 | 83,2 | 77 | 40 | 0 | 0 | 0 | 0 | 52,5 | 0 | ott.56 | - | - | PN40 | 56 | 0 | 48 | 77,7 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | G1/4 | - | - | - | F generica | |
| 65188100200 | 4,72 | 4,72 | 4 | 230 | 0 | 200 | 0 | 0 | 0 | 0 | 25,7 | 0 | 0 | Rp2 | Rp2 | F-F | - | 0 | 113,5 | 93 | 50 | 0 | 0 | 0 | 0 | 62,5 | 0 | ott.70 | - | - | PN25 | 81 | 0 | 56 | 93 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | G1/4 | - | - | - | F generica |
